Builder SMOKED GARAGE
Contact [email protected]
Country Australia
Model Street 500
Style Tracker

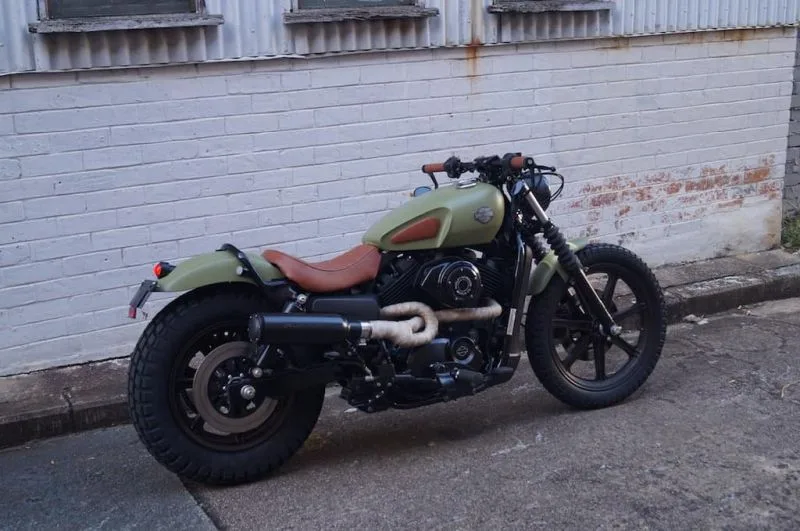

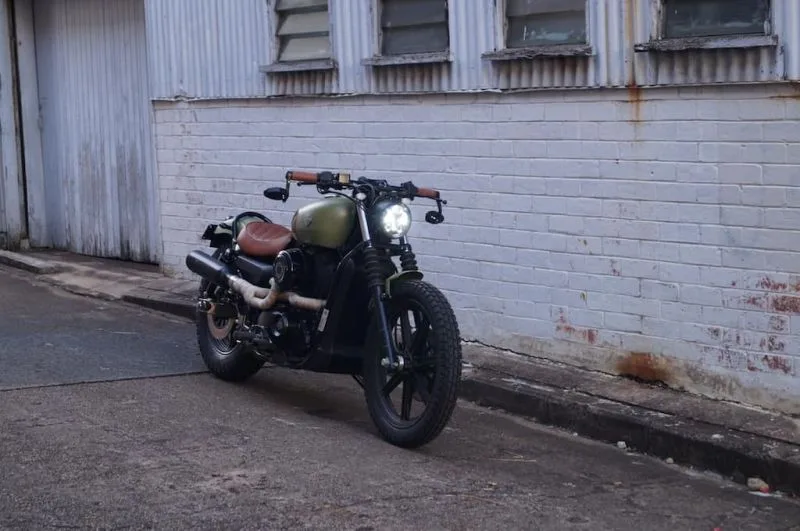

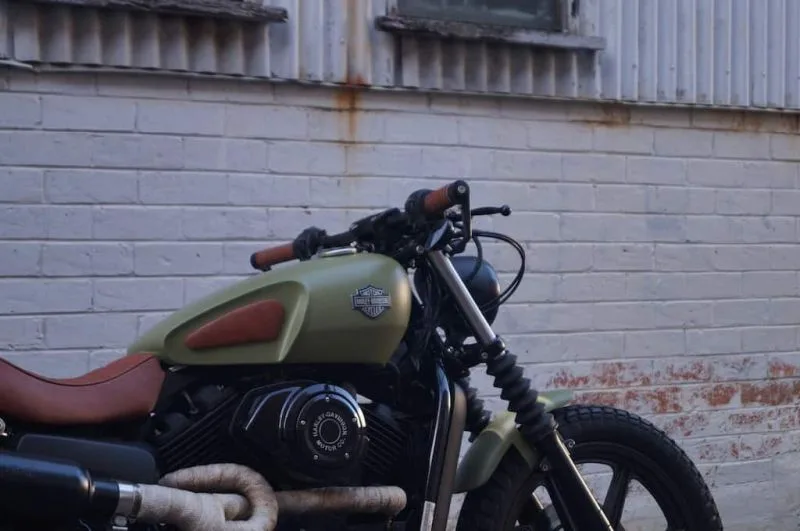

Look alive, Sergeant! This army themed bobber/tracker hybrid is locked and ready for duty – SIR!!
Built to tackle and tame the urban jungle, this unique custom took inspiration from the tough, rugged military bikes of decades gone by, with added modern flair. Part bobber, part tracker, all head turner.
It’s one thing to draw up a design on paper, it’s a whole other challenge actually making it a reality. A lot of fabrication and modification went into this build, with a few changes along the way. But that’s all part of the game, and why we do what we do!!
Street tracker parts
- Alloy wheels (19″ front/16″ rear) wrapped in AllState Dirtman tyres

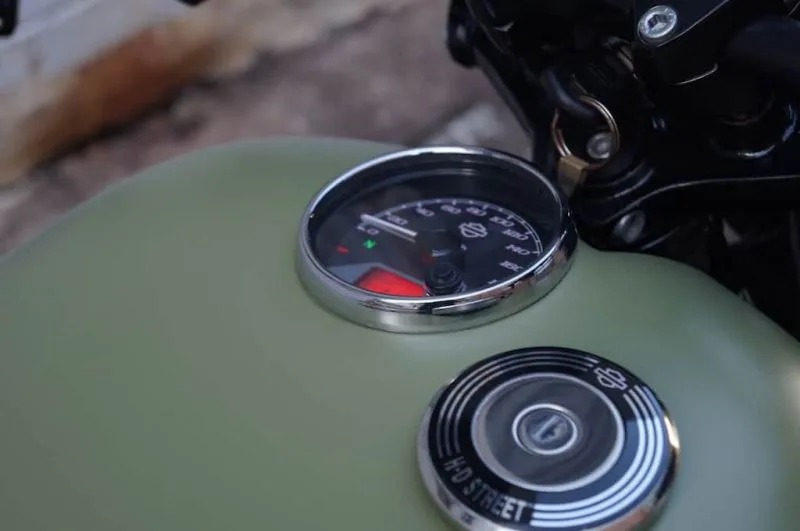

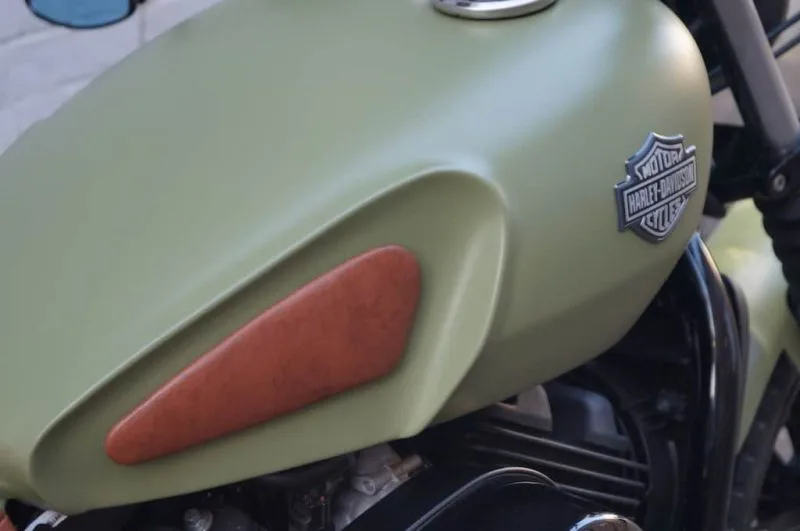

- Modified fuel tank – sunken gauge, scalloped sides
- Custom Army Green paintjob
- Hand made custom exhaust, SuperTrapp muffler, heatwrapped
- Hand made custom seat with matching knee pads
- Modified subframe
- Slammed shorty rear shocks
- Custom front & rear fenders

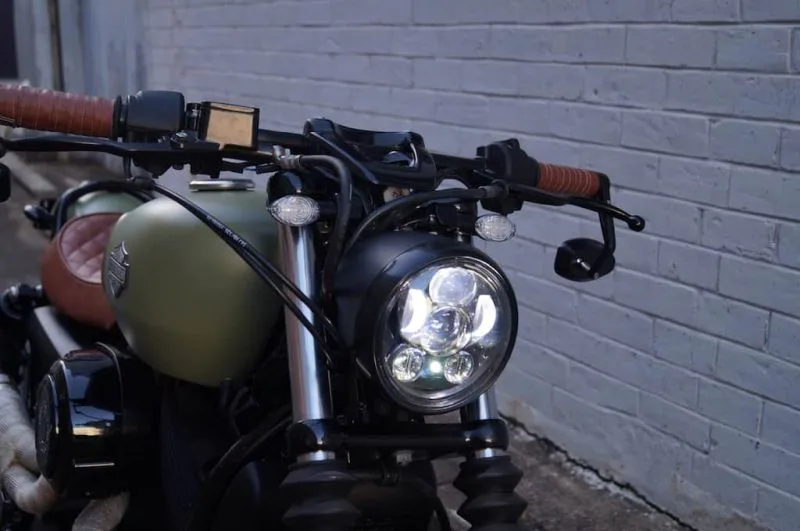

- HogLights 5.75″ LED headlight
- LED Indicators
- Vintage style taillight
- Drag bars, Biltwell grips, bar end mirrors
- Aftermarket Air cleaner/cover
✅ Street 500 specs
ENGINE
- ENGINE1 Liquid-cooled, Revolution X™ V-Twin
- BORE 2.72 in.
- STROKE 2.6 in.
- DISPLACEMENT 494 cc (30 cu in)
- COMPRESSION RATIO 10.5:1
- FUEL SYSTEM3 Electronic Sequential Port Fuel Injection (ESPFI)
- EXHAUST Black two into one
DIMENSIONS
- LENGTH 87.2 in.
- SEAT HEIGHT, LADEN7 25.7 in.
- SEAT HEIGHT, UNLADEN 28.3 in.
- GROUND CLEARANCE 5.7 in.
- RAKE (STEERING HEAD) (DEG) 32
- TRAIL 4.5 in.
- WHEELBASE 59.8 in.
- TIRES, FRONT SPECIFICATION 100/80-17
- TIRES, REAR SPECIFICATION 140/75 R15
- FUEL CAPACITY 3.5 gal.
- OIL CAPACITY (W/FILTER) 3.3 qt.
- WEIGHT, AS SHIPPED 492 lb.
- WEIGHT, IN RUNNING ORDER 514 lb.
PERFORMANCE
- ENGINE TORQUE TESTING METHOD J1349
- ENGINE TORQUE2 29.5 ft-lb
- ENGINE TORQUE (RPM) 3,750
- LEAN ANGLE, RIGHT (DEG.) 28.5
- LEAN ANGLE, LEFT (DEG.) 28.5
- FUEL ECONOMY TESTING METHOD Estimated City/Hwy
- FUEL ECONOMY5 64 mpg
DRIVETRAIN
- PRIMARY DRIVE Gear, 36/68 ratio
- GEAR RATIOS (OVERALL) 1ST 14.272
- GEAR RATIOS (OVERALL) 2ND 10.074
- GEAR RATIOS (OVERALL) 3RD 7.446
- GEAR RATIOS (OVERALL) 4TH 6.006
- GEAR RATIOS (OVERALL) 5TH 5.037
- GEAR RATIOS (OVERALL) 6TH 4.533
CHASSIS
- WHEELS, FRONT TYPE9 Black, 7-spoke Cast Aluminum
- WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
- BRAKES, CALIPER TYPE 2-piston floated front and rear
ELECTRIC
- LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
- GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
