Yamaha Bolt 950 Bobber “Dark Magic” by Smoked Garage

    Yamaha Bolt 950 Bobber Dark Magic by Smoked Garage


    Contact [email protected]

    Country Australia

    Model Bolt XVS950

    Style Bobber

    Dark Magic

    The Yamaha Bolt – the Japanese Sportster. As close to a Harley without being a Harley as you can get, really. Not as big as a 48 (950cc) but still plenty of pull to get you to where you wanna go. And they make for a pretty rad custom too.

    As well as some serious cosmetic mods, this blacked out tarmac-tearer is also fitted with a TBR air filter & full exhaust system, as well as a Dynojet Power Commander – she flies, and sounds like an absolute beast. Check out the vid below to hear her growl..

    Bolt Bobber parts

    • Bobber Conversion
    • Custom Front & Rear Fenders
    • Piggy back rear shocks
    • Custom hand made seat

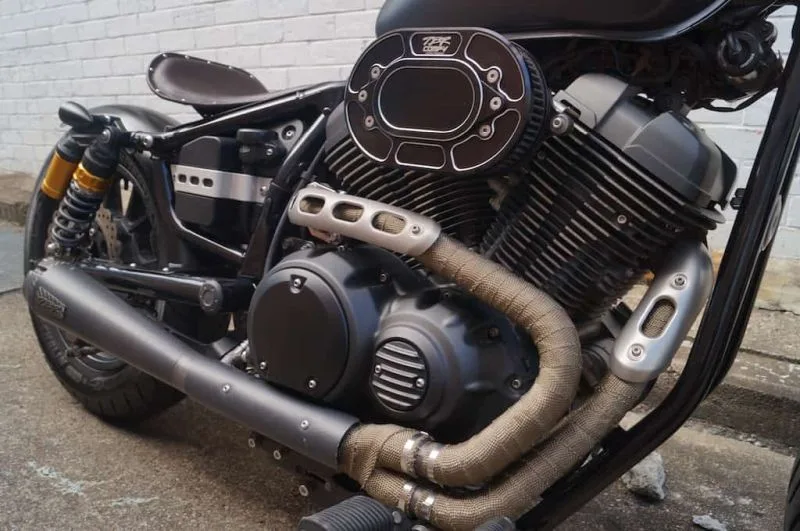

    • TBR Air Filter
    • TBR Exhaust, heat wrapped
    • DynoJet Power Commander
    • Modified tank with weld-in pop up cap

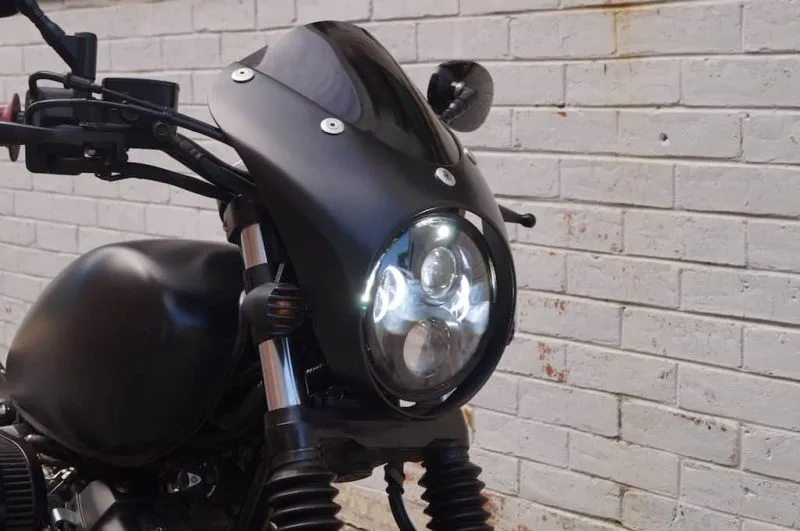

    • Bikini Fairing
    • LED Headlight by HogLights
    • 3-in-1 LED tail/brake/indicator
    • Bullet front indicators
    • Biltwell Grips
    • Fork Gaiters ear Bobber Conversion

    Yamaha Bolt 950 specs


    Engine Type58-cubic-inch (942cc) air-cooled SOHC V-twin; 4 valves

    Bore x Stroke85.0mm x 83.0mm

    Compression Ratio9.0:1

    Fuel DeliveryFuel injection

    IgnitionTCI: Transistor Controlled Ignition

    Transmission5-speed; multiplate wet clutch

    Final DriveBelt


    Suspension / Front Telescopic fork, 4.7-in travel

    Suspension / RearDual piggyback shocks, 2.8-in travel

    Brakes / FrontWave-type disc, 298mm

    Brakes / RearWave-type disc, 298mm

    Tires / Front100/90-19

    Tires / Rear150/80-16


    L x W x H90.2 in x 37.2 in x 44.1 in

    Seat Height27.2 in

    Wheelbase61.8 in

    Rake (Caster Angle)29.0°

    Trail5.1 in

    Ground Clearance5.1 in

    Fuel Capacity3.4 gal

    Fuel Economy**51 mpg

    Wet Weight***542 lb
