Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Cafe Racer

Magneto

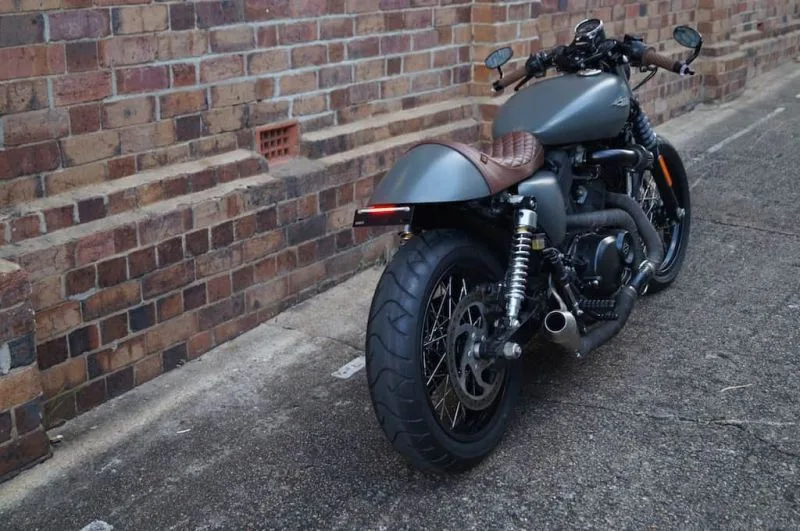

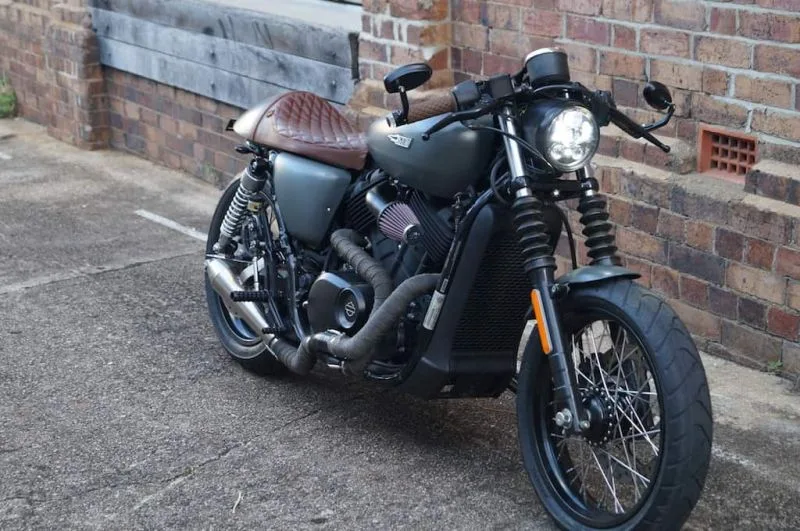

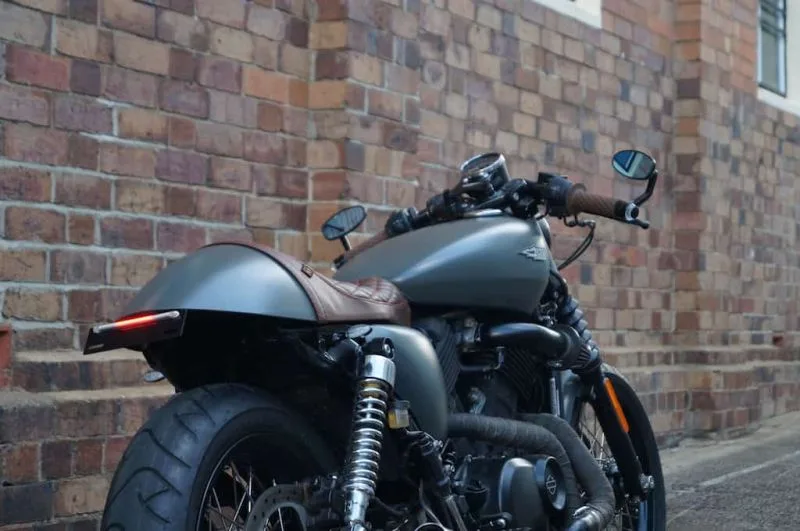

We’ve built nearly a dozen of these Street 500’s but they’ve all been in a bobber style – so it was a refreshing change to be able to sink our teeth into something different. This wicked little cafe racer was designed and built for a client in Melbourne, he had a pretty clear vision in mind, and suffice to say our boys have absolutely nailed it.

Keep an eye out for it burning around Melbourne’s streets hitting up cafe after cafe.

Street Cafe Racer parts

  • 18″ thin spoked wheels (Black Bike Wheels, USA)

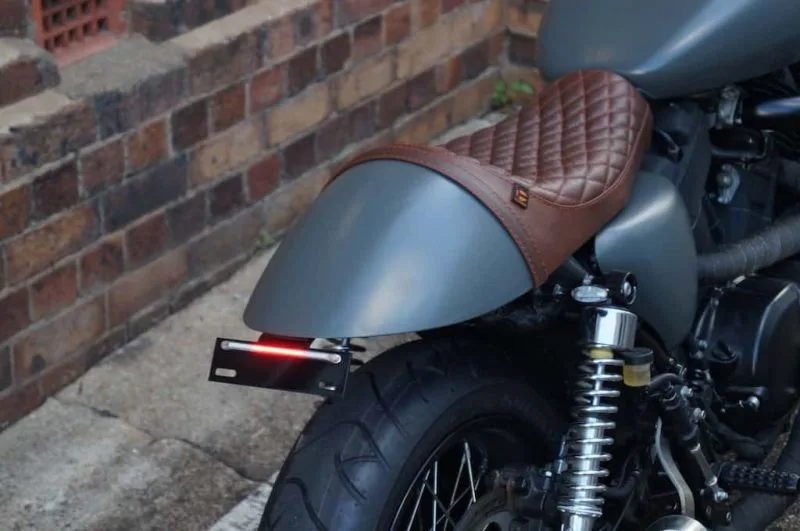

  • Custom seat & cafe racer cowl (Tuffside, USA)
  • Subframe modfications

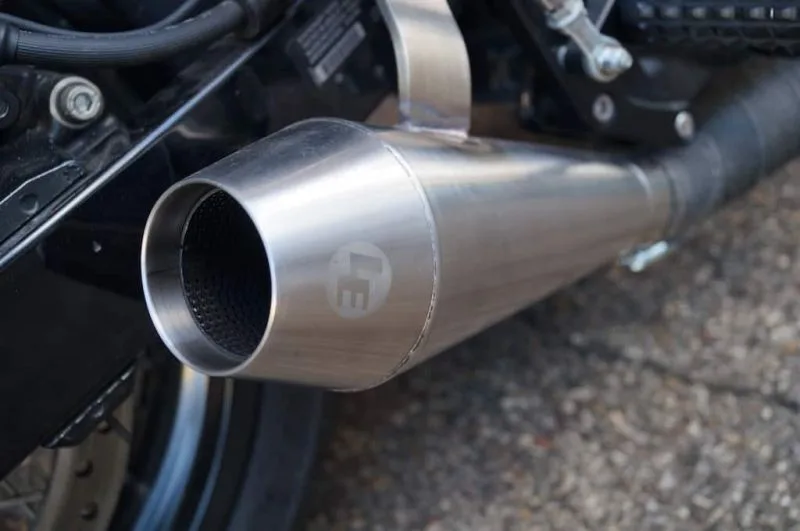

  • Custom exhaust with Lossa Reverse Cone muffler
  • Rearset foot controls
  • Clip on bars
  • Bar end LED indicators, mirrors
  • LED taillight/indicators
  • 5 & 3/4″ LED Hoglights headlight
  • Custom made side panels
  • Custom matte grey paint
  • Modified air intake with K&N pod
  • Custom speedo mount

Street 500 specs

ENGINE

  • ENGINE1 Liquid-cooled, Revolution X™ V-Twin
  • BORE 2.72 in.
  • STROKE 2.6 in.
  • DISPLACEMENT 494 cc (30 cu in)
  • COMPRESSION RATIO 10.5:1
  • FUEL SYSTEM3 Electronic Sequential Port Fuel Injection (ESPFI)
  • EXHAUST Black two into one

DIMENSIONS

  • LENGTH 87.2 in.
  • SEAT HEIGHT, LADEN7 25.7 in.
  • SEAT HEIGHT, UNLADEN 28.3 in.
  • GROUND CLEARANCE 5.7 in.
  • RAKE (STEERING HEAD) (DEG) 32
  • TRAIL 4.5 in.
  • WHEELBASE 59.8 in.
  • TIRES, FRONT SPECIFICATION 100/80-17
  • TIRES, REAR SPECIFICATION 140/75 R15
  • FUEL CAPACITY 3.5 gal.
  • OIL CAPACITY (W/FILTER) 3.3 qt.
  • WEIGHT, AS SHIPPED 492 lb.
  • WEIGHT, IN RUNNING ORDER 514 lb.

PERFORMANCE

  • ENGINE TORQUE TESTING METHOD J1349
  • ENGINE TORQUE2 29.5 ft-lb
  • ENGINE TORQUE (RPM) 3,750
  • LEAN ANGLE, RIGHT (DEG.) 28.5
  • LEAN ANGLE, LEFT (DEG.) 28.5
  • FUEL ECONOMY TESTING METHOD Estimated City/Hwy
  • FUEL ECONOMY5 64 mpg

DRIVETRAIN

  • PRIMARY DRIVE Gear, 36/68 ratio
  • GEAR RATIOS (OVERALL) 1ST 14.272
  • GEAR RATIOS (OVERALL) 2ND 10.074
  • GEAR RATIOS (OVERALL) 3RD 7.446
  • GEAR RATIOS (OVERALL) 4TH 6.006
  • GEAR RATIOS (OVERALL) 5TH 5.037
  • GEAR RATIOS (OVERALL) 6TH 4.533

CHASSIS

  • WHEELS, FRONT TYPE9 Black, 7-spoke Cast Aluminum
  • WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
  • BRAKES, CALIPER TYPE 2-piston floated front and rear

ELECTRIC

  • LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
  • GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
