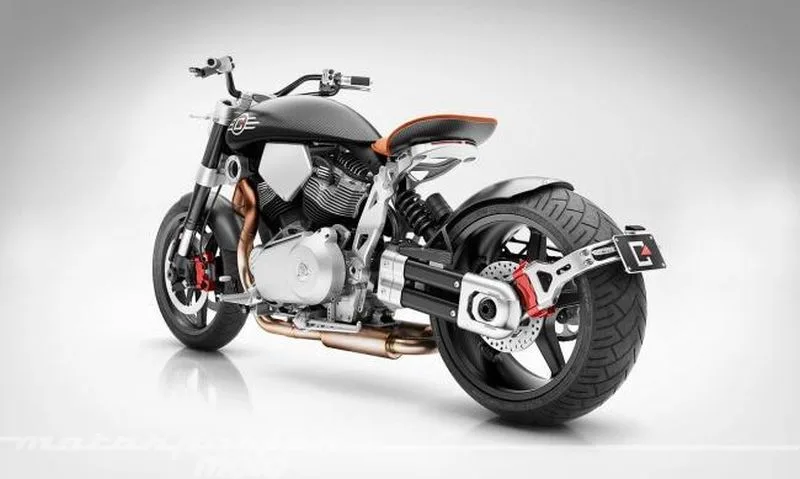

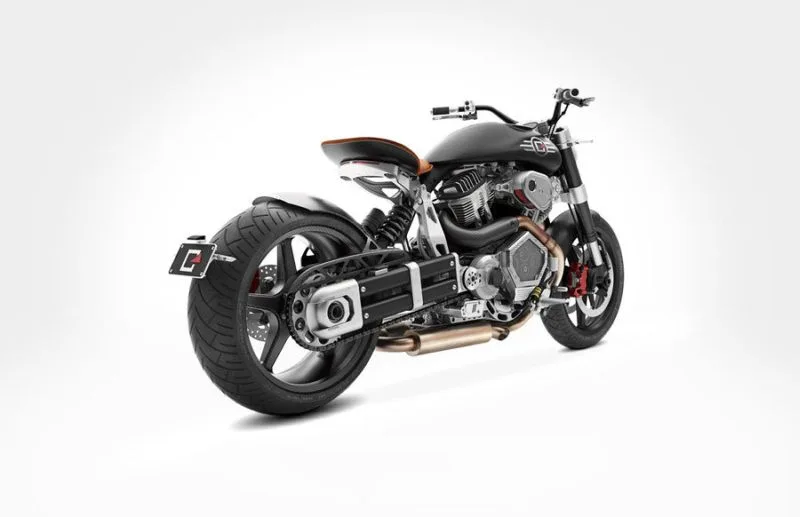

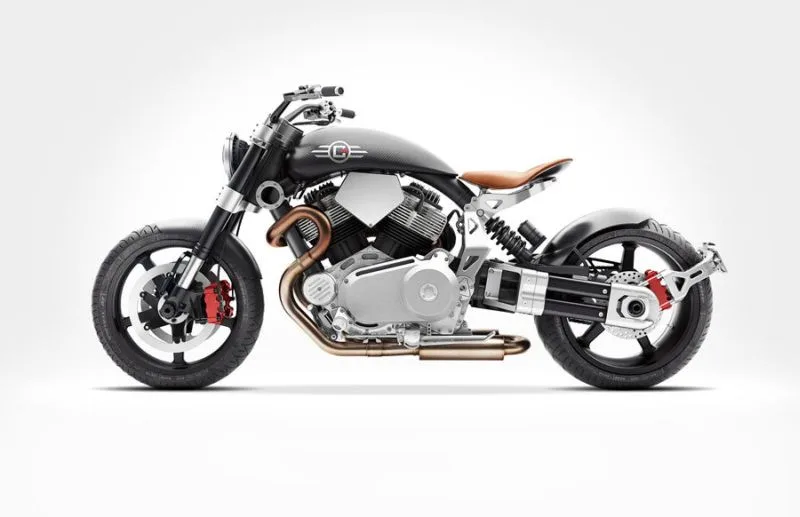

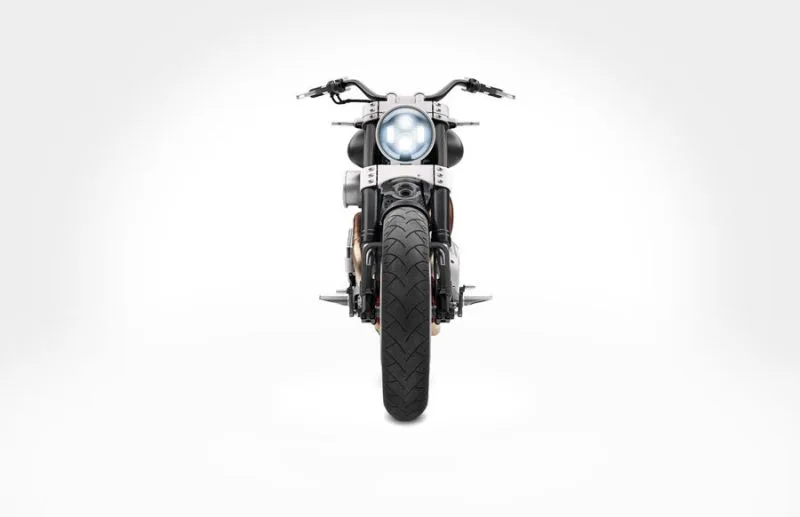

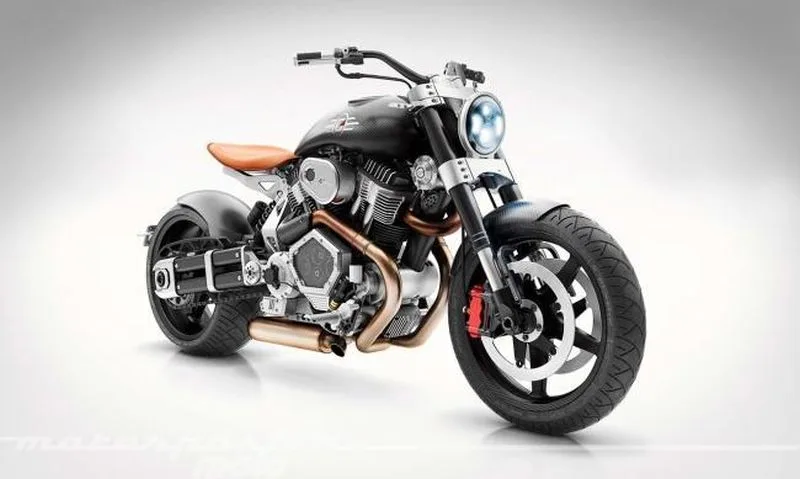

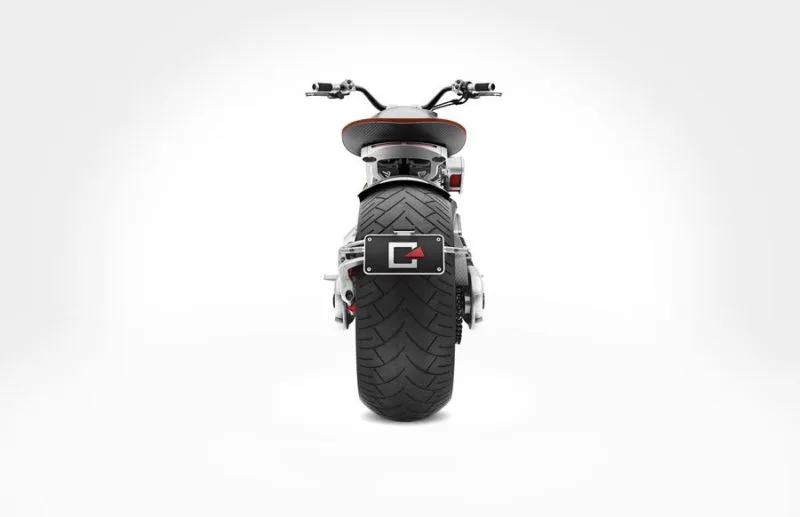

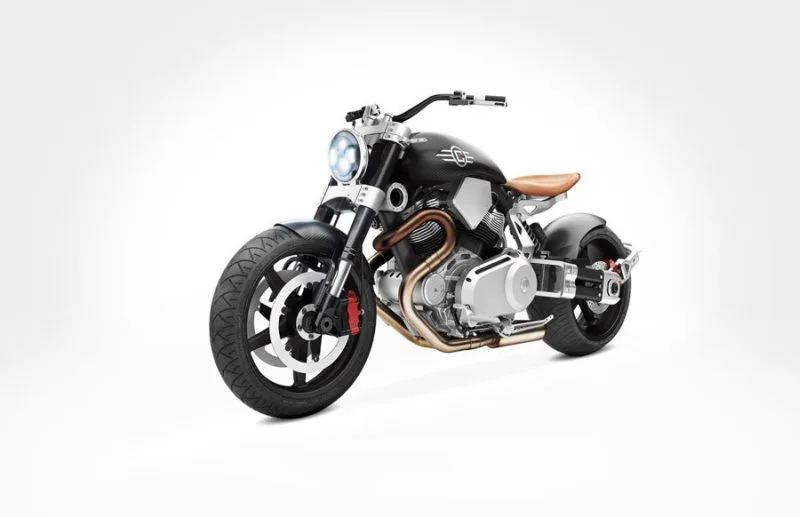

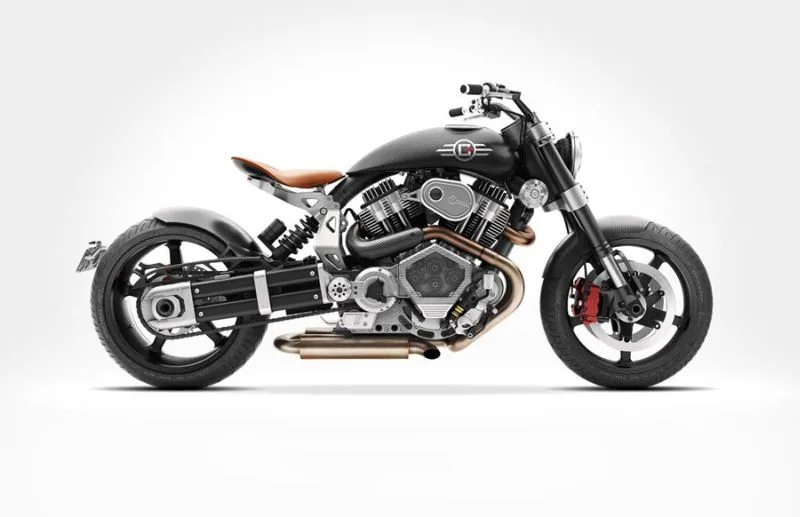

Hellcat Speedster Conceptbike by Combat motors

Hellcat Speedster Conceptbike by Combat motors

    Builder COMBAT MOTORS

    Contact [email protected]

    Country United States

    Model Hellcat Speedster

    Style Conceptbike

    2620 6th Ave South Birmingham, AL 35233

    Hellcat Speedster parts

    Compromise Elsewhere

    Redesigned from front to back, the all-new X132 Hellcat Speedster is the result of an uncompromised design and craftsmanship approach. Drawing on the first and second generation Hellcats’ distinctive American drag race architecture, the new Hellcat Speedster advances that architecture with superior performance, reliability, ergonomics and quality.

    Power, Strength & Beauty

    The centerpiece of this uncompromised approach is the Hellcat’s redesigned billet aluminum case. Instead of the usual casting method, the case is machined from two solid blocks of billet 6061 aircraft-grade aluminum. This new case unites the massive 132 cubic inch (2,163cc) V-twin engine with our patented drag racing powertrain into a singularity. This material specification, mechanical design and craft methodology is simply the best approach for maximizing quality and performance, while preserving heirloom permanence. Simply put, the X132 Hellcat Speedster is the perfect fusion of power, strength and beauty.

    Handmade In America

    From fabrication to final assembly, each X132 Hellcat Speedster is handmade by a small team of American master craftsmen. Whether you are hammering the open road or just relaxing in your garage, the vital essence that these men imbue into each machine is undeniably present. Their care, intentionality and unfettered passion give each machine character beyond the sum of its parts. ENGINEX132 56° Fuel Injected V-Twin
    132 Cubic Inches (2,163 cc)
    4.4” Bore x 4.4” Stroke
    One-Piece Forged Crank
    Journal Bearing Design
    Single Side-Draft Intake with 58mm Throttle Bodies
    Performance Calibrated Engine Control Unit

    POWER

    Horsepower: 121 BHP
    Torque: 140 Foot Pounds

    UNITITZED CASE

    Proprietary X-Vault Unitized Design
    CNC Machined 6061 Aircraft-Grade Billet Aluminum

    CHASSIS

    3” 120 Wall Hard Steel Backbone
    3” 120 Wall Hard Steel Down Tube
    Hand Tig Welded Fabrication

    TRANSMISSION

    5-Speed Drag Racing Transmission

    SUSPENSION

    Front:
    Custom WP 48mm Fork
    Adjustable Rebound and Compression
    Rear:
    Custom Center-mounted Race Tech Coil-Over-Shock
    Adjustable Rebound and Compression

    BRAKES

    Front:
    Dual Beringer 4-Piston Machined Monobloc AEROTEC Radial Calipers
    Dual Beringer AERONAL Floating Ductile Iron Rotors
    Rear:
    Single Beringer 4-Piston Machined Monobloc AEROTEC Radial Caliper
    Cross-Drilled Brembo Stainless Steel Rotor

    WHEELS

    BlackStone Tek Carbon Fiber with Proprietary Hubs
    Front: 3.5” x 18”
    Rear: 8” x 18”

    TYRES

    Front: Metzeler ME 880 Marathon 120/70 ZR18
    Rear: Metzeler ME 880 Marathon 240/40 VR18

    LIGHTING

    7” Round LED Headlamp
    Integrated High Beam, Low Beam, Running Lights
    LED Tail Lamp
    Rizoma Graffio LED Front & Rear Turn Signals

    FENDERS

    Proprietary Design
    Carbon Fiber Construction

    FUEL CELL

    Proprietary Confederate Design
    One-Piece Seamless Handmade Construction
    Heat, Chemical & Impact Resistant Aerospace Composite
    Matte Clear Coat Finish Over Carbon Fiber
    3 Gallon Capacity

    INSTRUMENTATION

    Motogadget Precision Analogue Tachometer
    Digital Speed & Status

    ERGONOMICS

    Classic American Riding Position
    Premium Solo Tractor-Style Leather Saddle
    Forward Foot Controls
    Classic Swept Handlebar
    Seat Height: 28.5”

    GEOMETRY & WEIGHT

    Wheelbase: 63.5”
    Rake: 29°
    Trail: 4.185”
    Weight: 500 lbs
