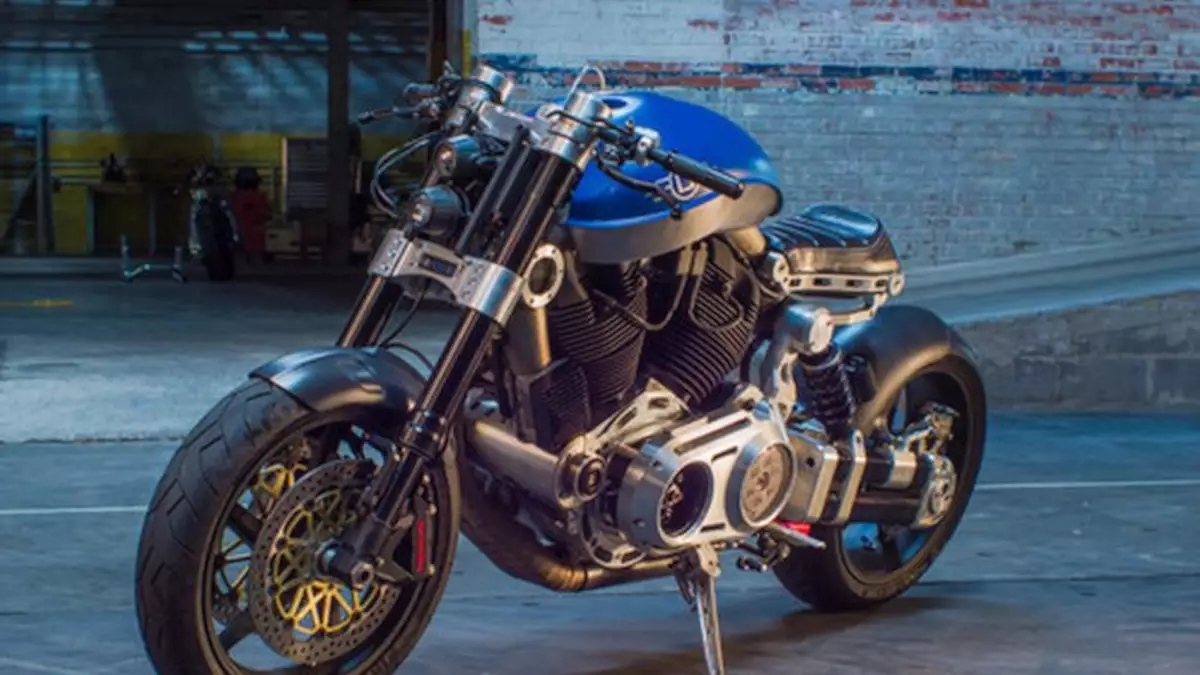

X-132 Hellcat Combat

CONCEPTBIKE

2620 6th Ave South Birmingham, AL 35233

Combat parts:

  • ENGINE POWER Torque: 160 Foot Pounds; Horsepower: 160 BHP

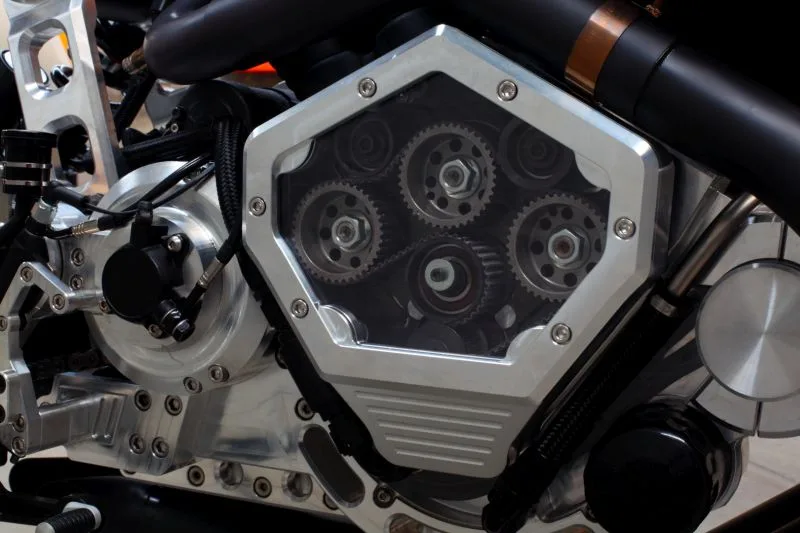

  • UNITIZED CASE Combat Optimized Machined 6061 Aircraft-Grade Aluminum Case
  • TRANSMISSION Combat Optimized 5-Speed with Land Speed Racer Gearing; Patented Output
    Shaft Bearing Support System
  • BRAKES Front: Dual Beringer 4 Piston AEROTEC Radial Calipers; Dual Beringer
    AERONAL Floating Ductile Iron Rotors; Rear: Single 2 Piston Brembo
    Monobloc Caliper; Cross-Drilled Brembo Stainless Steel Disc
  • LIGHTING 5.75” Round LED Headlamp; Integrated High Beam, Low Beam, Running
    Lights, LED Tail Lamp, Brake, Running Lights, Blinker System

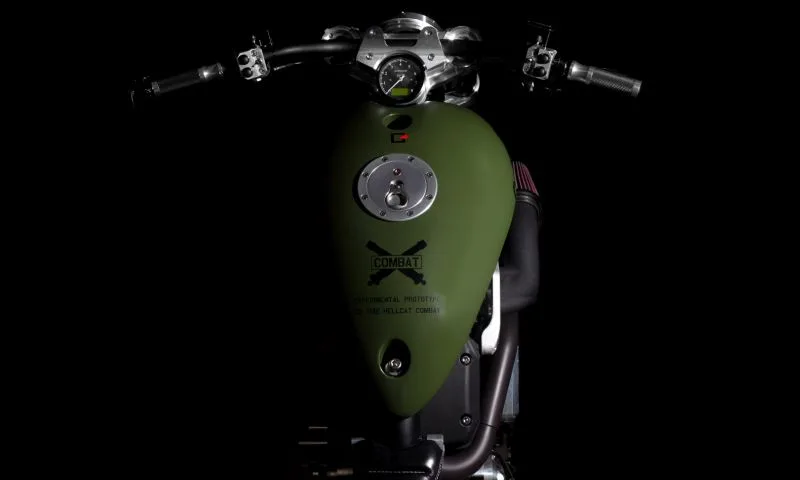

  • FUEL CELL Confederate Proprietary Design; Deep-drawn Steel; 4.75 Gallon Capacity;Painted Combat Matte Green with personalized graphics

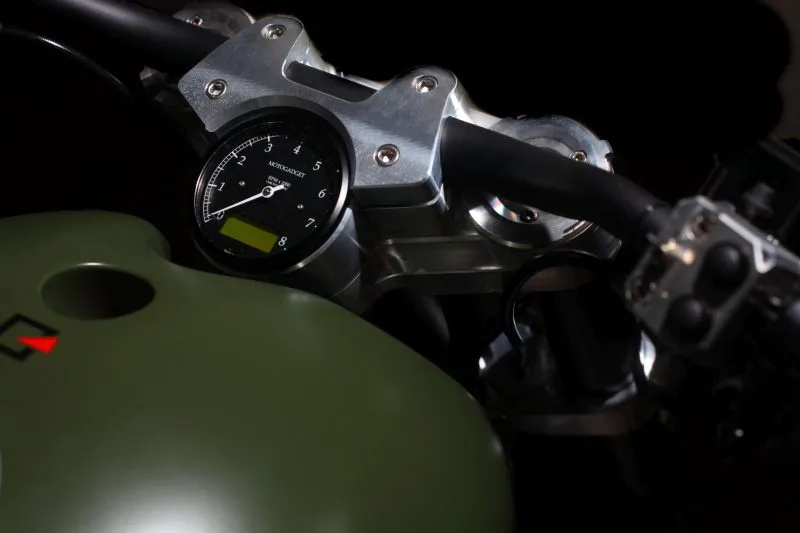

  • INSTRUMENTATION Motogadget Precision Analogue Tachometer; Digital Speed, Status
  • CHASSIS 3” 120 Wall Hard Steel Backbone; 3” 120 Wall Hard Steel Down Tube; Hand Tig
    Welded Fabrication

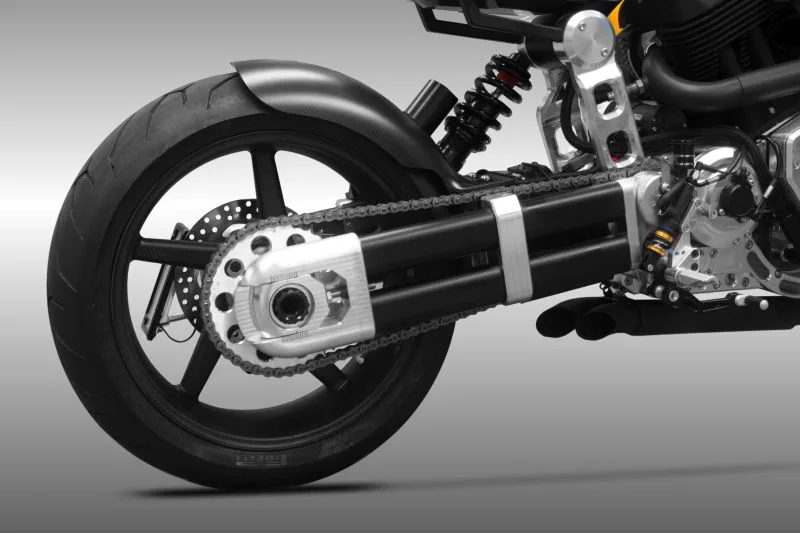

  • SUSPENSION Front: Custom WP 48mm Fork; Adjustable Rebound and Compression; Rear:
    Custom Race Tech Coil-Over-Shock; Adjustable Rebound and Compression
  • WHEELS BlackStone Tek Carbon Fiber; Front: 3.5” x 17”; Rear: 6” x 17”
  • TIRES Front: Pirelli Diablo Rosso 120/70 ZR; Rear: Pirelli Diablo Rosso 190/55 ZR
  • GEOMETRY Wheelbase: 66.5”; Rake: 29°; Trail: 3.9”
  • TAILORED ERGONOMICS Controls: Mid-Rear; Handlebar: 70mm Rise, 55mm Sweep; Seating: Solo Combat
    Reverse Hide Racing Saddle; Seat Height: 28”
