Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Tracker

Look alive, Sergeant! This army themed bobber/tracker hybrid is locked and ready for duty – SIR!!

Built to tackle and tame the urban jungle, this unique custom took inspiration from the tough, rugged military bikes of decades gone by, with added modern flair. Part bobber, part tracker, all head turner.

It’s one thing to draw up a design on paper, it’s a whole other challenge actually making it a reality. A lot of fabrication and modification went into this build, with a few changes along the way. But that’s all part of the game, and why we do what we do!!

Street tracker parts

✅ Street 500 specs

ENGINE

• ENGINE¹ Liquid-cooled, Revolution X™ V-Twin
• BORE 2.72 in.
• STROKE 2.6 in.
• DISPLACEMENT 494 cc (30 cu in)
• COMPRESSION RATIO 10.5:1
• FUEL SYSTEM³ Electronic Sequential Port Fuel Injection (ESPFI)
• EXHAUST Black two into one

DIMENSIONS

• LENGTH 87.2 in.
• SEAT HEIGHT, LADEN⁷ 25.7 in.
• SEAT HEIGHT, UNLADEN 28.3 in.
• GROUND CLEARANCE 5.7 in.
• RAKE (STEERING HEAD) (DEG) 32
• TRAIL 4.5 in.
• WHEELBASE 59.8 in.
• TIRES, FRONT SPECIFICATION 100/80-17
• TIRES, REAR SPECIFICATION 140/75 R15
• FUEL CAPACITY 3.5 gal.
• OIL CAPACITY (W/FILTER) 3.3 qt.
• WEIGHT, AS SHIPPED 492 lb.
• WEIGHT, IN RUNNING ORDER 514 lb.

PERFORMANCE

• ENGINE TORQUE TESTING METHOD J1349
• ENGINE TORQUE² 29.5 ft-lb
• ENGINE TORQUE (RPM) 3,750
• LEAN ANGLE, RIGHT (DEG.) 28.5
• LEAN ANGLE, LEFT (DEG.) 28.5
• FUEL ECONOMY TESTING METHOD Estimated City/Hwy
• FUEL ECONOMY⁵ 64 mpg

DRIVETRAIN

• PRIMARY DRIVE Gear, 36/68 ratio
• GEAR RATIOS (OVERALL) 1ST 14.272
• GEAR RATIOS (OVERALL) 2ND 10.074
• GEAR RATIOS (OVERALL) 3RD 7.446
• GEAR RATIOS (OVERALL) 4TH 6.006
• GEAR RATIOS (OVERALL) 5TH 5.037
• GEAR RATIOS (OVERALL) 6TH 4.533

CHASSIS

• WHEELS, FRONT TYPE⁹ Black, 7-spoke Cast Aluminum
• WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
• BRAKES, CALIPER TYPE 2-piston floated front and rear

ELECTRIC

• LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS⁸ High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
• GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

La entrada Harley Davidson Street 500 tracker “The Admiral” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Bobber

“What is it? Holy crap, it’s a Street 500! You actually managed to make one look GOOD!”

How many times have we heard this phrase verbatim since we completed the build? Countless. This is Australia’s (and possibly the World’s) first rigid frame Street 500. Who needs paint when you can make a bare metal tank look this good? And when you accentuate it with custom copper-plated features? Magic. This little bobber turns heads and draws crowds every place she’s rumbles up to. True old-skool cool.

“Love is that feeling you get when you like something as much as your motorcycle”

-HUNTER S. THOMPSON

Street Bobber Parts and specs

La entrada Harley-Davidson Street Bobber “The Copperhead” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Bobber

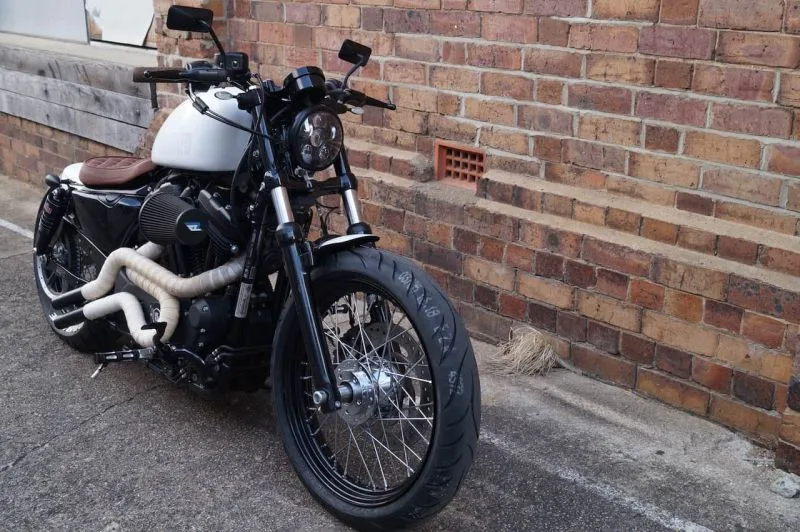

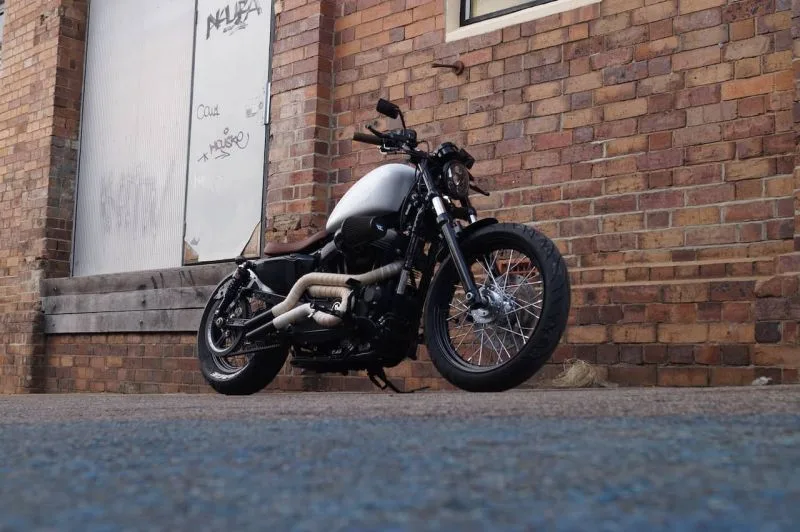

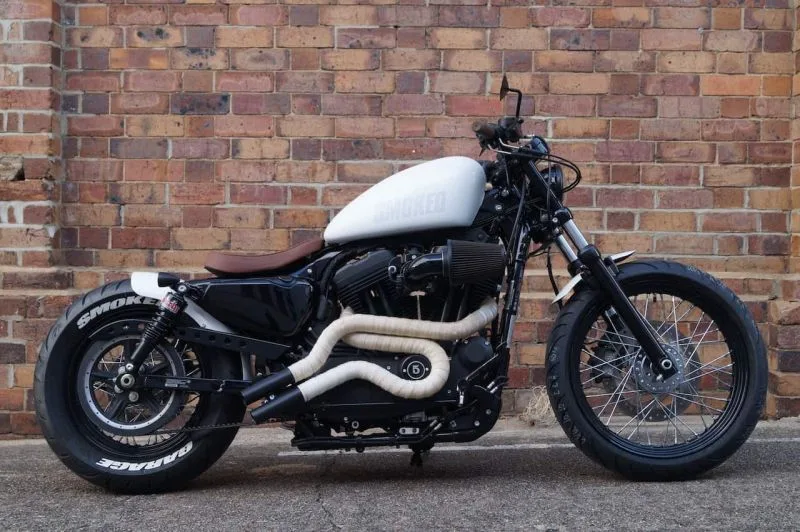

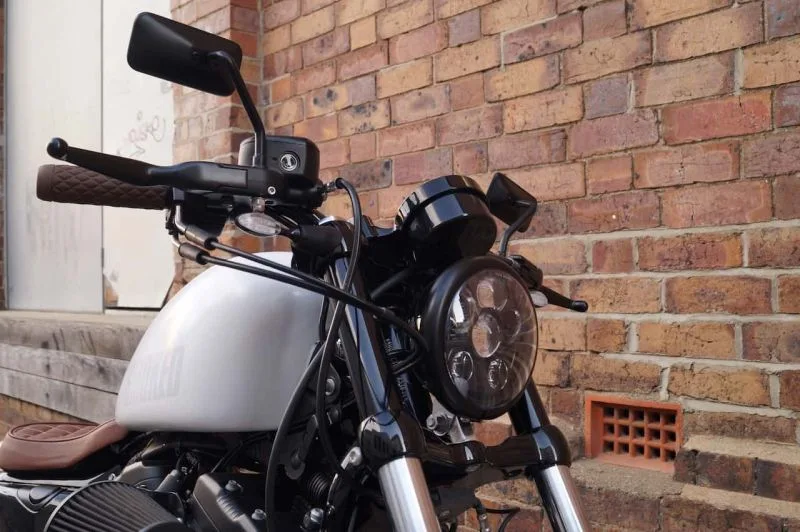

Coffe & Cream

If you’re anything like me, you need that shot of coffee to get you fired up first thing in the morning. Alternatively, you might opt to instead throw your leg straight over this beast to get your heart going and fired up for the day.

Black may be the new black, but white is just right. Paired with a dark tan seat and grips, the subtle combo is a fresh break from the usual blacked out 48s you’ll see cruising around out there. With plenty of other custom mods, this 48 is a classy head-turner you’d be happy to take home to meet mum.

Font www.smokedgarage.com.au

La entrada Harley Davidson 48 Sportster Boober “Coffee & Cream” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Bobber

Toxic Avenger

Like some sort of deranged swamp beast dragged from the murky depths to fight dastardly criminals and protect everyday citizens like you and me – the Toxic Avenger is nothing short of Beastly. The terrifying growl it emits when you pull the throttle you’ll be forgiven for mistaking it for a bike much bigger than a 500.

The one-of-a-kind handmade exhaust was meticulously pieced together from individually laser cut sections of stainless pipe, and gives off a freakin incredible growl. The frame was chopped in half and rebuilt as a hardtail (certified by a licensed engineer). We took a King Sportster tank, chopped it in half and widened it, modifying it to fit the frame. The rusted out patina finish coated in a high gloss gives it a truly unique look.

Bobber parts

• 18″ thin spoked wheels (Black Bike Wheels, USA)
• Custom seat & cafe racer cowl (Tuffside, USA)
• Subframe modfications
• Custom exhaust with Lossa Reverse Cone muffler
• Rearset foot controls
• Clip on bars
• Bar end LED indicators, mirrors
• LED taillight/indicators
• 5 & 3/4″ LED Hoglights headlight
• Custom made side panels
• Custom matte grey paint

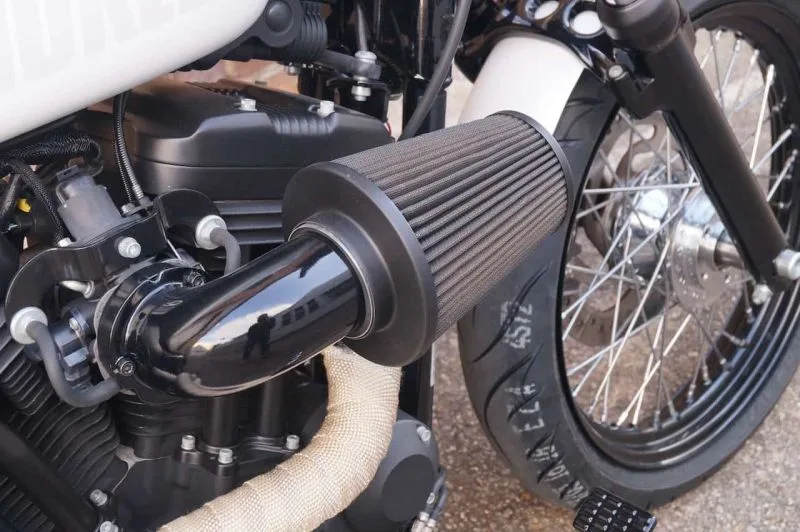

• Modified air intake with K&N pod
• Custom speedo mount

Street 500 specs

ENGINE

• ENGINE¹ Liquid-cooled, Revolution X™ V-Twin
• BORE 2.72 in.
• STROKE 2.6 in.
• DISPLACEMENT 494 cc (30 cu in)
• COMPRESSION RATIO 10.5:1
• FUEL SYSTEM³ Electronic Sequential Port Fuel Injection (ESPFI)
• EXHAUST Black two into one

DIMENSIONS

• LENGTH 87.2 in.
• SEAT HEIGHT, LADEN⁷ 25.7 in.
• SEAT HEIGHT, UNLADEN 28.3 in.
• GROUND CLEARANCE 5.7 in.
• RAKE (STEERING HEAD) (DEG) 32
• TRAIL 4.5 in.
• WHEELBASE 59.8 in.
• TIRES, FRONT SPECIFICATION 100/80-17
• TIRES, REAR SPECIFICATION 140/75 R15
• FUEL CAPACITY 3.5 gal.
• OIL CAPACITY (W/FILTER) 3.3 qt.
• WEIGHT, AS SHIPPED 492 lb.
• WEIGHT, IN RUNNING ORDER 514 lb.

PERFORMANCE

• ENGINE TORQUE TESTING METHOD J1349
• ENGINE TORQUE² 29.5 ft-lb
• ENGINE TORQUE (RPM) 3,750
• LEAN ANGLE, RIGHT (DEG.) 28.5
• LEAN ANGLE, LEFT (DEG.) 28.5
• FUEL ECONOMY TESTING METHOD Estimated City/Hwy
• FUEL ECONOMY⁵ 64 mpg

DRIVETRAIN

• PRIMARY DRIVE Gear, 36/68 ratio
• GEAR RATIOS (OVERALL) 1ST 14.272
• GEAR RATIOS (OVERALL) 2ND 10.074
• GEAR RATIOS (OVERALL) 3RD 7.446
• GEAR RATIOS (OVERALL) 4TH 6.006
• GEAR RATIOS (OVERALL) 5TH 5.037
• GEAR RATIOS (OVERALL) 6TH 4.533

CHASSIS

• WHEELS, FRONT TYPE⁹ Black, 7-spoke Cast Aluminum
• WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
• BRAKES, CALIPER TYPE 2-piston floated front and rear

ELECTRIC

• LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS⁸ High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
• GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

La entrada Harley-Davidson Bobber Street 500 “Toxic Avenger” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Bolt XVS950

Style Bobber

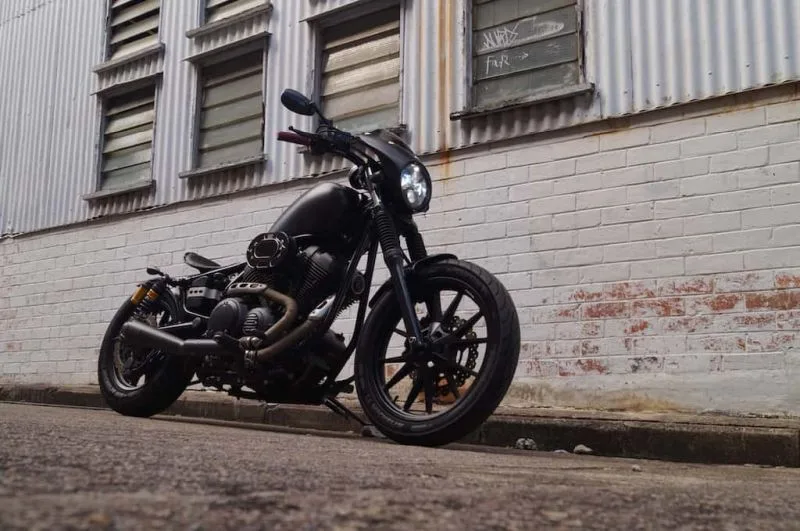

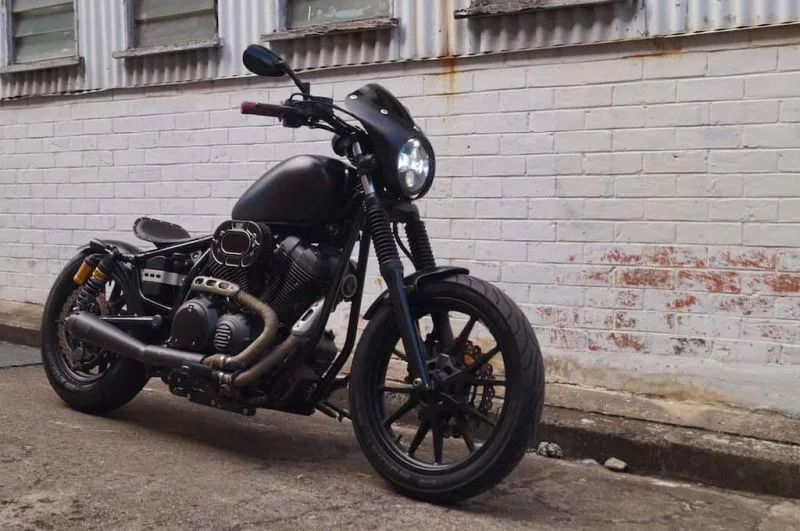

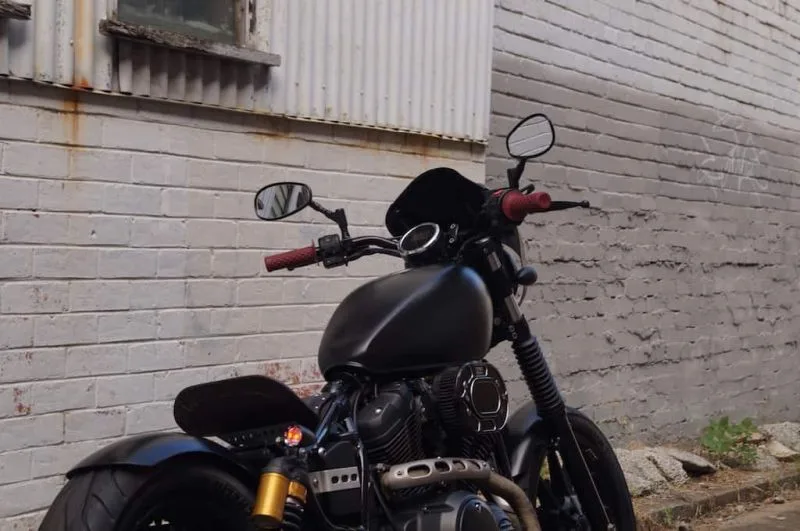

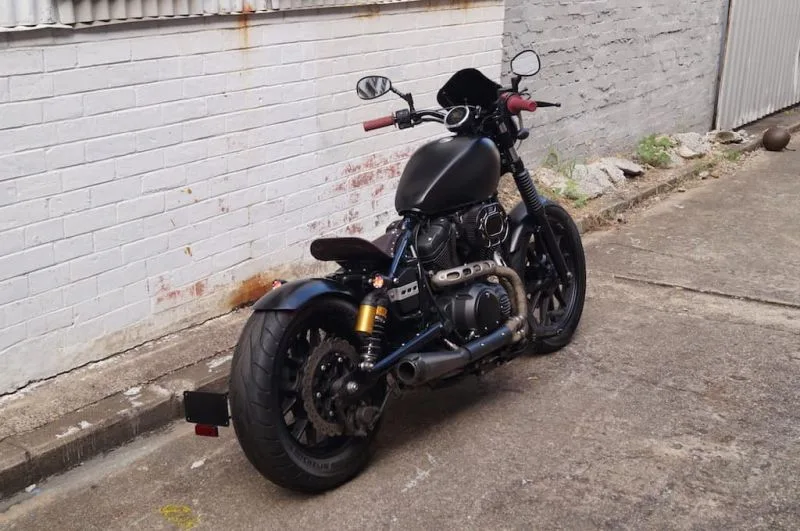

Dark Magic

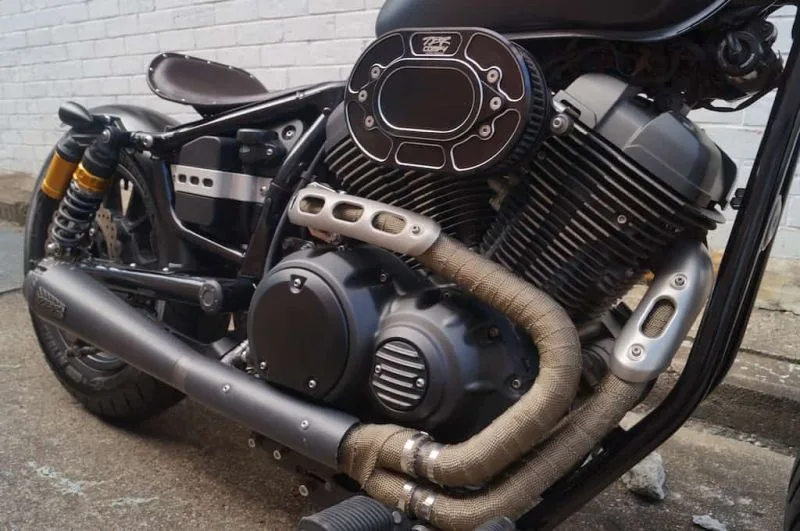

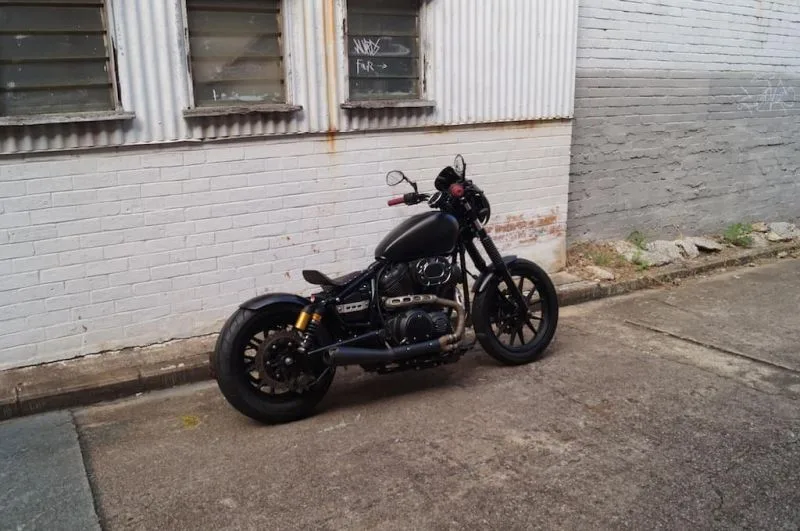

The Yamaha Bolt – the Japanese Sportster. As close to a Harley without being a Harley as you can get, really. Not as big as a 48 (950cc) but still plenty of pull to get you to where you wanna go. And they make for a pretty rad custom too.

As well as some serious cosmetic mods, this blacked out tarmac-tearer is also fitted with a TBR air filter & full exhaust system, as well as a Dynojet Power Commander – she flies, and sounds like an absolute beast. Check out the vid below to hear her growl..

Bolt Bobber parts

• Bobber Conversion
• Custom Front & Rear Fenders
• Piggy back rear shocks
• Custom hand made seat

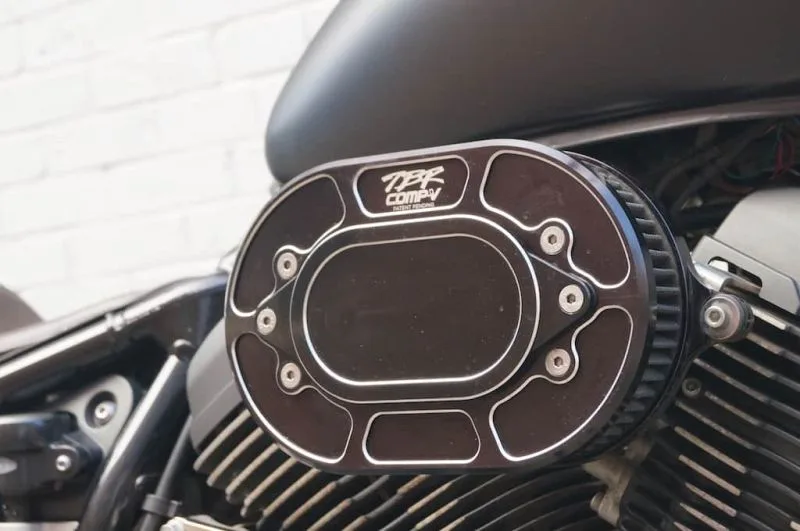

• TBR Air Filter
• TBR Exhaust, heat wrapped
• DynoJet Power Commander

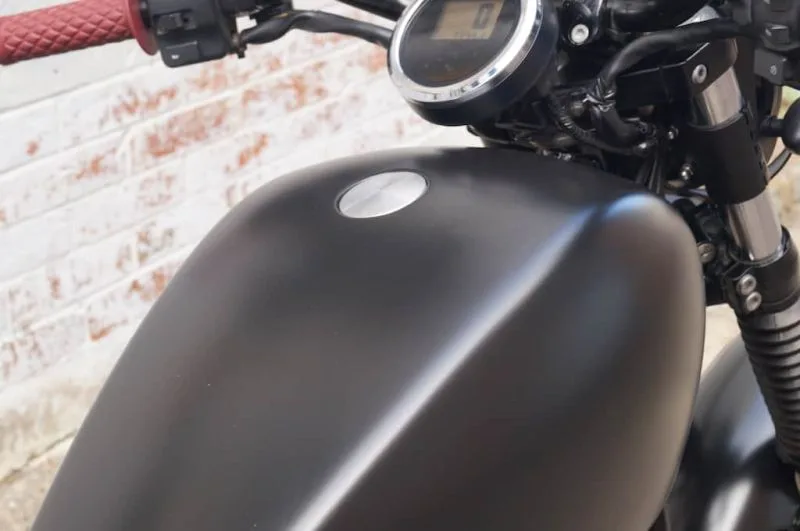

• Modified tank with weld-in pop up cap

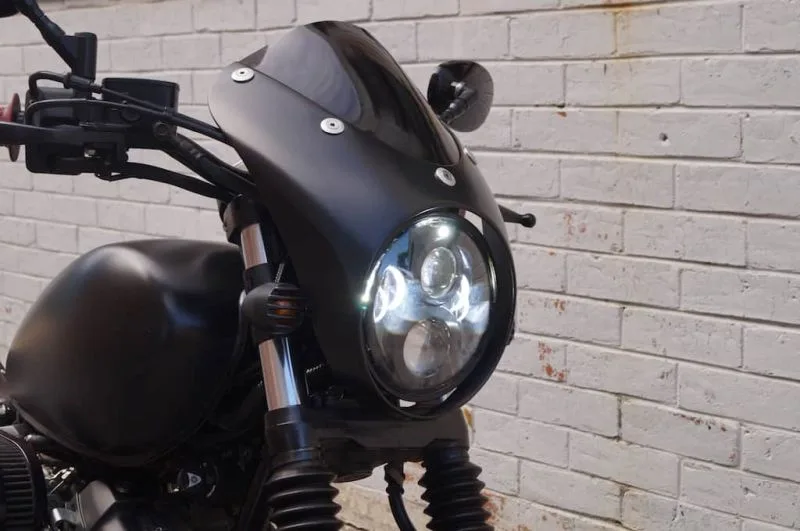

• Bikini Fairing
• LED Headlight by HogLights
• 3-in-1 LED tail/brake/indicator
• Bullet front indicators
• Biltwell Grips
• Fork Gaiters ear Bobber Conversion

Yamaha Bolt 950 specs

ENGINE

Engine Type58-cubic-inch (942cc) air-cooled SOHC V-twin; 4 valves

Bore x Stroke85.0mm x 83.0mm

Compression Ratio9.0:1

Fuel DeliveryFuel injection

IgnitionTCI: Transistor Controlled Ignition

Transmission5-speed; multiplate wet clutch

Final DriveBelt

CHASSIS

Suspension / Front Telescopic fork, 4.7-in travel

Suspension / RearDual piggyback shocks, 2.8-in travel

Brakes / FrontWave-type disc, 298mm

Brakes / RearWave-type disc, 298mm

Tires / Front100/90-19

Tires / Rear150/80-16

DIMENSIONS

L x W x H90.2 in x 37.2 in x 44.1 in

Seat Height27.2 in

Wheelbase61.8 in

Rake (Caster Angle)29.0°

Trail5.1 in

Ground Clearance5.1 in

Fuel Capacity3.4 gal

Fuel Economy**51 mpg

Wet Weight***542 lb

La entrada Yamaha Bolt 950 Bobber “Dark Magic” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Bolt XVS950

Style Bobber

Neo Avant Garde

When our client initially proposed the colour scheme for this bike, suffice to say I was not too enthusiastic… “Fluoro Yellow – are you sure, dude??” The last thing he wanted was a “YamaHarley”, so yeah – he was sure. Beefy, low, mean, black, aggressive… all key descriptives used in the brief. And Fluoro Yellow Wheels. Yep.

I was skeptical from the beginning, not entirely sure I would like this build. But now that it’s finished, I love it. It grew on me as the build progressed, and damned if I wouldn’t love to have this sitting in my garage at home!!

First thing was first, get it as low as we can. The exhaust needed to be distinct and loud enough to turn a few heads, but he didn’t want the pipes to be a feature, instead we discreetly hid the muffler underneath the chin spoiler, which was a one-off handmade for this build. It was also important to fatten up the forks, so a set of fork sleeves were custom made to give the front end a nice beefy look. There was a bit of work in getting them to fit without bottoming out, but we got there!

The next challenge was giving the bike that low bobber look, whilst allowing for a pillion at the same time – who doesn’t want the opportunity to throw a pretty girl on the back of your sweet custom to show off?! So shorty shocks, a custom re-enforced fender and hand made one-off seat were fashioned to fit.

Next the colour scheme – matching yellow pinstripes as highlights to compliment the powdercoated wheels, matte black sides, and a matte charcoal finish on the top of the tank.

Bolt 950 Custom parts

• Rear Bobber Conversion
• Custom Rear Fender into Struts
• Handmade 2-up Seat
• Custom two-tone Matte Paint with Pinstripe
• Flush mount fuel cap in tank
• Custom made exhaust with hidden muffler
• Clip on handlebars
• Custom made fork sleeves with integrated indicators
• Handmade chin spoiler
• Powdercoated Wheels in Fluorescent Yellow
• Rear shorty shocks
• LED Halo Headlight
• Integrated LED Tail light/Indicators
• Chopped front fender
• Custom made mirrors
• Custom numberplate bracket
• Custom air filter
• Avon grips

Yamaha Bolt 950 specs

ENGINE

Engine Type58-cubic-inch (942cc) air-cooled SOHC V-twin; 4 valves

Bore x Stroke85.0mm x 83.0mm

Compression Ratio9.0:1

Fuel DeliveryFuel injection

IgnitionTCI: Transistor Controlled Ignition

Transmission5-speed; multiplate wet clutch

Final DriveBelt

CHASSIS

Suspension / Front Telescopic fork, 4.7-in travel

Suspension / RearDual piggyback shocks, 2.8-in travel

Brakes / FrontWave-type disc, 298mm

Brakes / RearWave-type disc, 298mm

Tires / Front100/90-19

Tires / Rear150/80-16

DIMENSIONS

L x W x H90.2 in x 37.2 in x 44.1 in

Seat Height27.2 in

Wheelbase61.8 in

Rake (Caster Angle)29.0°

Trail5.1 in

Ground Clearance5.1 in

Fuel Capacity3.4 gal

Fuel Economy**51 mpg

Wet Weight***542 lb

La entrada Yamaha Bolt 950 Custom “Neo Avant Garde” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Cafe Racer

Magneto

We’ve built nearly a dozen of these Street 500’s but they’ve all been in a bobber style – so it was a refreshing change to be able to sink our teeth into something different. This wicked little cafe racer was designed and built for a client in Melbourne, he had a pretty clear vision in mind, and suffice to say our boys have absolutely nailed it.

Keep an eye out for it burning around Melbourne’s streets hitting up cafe after cafe.

Street Cafe Racer parts

• 18″ thin spoked wheels (Black Bike Wheels, USA)
• Custom seat & cafe racer cowl (Tuffside, USA)
• Subframe modfications
• Custom exhaust with Lossa Reverse Cone muffler
• Rearset foot controls
• Clip on bars
• Bar end LED indicators, mirrors
• LED taillight/indicators
• 5 & 3/4″ LED Hoglights headlight
• Custom made side panels
• Custom matte grey paint
• Modified air intake with K&N pod
• Custom speedo mount

La entrada Harley-Davidson Street 500 Cafe Racer “Magneto” by Smoked Garage aparece primero en DARK KUSTOM.

Builder SMOKED GARAGE

Contact [email protected]

Country Australia

Model Street 500

Style Bobber

The Preacher

Sinner or Saint? A little bit of both are at the heart of this build. Like a gun-toting, cigarette-smoking, bourbon-swilling Man of the Lord. Don’t piss him off – he’ll knock out your teeth before praying for your soul.

Our first hardtail Street 500 “Copperhead” proved incredibly popular, and it wasn’t long before we were approached to build another, this time with more modern styling and appeal.

As I Walk Through the Valley…

“Everything I own is Black or White” states the client. Black & White it is then. We couldn’t just opt for a flat white either. This bike had to pop.

Big. Wheels. These monsters were sourced by the good lads at Rollies Speed Shop, and although they cost a pretty penny were definitely a worthwhile investment. 21″ on the front, 18″ on the rear, and wrapped in Avon Cobra rubber.

Street 500 pics

Street 500 parts

• Hardtail frame conversion performed by Smoked Garage
• 50 spoke Fat Daddy rims (21″ Front / 18″ Rear)
• Avon Cobra tyres
• Custom pearlescent white paint work
• Clip on handlebars
• Custom made front/rear fenders
• Custom made springer seat
• Custom made tank strap
• Forward Controls
• LED lighting
• Side mounted numberplate
• Hand made battery/electrical housing
• Custom made exhaust, heat wrapped

Street 500 specs

ENGINE

• ENGINE¹ Liquid-cooled, Revolution X™ V-Twin
• BORE 2.72 in.
• STROKE 2.6 in.
• DISPLACEMENT 494 cc (30 cu in)
• COMPRESSION RATIO 10.5:1
• FUEL SYSTEM³ Electronic Sequential Port Fuel Injection (ESPFI)
• EXHAUST Black two into one

DIMENSIONS

• LENGTH 87.2 in.
• SEAT HEIGHT, LADEN⁷ 25.7 in.
• SEAT HEIGHT, UNLADEN 28.3 in.
• GROUND CLEARANCE 5.7 in.
• RAKE (STEERING HEAD) (DEG) 32
• TRAIL 4.5 in.
• WHEELBASE 59.8 in.
• TIRES, FRONT SPECIFICATION 100/80-17
• TIRES, REAR SPECIFICATION 140/75 R15
• FUEL CAPACITY 3.5 gal.
• OIL CAPACITY (W/FILTER) 3.3 qt.
• WEIGHT, AS SHIPPED 492 lb.
• WEIGHT, IN RUNNING ORDER 514 lb.

PERFORMANCE

• ENGINE TORQUE TESTING METHOD J1349
• ENGINE TORQUE² 29.5 ft-lb
• ENGINE TORQUE (RPM) 3,750
• LEAN ANGLE, RIGHT (DEG.) 28.5
• LEAN ANGLE, LEFT (DEG.) 28.5
• FUEL ECONOMY TESTING METHOD Estimated City/Hwy
• FUEL ECONOMY⁵ 64 mpg

DRIVETRAIN

• PRIMARY DRIVE Gear, 36/68 ratio
• GEAR RATIOS (OVERALL) 1ST 14.272
• GEAR RATIOS (OVERALL) 2ND 10.074
• GEAR RATIOS (OVERALL) 3RD 7.446
• GEAR RATIOS (OVERALL) 4TH 6.006
• GEAR RATIOS (OVERALL) 5TH 5.037
• GEAR RATIOS (OVERALL) 6TH 4.533

CHASSIS

• WHEELS, FRONT TYPE⁹ Black, 7-spoke Cast Aluminum
• WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
• BRAKES, CALIPER TYPE 2-piston floated front and rear

ELECTRIC

• LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS⁸ High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
• GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

La entrada Harley-Davidson Street 500 Bobber “The Preacher” by Smoked Garage aparece primero en DARK KUSTOM.
