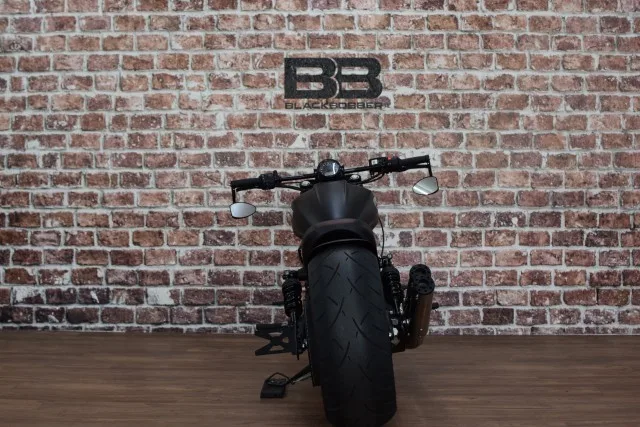

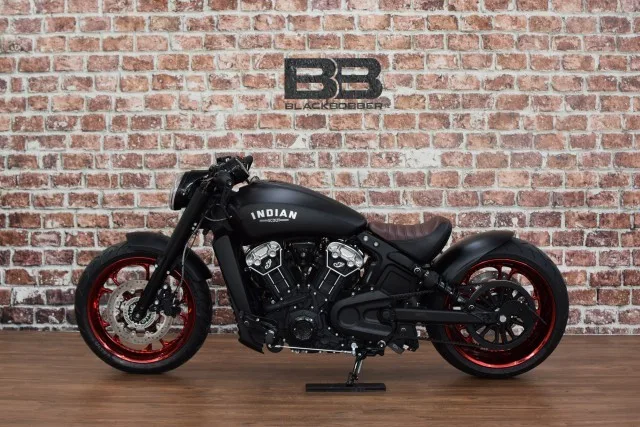

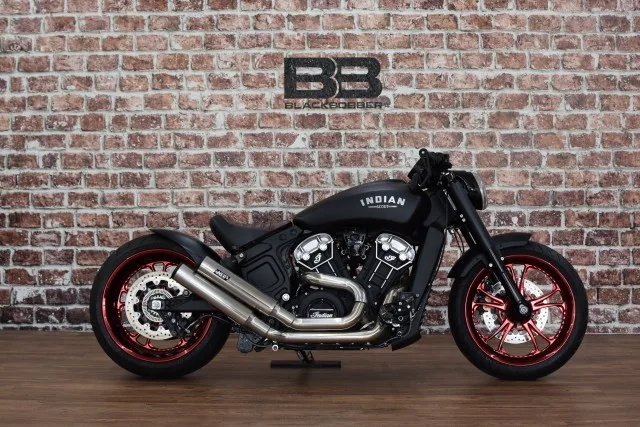

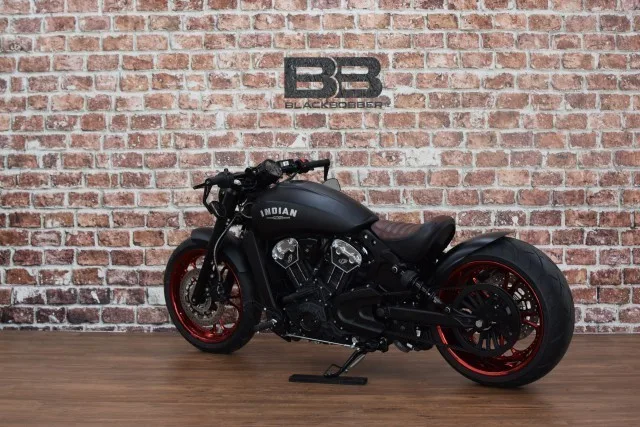

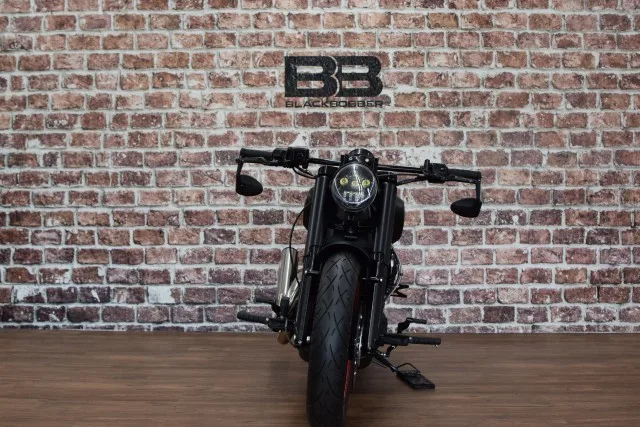

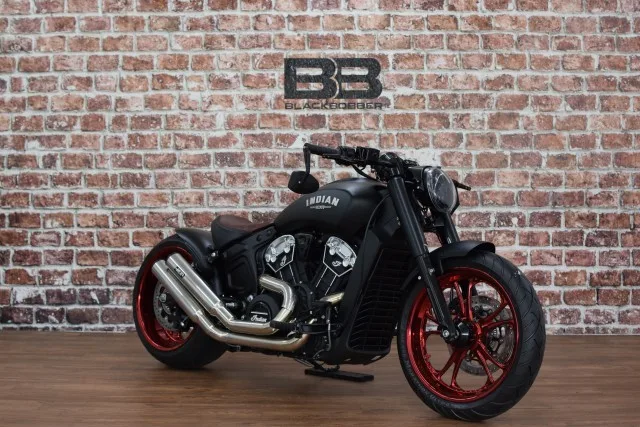

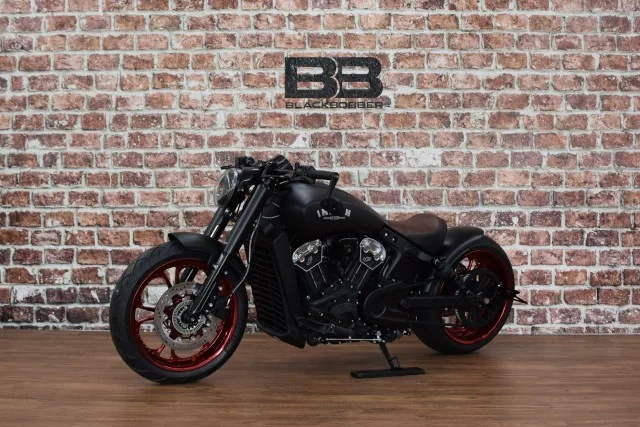

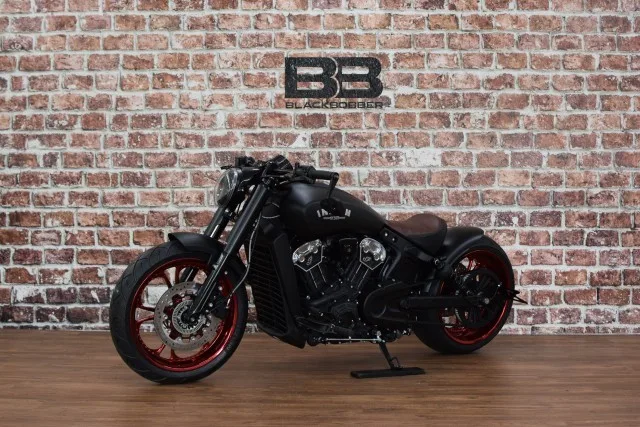

Indian Scout performance ‘Rod One’ by Black Bobber

Indian Scout performance ‘Rod One’ by Black Bobber

0

Indian Scout performance ‘Rod One’ by Black Bobber

0

BLACK BOBBER

[email protected]

Geolocation Safenwil

SWITZERLAND

INDIAN SCOUT

BOBBER

Engine and transmission

  • Displacement: 1133.0 ccm (69.14 cubic inches)
  • Engine type: V2, four-stroke
  • Engine details: Liquid Cooled 60 degree V-Twin
  • Power: 100.0 HP (73.0 kW))
  • Torque: 97.6 Nm (10.0 kgf-m or 72.0 ft.lbs) @ 6000 RPM
  • Compression: 10.7:1
  • Bore x stroke: 99.0 x 73.6 mm (3.9 x 2.9 inches)
  • Fuel system: Injection. Closed Loop Fuel Injection, 60 mm Bore
  • Cooling system: Liquid
  • Gearbox: 6-speed
  • Transmission type,
  • final drive: Belt
  • Clutch: Wet, Multi-Plate. Gear Drive Wet Clutch.
  • Exhaust system: Split dual exhaust with crossover

Chassis, suspension, brakes and wheels

  • Rake (fork angle): 29.0°
  • Trail: 120 mm (4.7 inches)
  • Front suspension: Telescopic fork
  • Front wheel travel: 120 mm (4.7 inches)
  • Rear suspension: Dual shock
  • Rear wheel travel: 76 mm (3.0 inches)
  • Front tire: 130/90-16
  • Rear tire: 150/80-16
  • Front brakes: Single disc. Optional ABS. Two-piston calipers.
  • Diameter: 298 mm (11.7 inches)
  • Rear brakes: Single disc. Optional ABS. Single-piston caliper.
  • Diameter: 298 mm (11.7 inches)
  • Wheels: Contrast Cut wheels. Pirelli Night Dragon tires.
  • Seat: 2-Up Sport Seat

Measures and capacities

  • Dry weight: 246.0 kg (542.3 pounds)
  • Weight incl. oil, gas, etc: 254.0 kg (560.0 pounds)
  • Power/weight ratio: 0.4065 HP/kg
  • Seat height: 656 mm (25.8 inches) If adjustable, lowest setting.
  • Overall height: 1068 mm (42.0 inches)
  • Overall length: 2324 mm (91.5 inches)
  • Overall width: 916 mm (36.1 inches)
  • Ground clearance: 145 mm (5.7 inches)
  • Wheelbase: 1576 mm (62.0 inches)
  • Fuel capacity: 12.50 litres (3.30 US gallons)
