Thunderbike

[email protected]

Geolocation Hamminkeln

GERMANY

HARLEY-DAVIDSON BREAKOUT

CRUISER

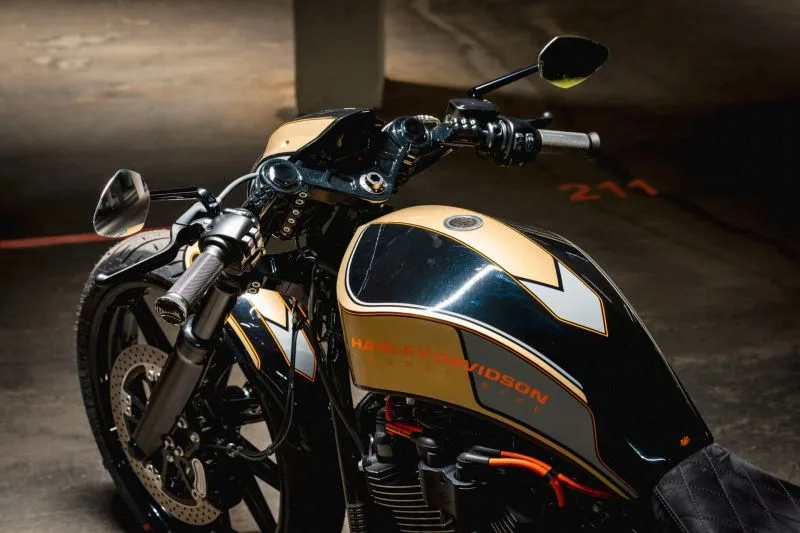

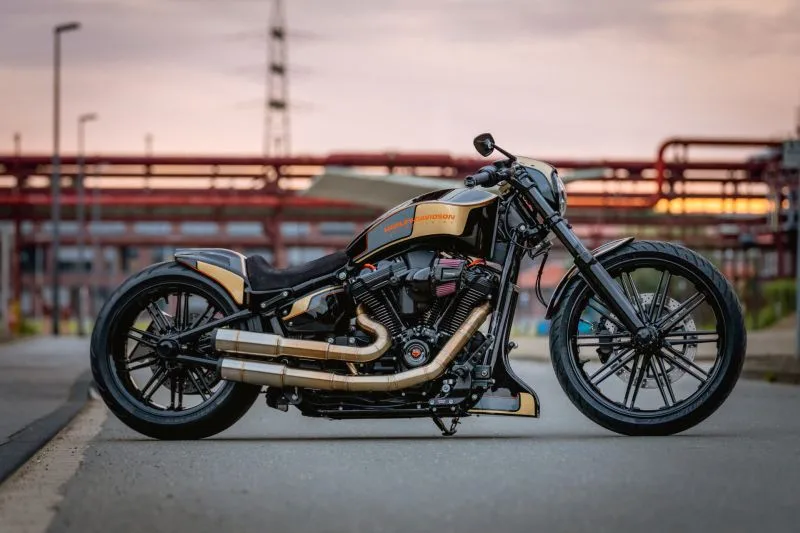

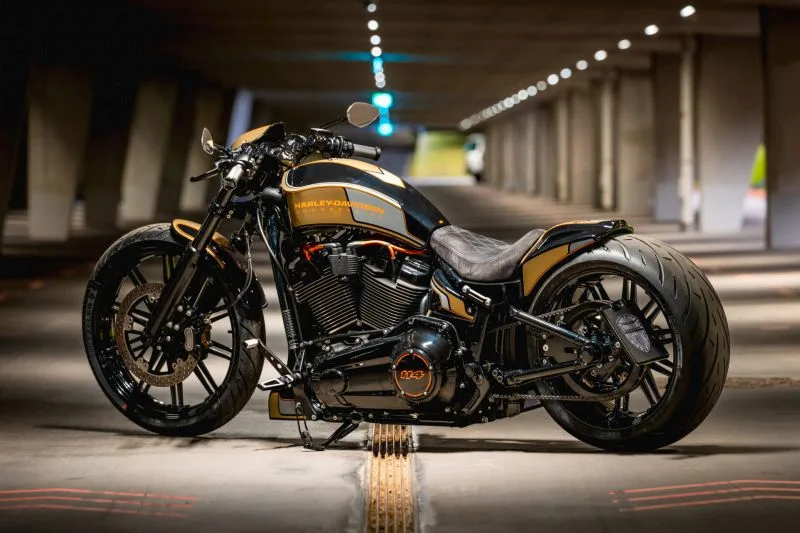

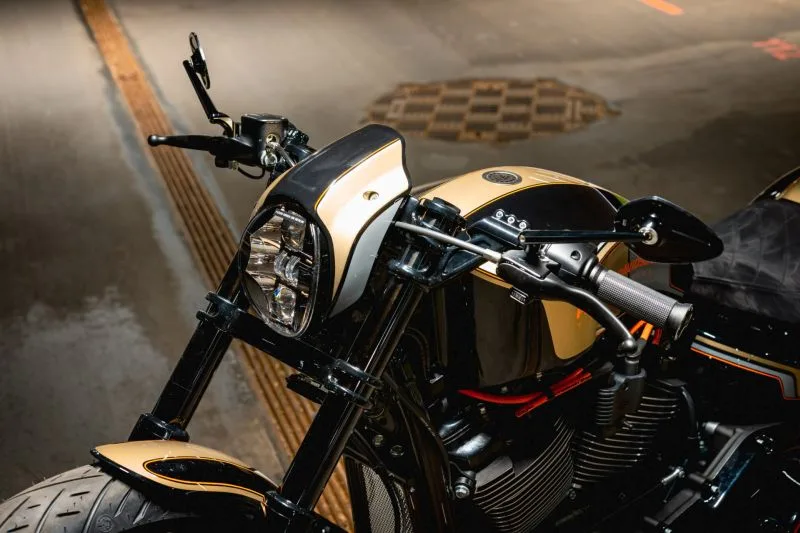

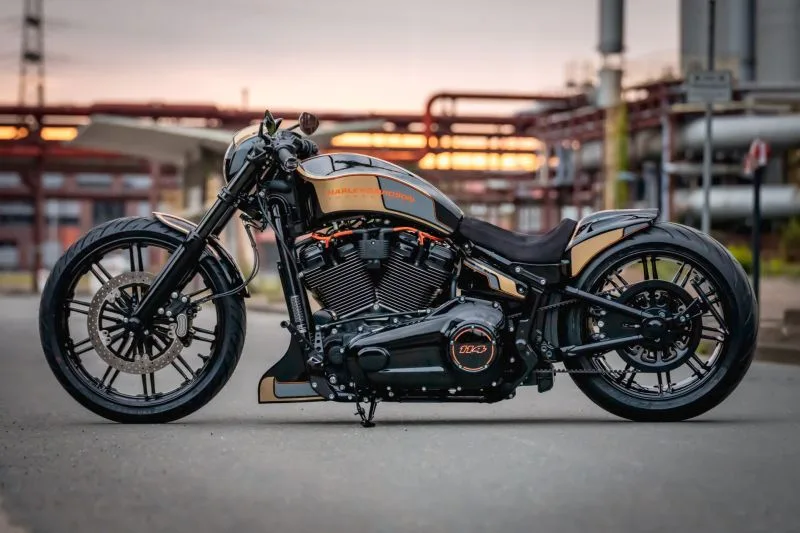

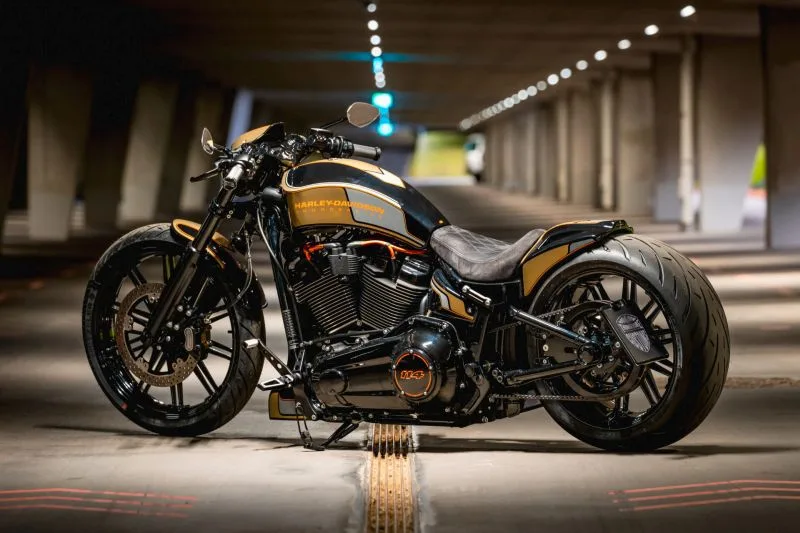

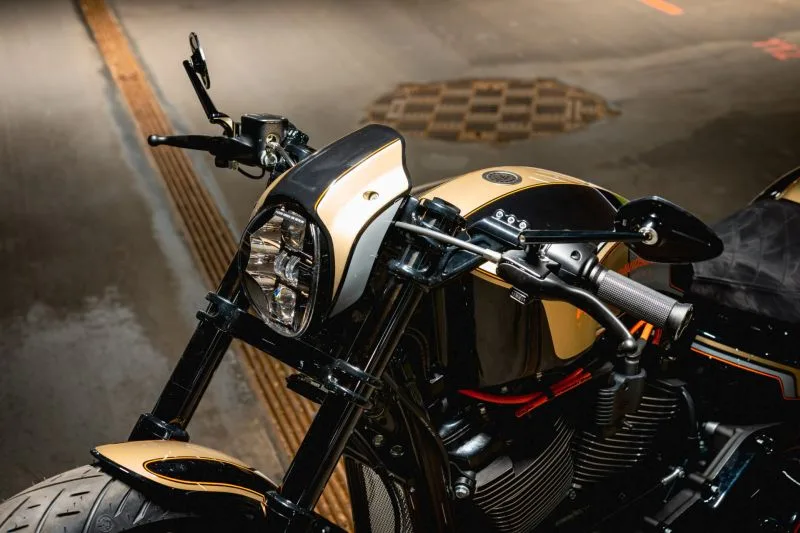

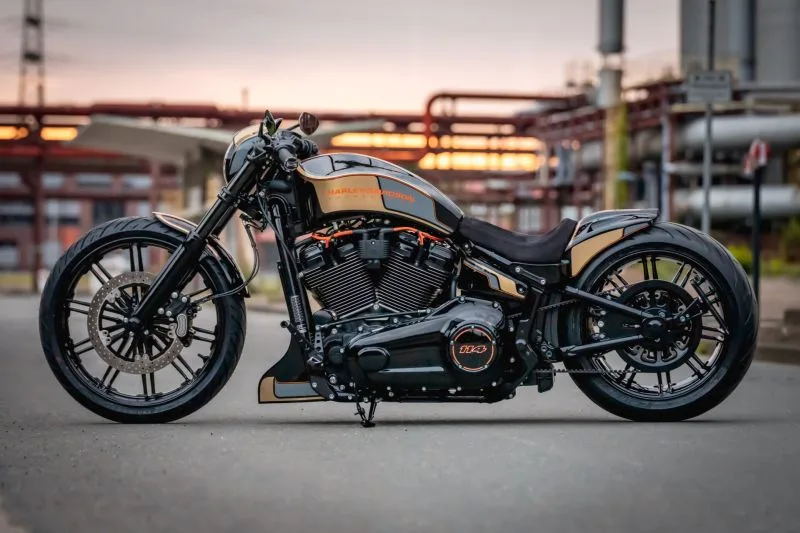

Our handmade custom tank, nose spoiler, seat and rear fender from our GP series give this Softail model a meaningful new line. It quickly becomes clear what this is all about: performance! And not just visually.

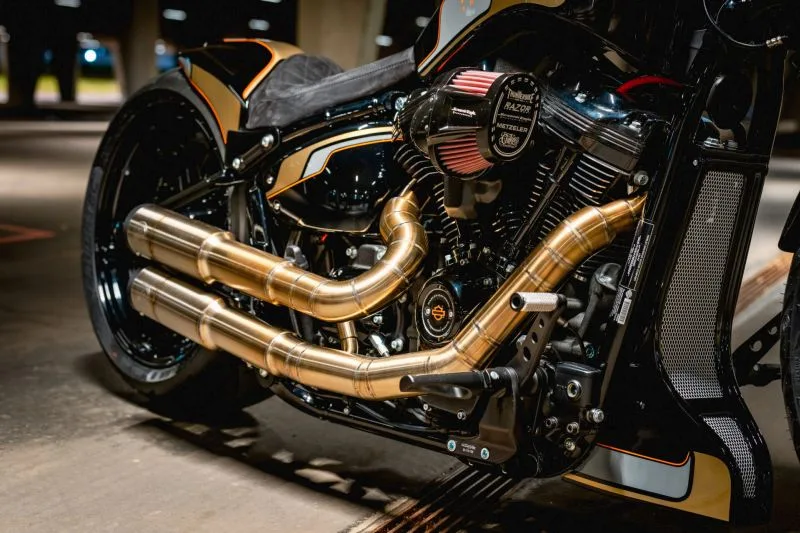

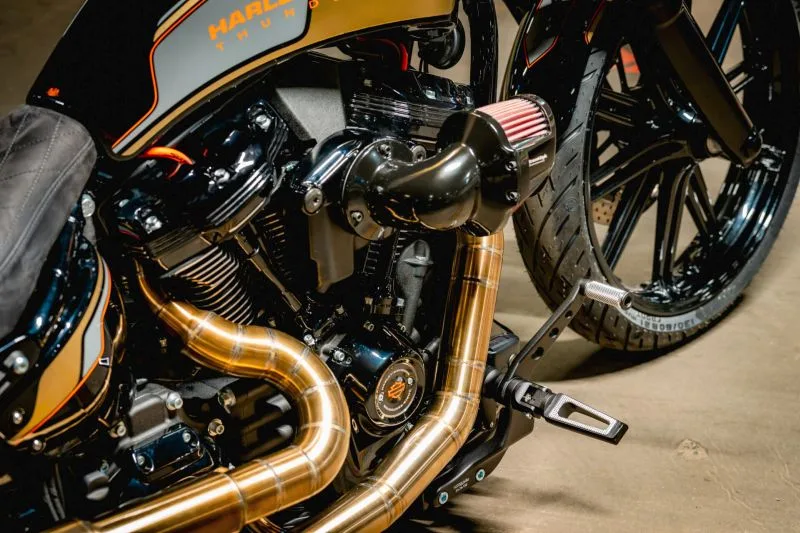

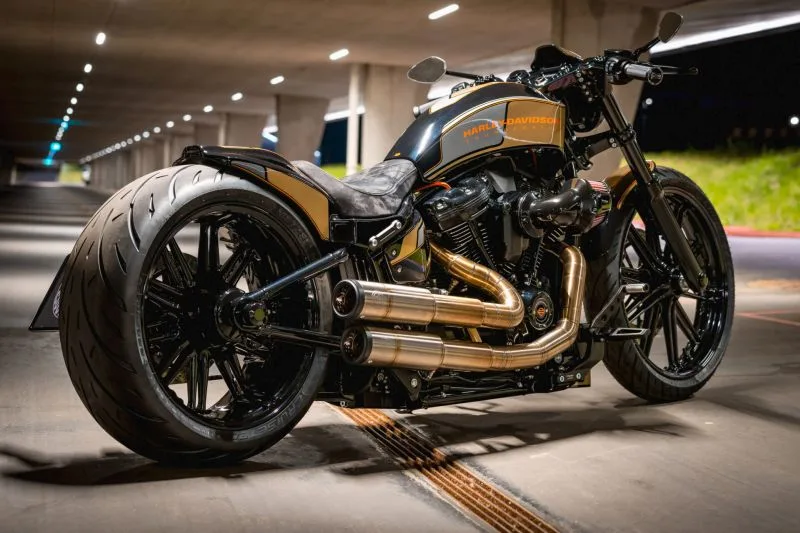

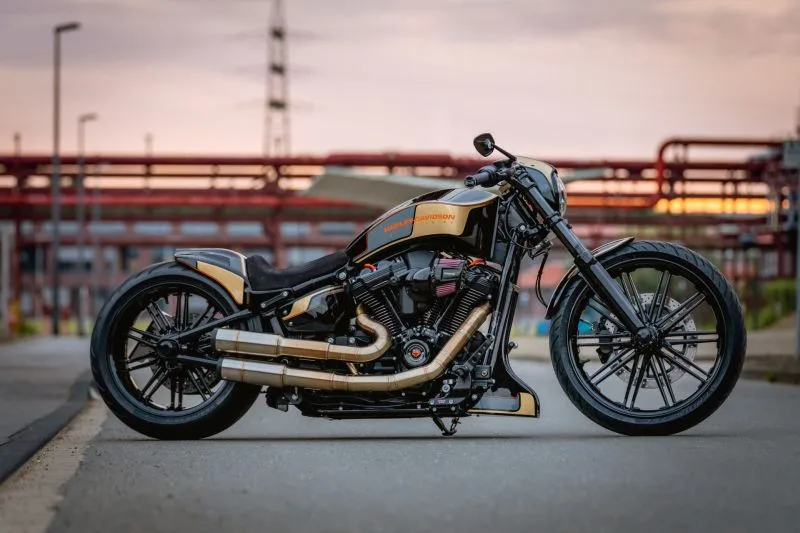

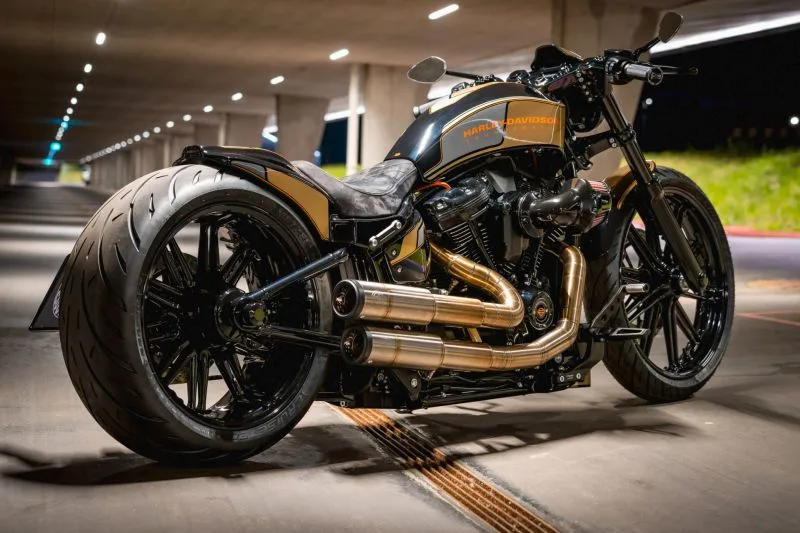

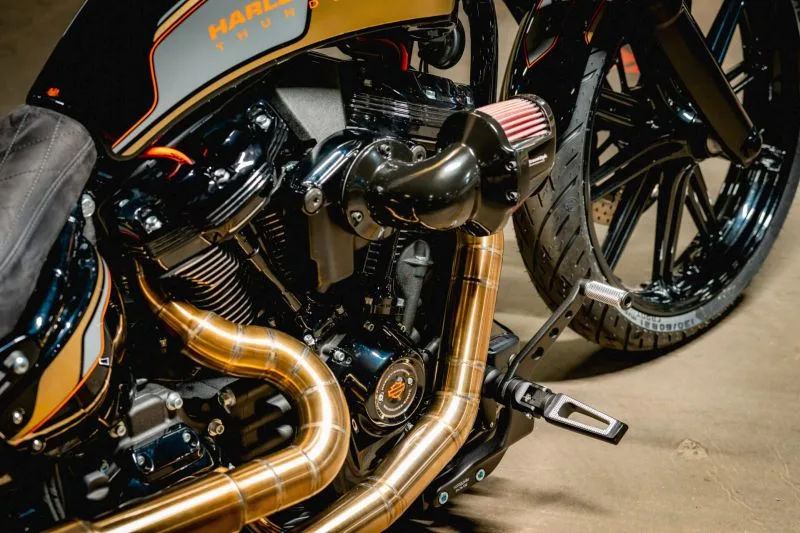

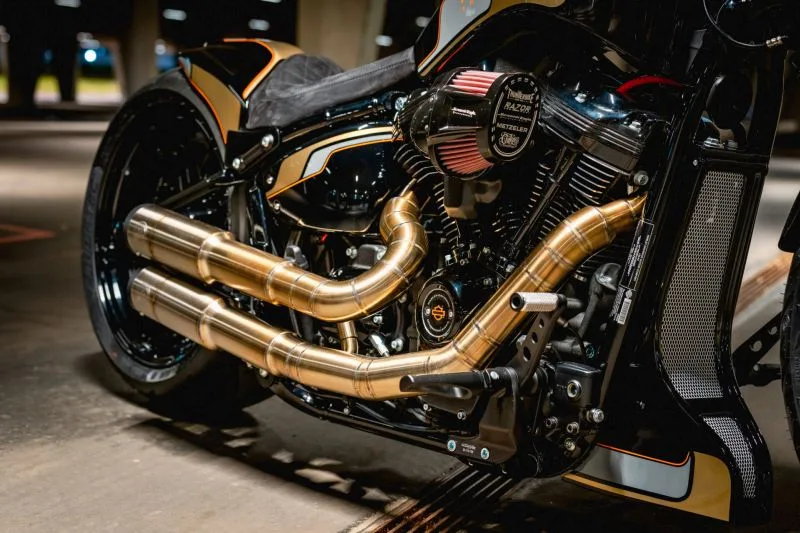

With its 114 cubic inch Milwaukee-Eight engine, the Breakout brings the best prerequisites for this racy custom bike. With the Screamin’ Eagle Heavy Breather and mapping from Don Performance, a few more horses go into the race. The exhaust system from Kess Tech is not only extremely sexy and makes a great sound, it also fits perfectly into the performance concept.

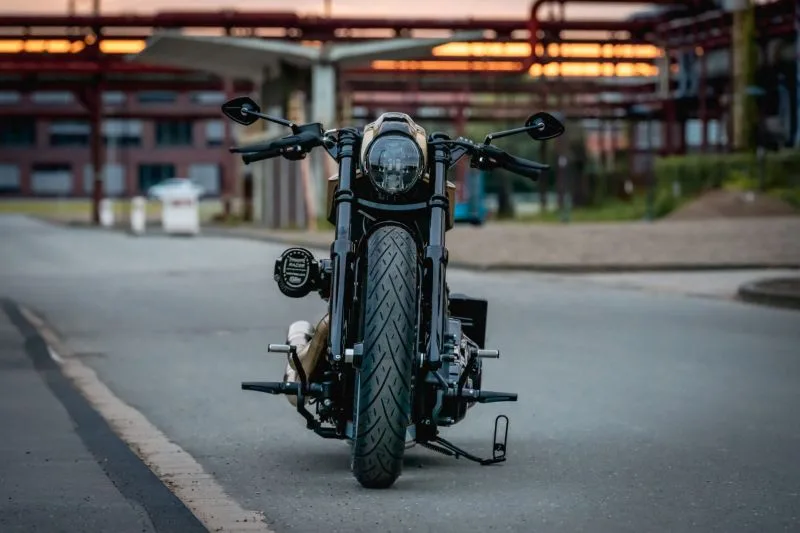

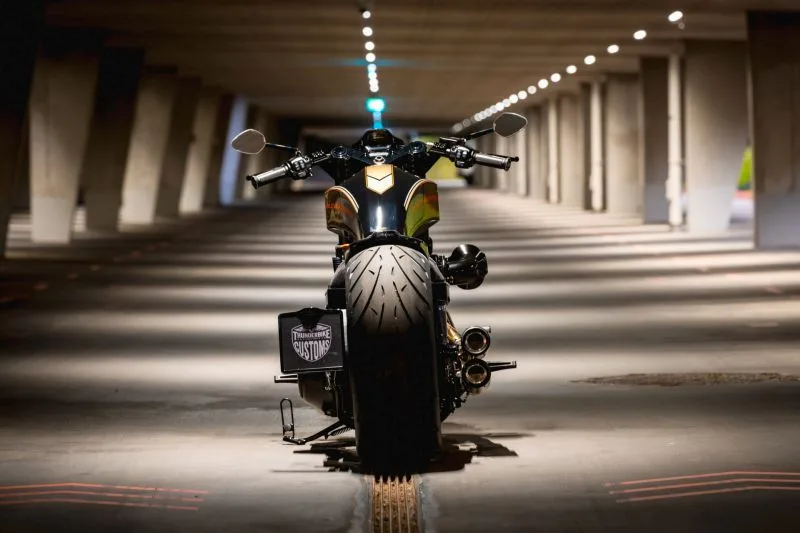

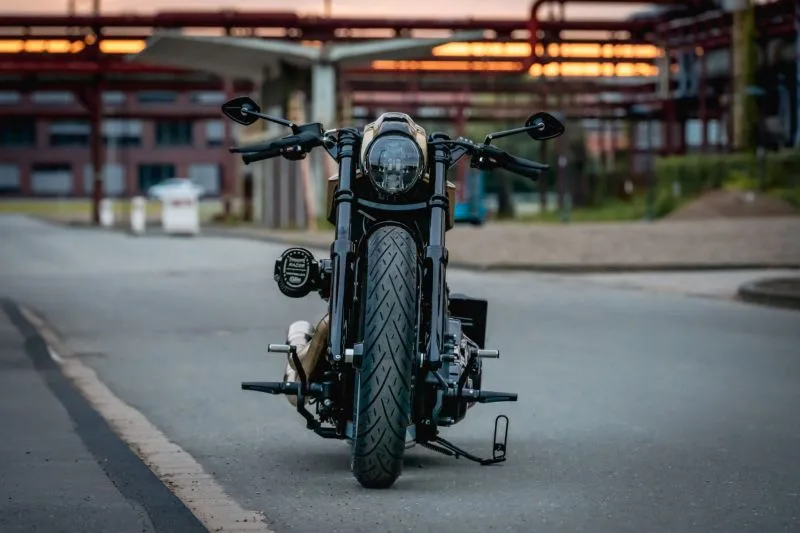

Following this concept, we like to use our Slamtail for these conversions. It is the sporty version of an airride, which lowers the rear as desired when stationary and springs linearly when riding. At the front, the aluminum machined triple clamp with 3″ rake from our GP series ensures that the bike also looks ducked in front.

Breakout custom parts

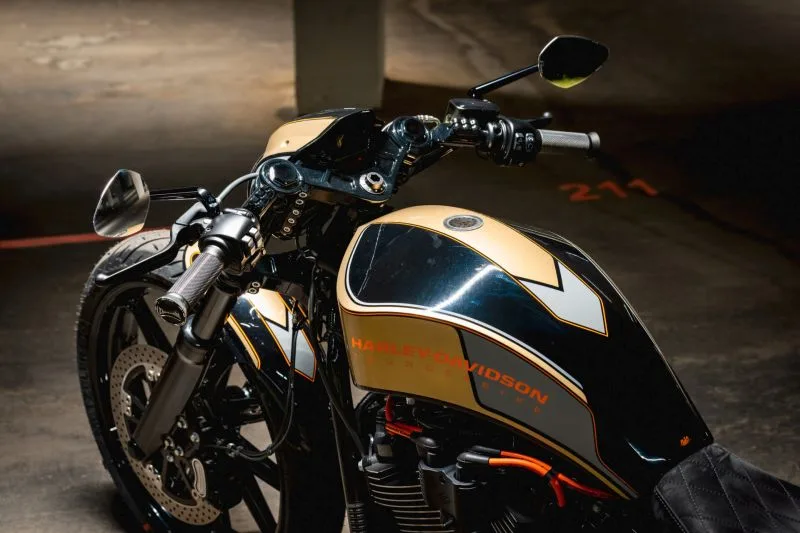

  • Thunderbike Custom Fuel Tank GP-Style
  • Thunderbike Chin Fairing GP Style Long
  • Thunderbike Headlamp Cap Alu raw
  • Thunderbike Triple Tree Grand Prix bicolor
  • Thunderbike Clip-On Handlebars Grand Prix bicolor
  • Thunderbike Grips Base Satin black cut

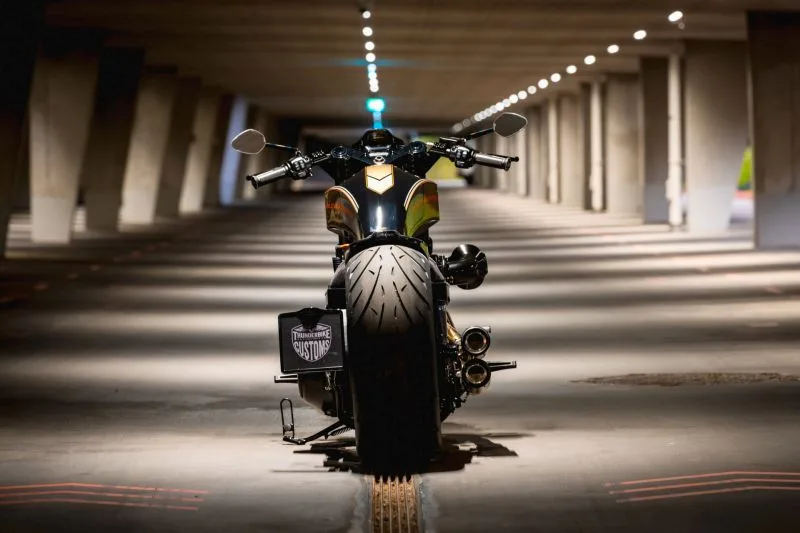

  • Thunderbike Rear Fender GP-Style 260 mm
  • Thunderbike Seat Plate
  • Thunderbike Slamtail Suspension Kit
  • Thunderbike Pulley Brake Kit Original Wheel
  • Thunderbike Brake Disc Vegas Floated 340mm
  • Thunderbike Brake Disc Vegas Floated 292mm
  • Thunderbike Brake Caliper Adapter 300->340mm, left black
  • Thunderbike Frontfender Breakout 21”/23”
  • Thunderbike Sidemount License Bracket Kit Medium Alu black
  • Thunderbike License Plate Frame Inside Plate
  • Thunderbike License Plate Lighting
  • Thunderbike Turn Signals Stripe LED with Housing
  • Thunderbike Toppers Base
  • Harley-Davidson Cover Battery Right, Gloss Black
  • Thunderbike EFI-Cover black wrinkle
  • Harley-Davidson Defiance Upper Rocker Covers, black
  • Harley-Davidson Tappet Covers, Black
  • Thunderbike Forward Control Kit black
  • Thunderbike Rider Footpegs V-Tech Design
  • Thunderbike Ignition Coil Relocation Kit for Air-Ride switch, black
  • Thunderbike Front Axle Cover-Set
  • Thunderbike Rear Axle Cover Set
  • Harley-Davidson Screamin’ Eagle Heavy Breather Elite Air Cleaner black
  • Motogadget mo.View Mirror Sport black

H-D Breakout specs

ENGINE SPECS

TYPE air-cooled, Twin Cam 103B
DISPLACEMENT 1690 cm3
BORE X STROKE 3.9×4.4 in OR 99 mm
COMPRESSION RATIO 9.6:1
HORSE POWER / KW(hp)/RPM
TORQUE 97/3250 lb-ft/RPM OR 132/3250 Nm/RPM
FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)

TRANSMISSION SPECS

GEARBOX 6-speed, manual
CLUTCH wet multi-disc, manual
PRIMARY DRIVE chain
FINAL DRIVE belt

CHASSIS SPECS

FRAME Steel
FRONT SUSPENSION telescopic fork
REAR SUSPENSION dual shocks
FRONT BRAKE disc, 4-piston caliper
REAR BRAKE disc, 2-piston caliper

DIMENSION SPECS

OVERALL LENGTH 96.3 in OR 2446 mm
OVERALL WIDTH –
SEAT HEIGHT 26 in OR 660 mm
WEELBASE 67.3 in OR 1709 mm
GROUND CLEARANCE 4.7 in OR 119 mm
WEIGHT 679 lbs OR 308 kg
FUEL CAPACITY 5 gallons OR 18.9 L

TYRES SPECS

FRONT 130/60B21 63H
REAR 240/40R18 79V
