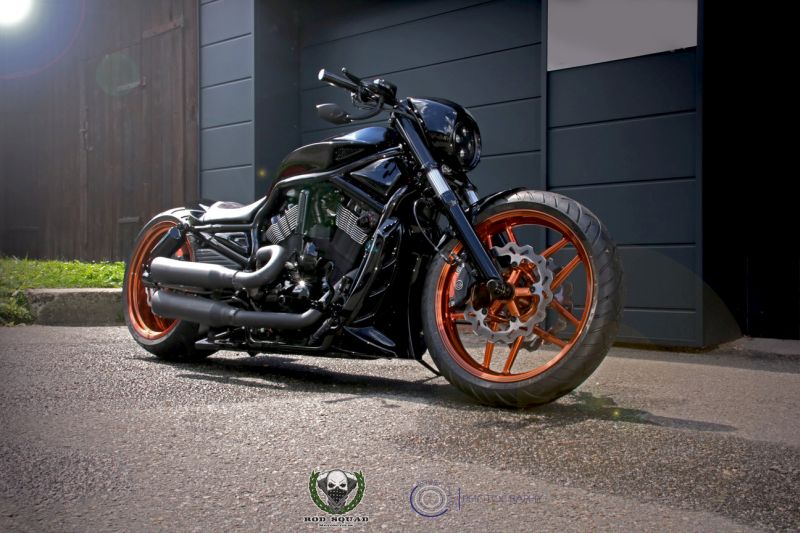

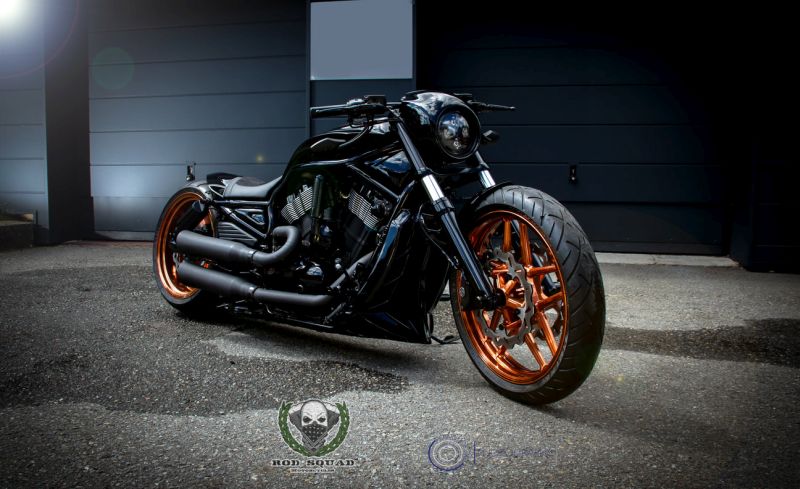

Harley-Davidson VRod ‘Ragnarok’ by Rod Squad Motorcycles

Harley-Davidson VRod ‘Ragnarok’ by Rod Squad Motorcycles

Harley-Davidson-VRod-Ragnarok-by-Rod-Squad-Motorcycles

Rod Squad Motorcycles

[email protected]

Geolocation Königswalde

GERMANY

HARLEY-DAVIDSON V-ROD

MUSCLE

https://youtu.be/-wUlRXdqwQc

RAGNAROK MUSCLE PARTS

  • Jack Lomaxx Sleek Airboxcover with speedometer
  • Jack Lomaxx Sleek rear fender
  • Jack Lomaxx cooler cover
  • Speed Demon front fender
  • processed Nightrod lamp mask with lowering
  • LED headlights
  • Speed Demon frame cover on the front
  • Frame / tank cover
  • all parts painted in gloss black
  • Custom-made seat with lasered logo
  • Rebuffini riser
  • Fehling dragbar with internal cables
  • 1 “fork lowering with PS spring set and conversion to special fork oil

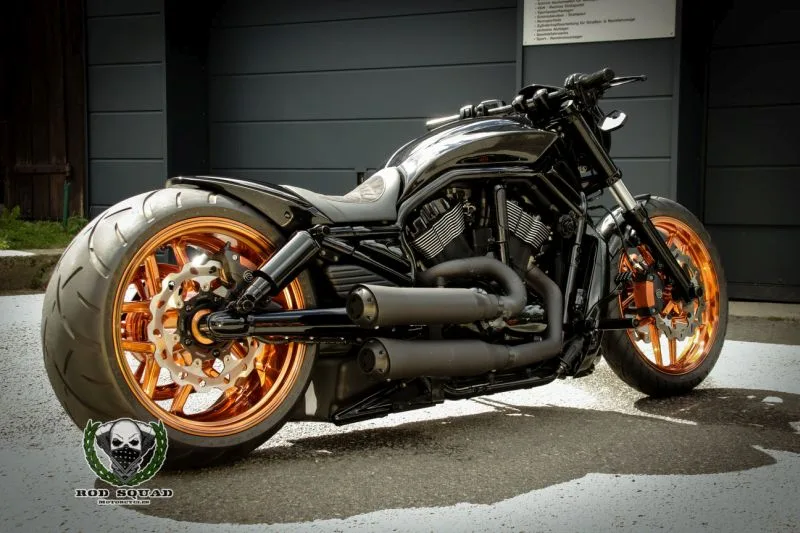

  • BSL exhaust system with EEC
  • K&N sports air filter
  • new mapping for the ECU

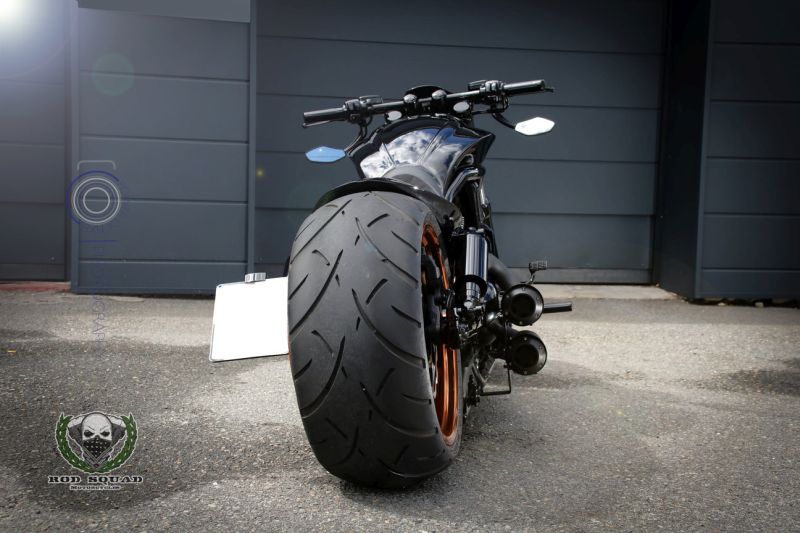

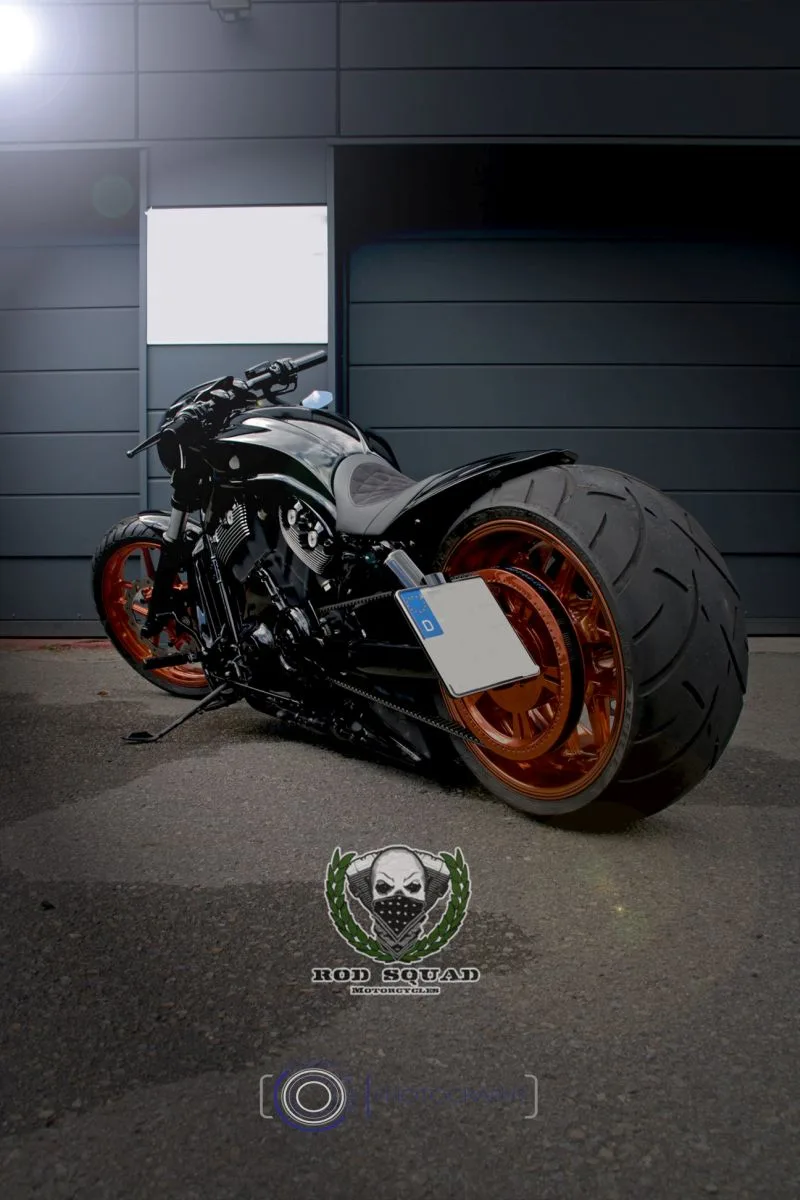

  • Conversion to 10 “rear wheel rim and 280 tires

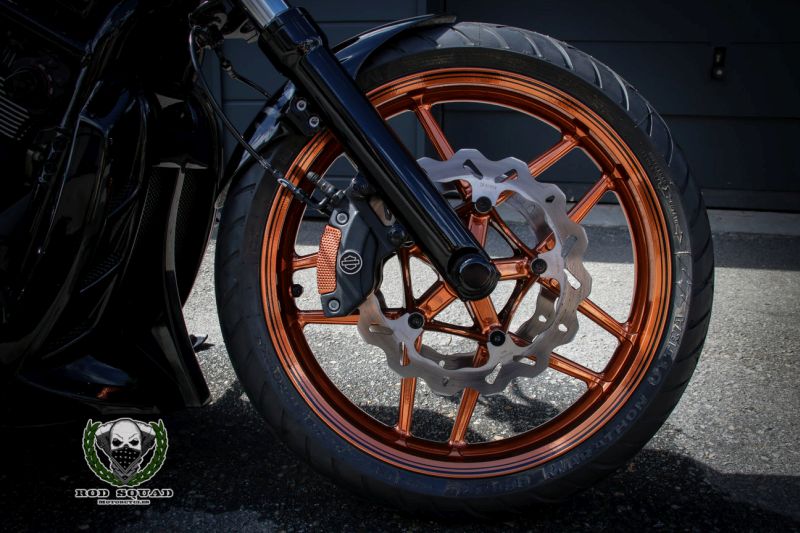

  • Rims in copper candy
  • Arnott Airride custom order

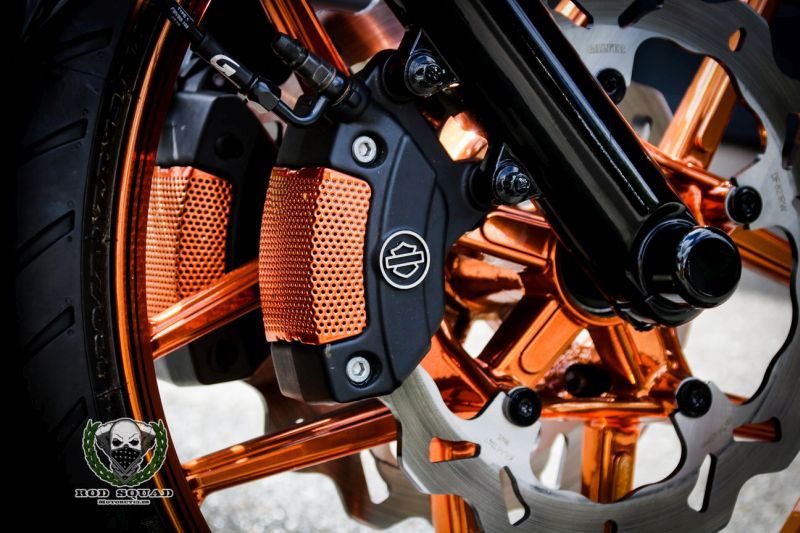

  • Galfer Wave brake discs front and rear with sintered pads
  • ABM Scio brake fluid reservoir
  • Kellermann Ato 3in1 turn signal / brake light / rear light
  • side license plate holder

[vc_row][vc_column][vc_btn title=”ROD SQUAD parts for sale” style=”flat” shape=”round” color=”green” align=”center” i_icon_fontawesome=”fas fa-shopping-cart” add_icon=”true” link=”url:https%3A%2F%2Febay.us%2FXkcY2C|target:_blank|rel:nofollow”][/vc_column][/vc_row]



H-D V-Rod specs



Engine specs

  • TYPE Liquid-cooled, Revolution, 60 V-Twin
  • DISPLACEMENT 1247 cm3
  • BORE X STROKE 4.1×0 in OR 104 mm
  • COMPRESSION RATIO 11.5:1
  • HORSEPOWER -/- KW(hp)/RPM
  • TORQUE 85/6500 lb-ft/RPM OR 115/6500 Nm/RPM
  • FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)

Transmission specs

  • GEARBOX 6-Speed
  • CLUTCH Wet Multi-disc
  • PRIMARY DRIVE-FINAL DRIVE Chain

Chassis specs

  • FRAME Steel
  • FRONT SUSPENSION Telescopic fork
  • REAR SUSPENSION Dual shock adjustable
  • FRONT BRAKE 4-piston
  • REAR BRAKE 4-piston floated caliper

Dimension specs

  • OVERALL LENGTH 94.9 in OR 2410 mm
  • OVERALL WIDTH-SEAT HEIGHT 27.8 in OR 706 mm
  • WEELBASE 66.9 in OR 1699 mm
  • GROUND CLEARANCE 4.1 in OR 104 mm
  • WEIGHT 677 lbs OR 307 kg
  • FUEL CAPACITY 5 gallons OR 18.9 L

Tyres specs

  • FRONT 120/70ZR-19 60W
  • REAR 240/40R-18 79V
