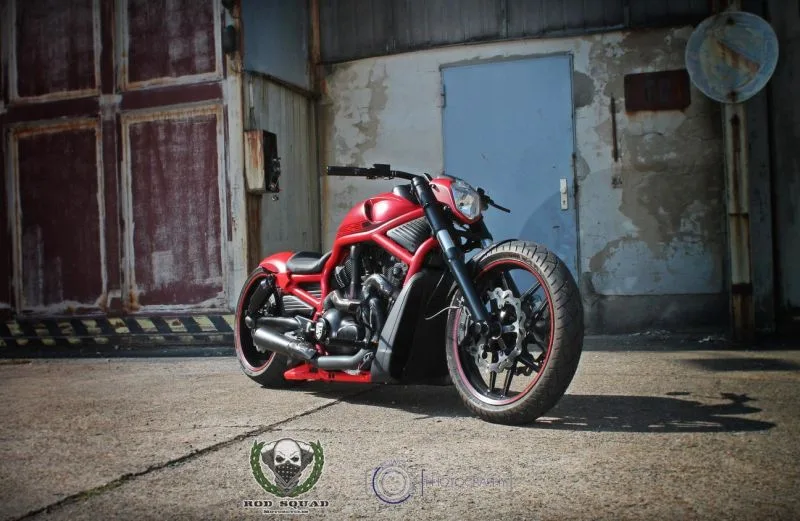

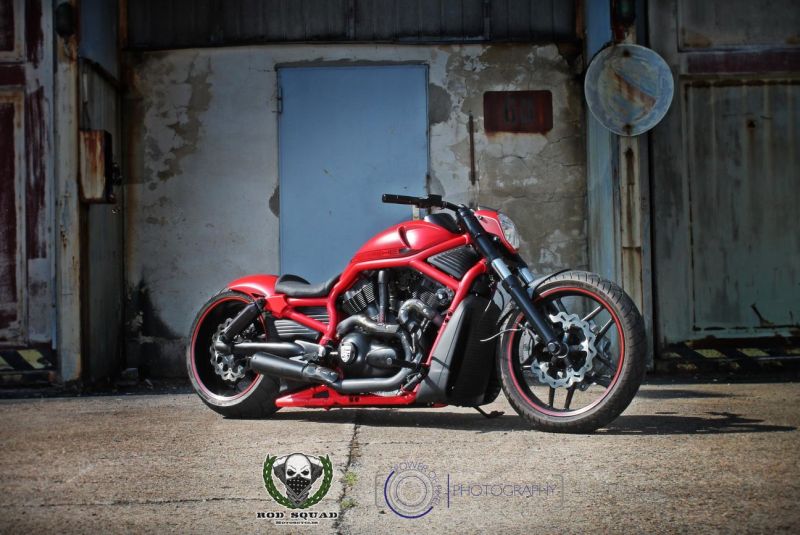

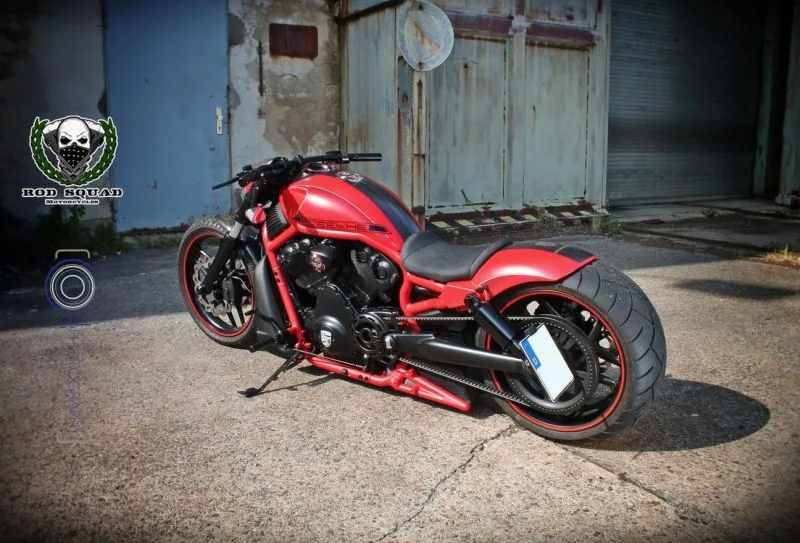

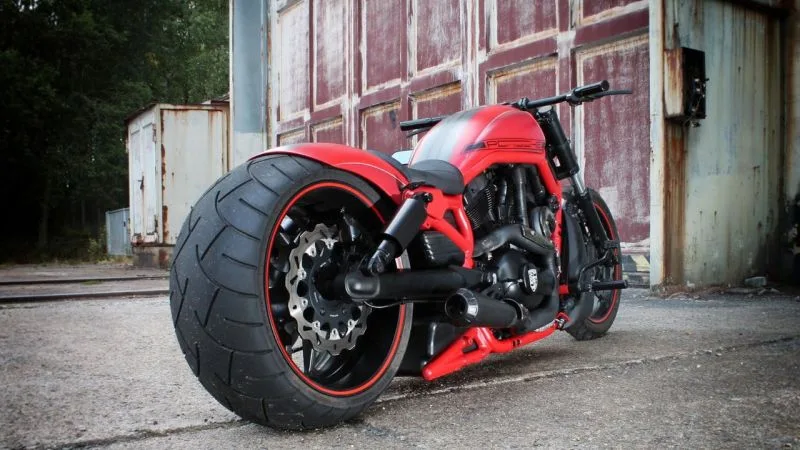

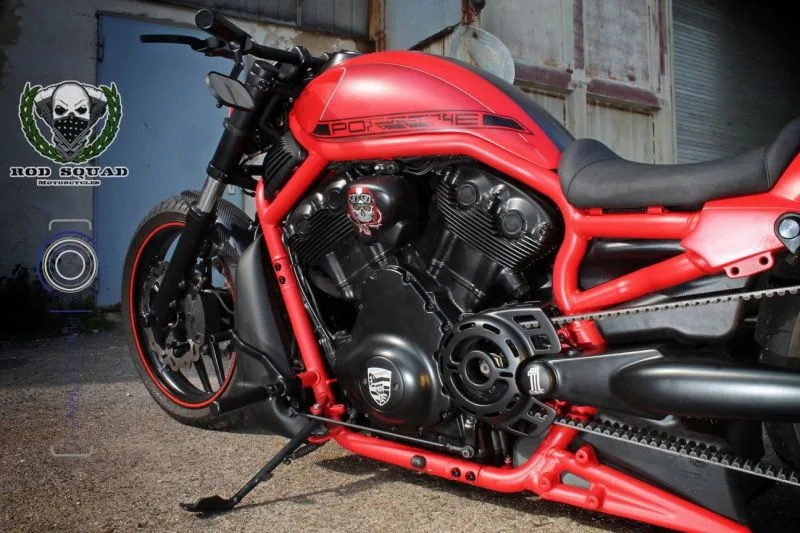

Harley-Davidson NightRod ‘Phoenix’ by Rod Squad

    Harley-Davidson-NightRod-Phoenix-by-Rod-Squad

    Rod Squad Motorcycles

    [email protected]

    Geolocation Königswalde

    GERMANY

    HARLEY-DAVIDSON V-ROD

    MUSCLE



    H-D NightRod parts

    • Conversion to 2014 Nightrod Special wheels

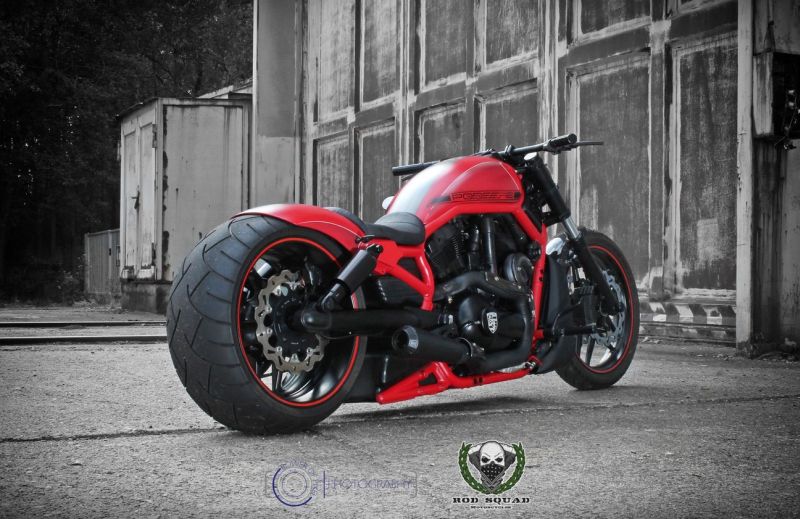

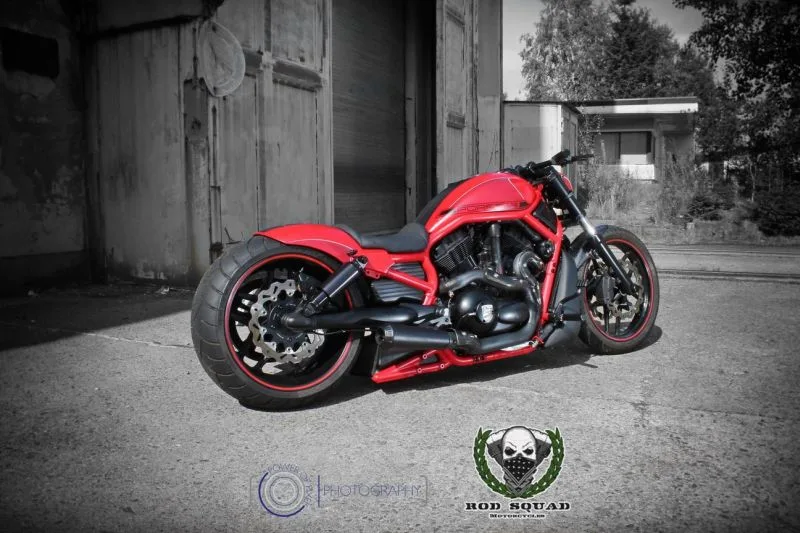

    • Rear wheel conversion to 9.5 x 18″ with 280 Metzeler tires
    • Fork completely faired with caps and sleeves from Speed ​​Demon
    • Fork 2″ lowered
    • modified MT06 lamp with M-Blaze Pin micro indicators

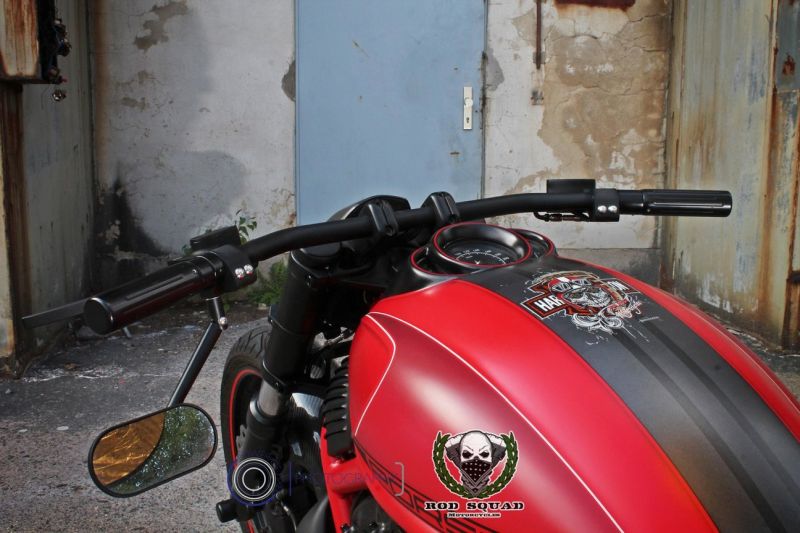

    • ’89 dragbar handlebars on cranked and modified risers
    • Clutch line and brake line as well as throttle cable and electrics completely routed into the handlebar.
    • internal Müller throttle grip
    • Modified Speed ​​Demon grip set
    • Ton Pel fittings
    • Complete wiring harness rebuilt and engine control unit moved to the front
    • Complete control laid on 4 buttons
    • Frame and attachments painted matt red
    • Engine painted matt black

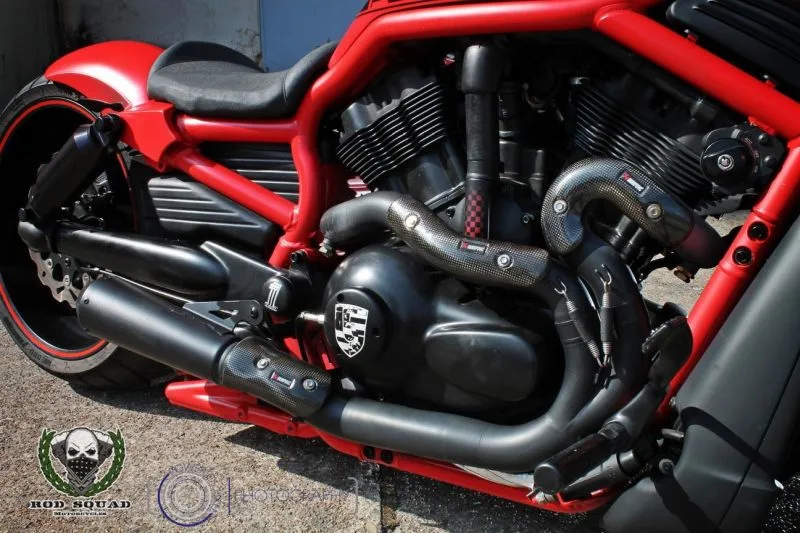

    • Akrapovic exhaust system with specially manufactured CNC bracket for mounting the Akrapovic silencer
    • Arnott Airride
    • Speed ​​Demon license plate holder with hidden cable routing
    • Steel flex brake hoses complete
    • Galfer Wave brake discs front and rear with Galfer sintered pads

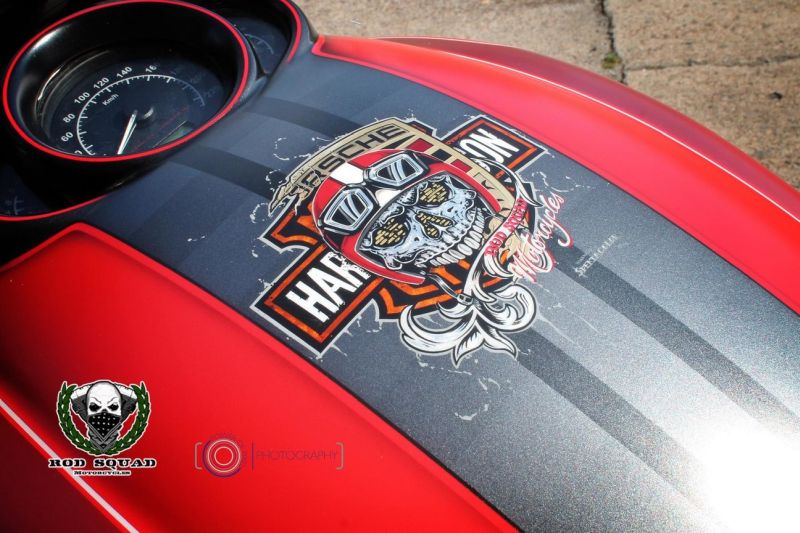

    • Real carbon front fender with elaborate airbrush design
    • modified airbox cover and rear fender also with a very complex airbrush and hand lines
    • Speedometer conversion to red lighting
    • hidden starter button
    • Power Vision Mapping
    • 26 drive wheel
    • milled rear pulley
    • milled pully cover
    • Engraved engine cover and swingarm cover
    • Custom-made seat with Alcantara
    • Kellermann rear brake/rear/indicator combination



    H-D NightRod specs



    Engine specs

    • TYPE Liquid-cooled, Revolution, 60 V-Twin
    • DISPLACEMENT 1247 cm3
    • BORE X STROKE 4.1×0 in OR 104 mm
    • COMPRESSION RATIO 11.5:1
    • HORSEPOWER -/- KW(hp)/RPM
    • TORQUE 85/6500 lb-ft/RPM OR 115/6500 Nm/RPM
    • FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)

    Transmission specs

    • GEARBOX 6-Speed
    • CLUTCH Wet Multi-disc
    • PRIMARY DRIVE-FINAL DRIVE Chain

    Chassis specs

    • FRAME Steel
    • FRONT SUSPENSION Telescopic fork
    • REAR SUSPENSION Dual shock adjustable
    • FRONT BRAKE 4-piston
    • REAR BRAKE 4-piston floated caliper

    Dimension specs

    • OVERALL LENGTH 94.9 in OR 2410 mm
    • OVERALL WIDTH-SEAT HEIGHT 27.8 in OR 706 mm
    • WEELBASE 66.9 in OR 1699 mm
    • GROUND CLEARANCE 4.1 in OR 104 mm
    • WEIGHT 677 lbs OR 307 kg
    • FUEL CAPACITY 5 gallons OR 18.9 L

    Tyres specs

    • FRONT 120/70ZR-19 60W
    • REAR 240/40R-18 79V
