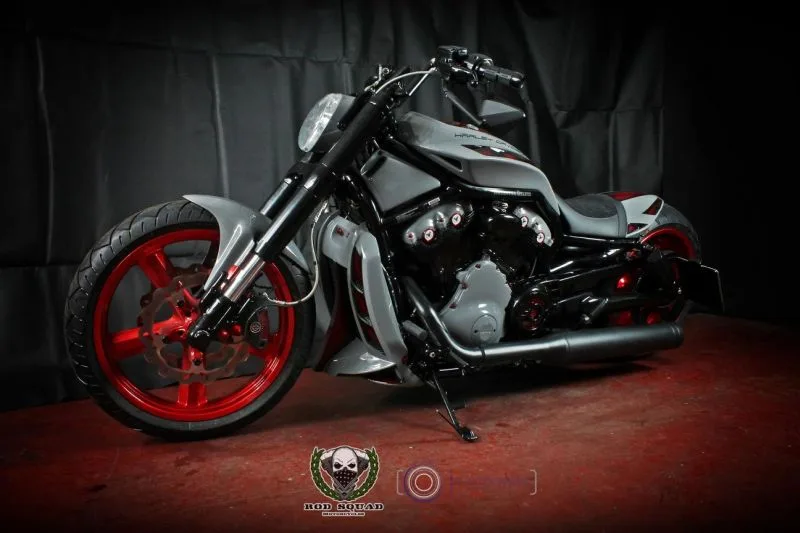

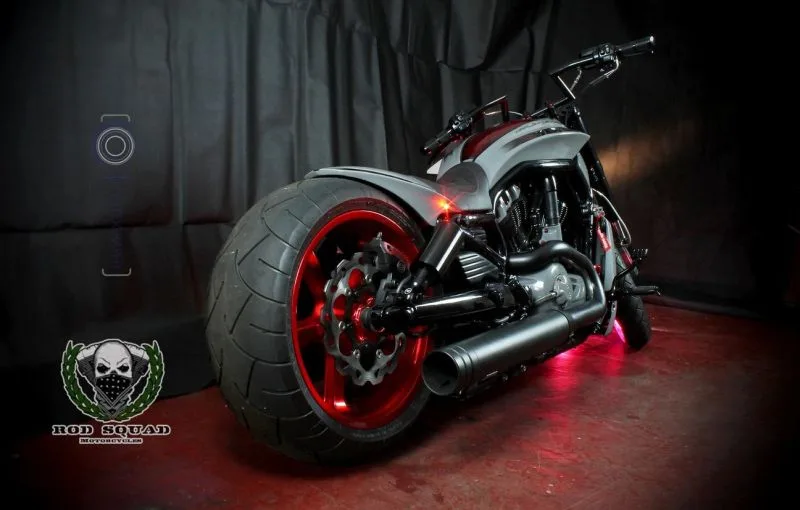

Harley-Davidson V-Rod ‘RAYnMan’ by Rod Squad Motorcycles
Rod Squad Motorcycles
H-D V-Rod parts
- Rims painted in candyrot

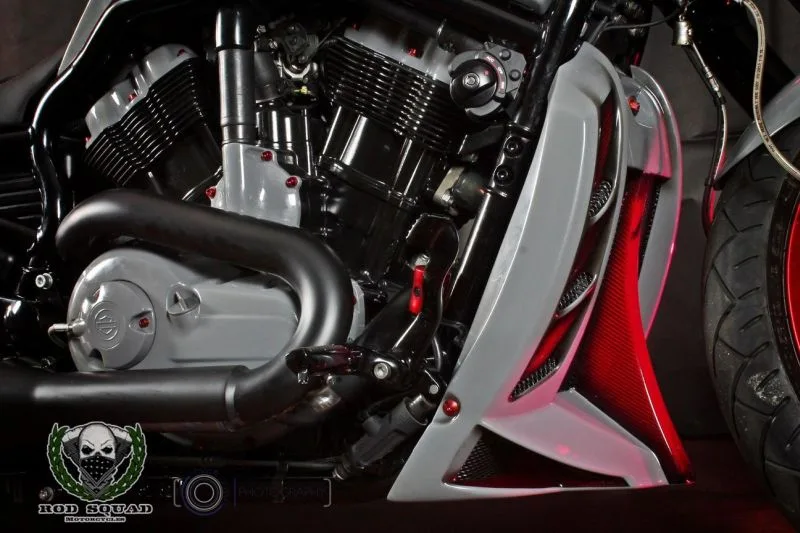

- Engine and all polished attachments painted in gloss black
- Engine cover painted in gray

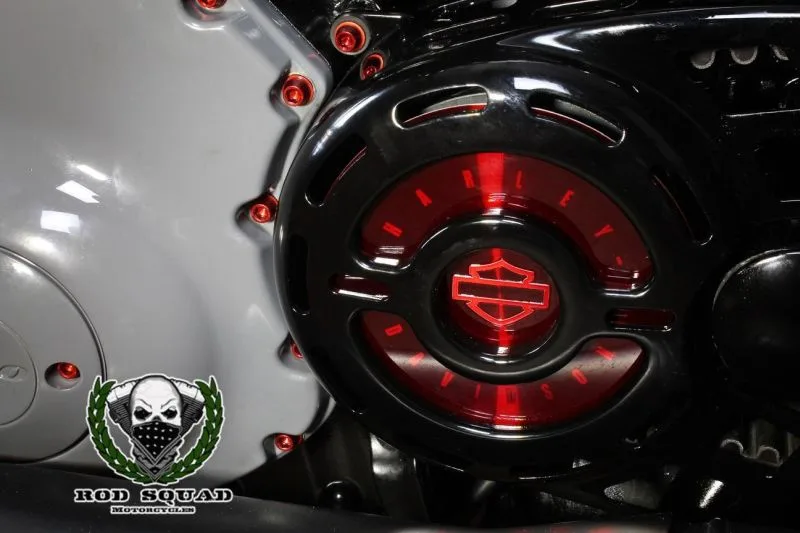

- all engine screws anodized red
- complete RAY body kit consisting of airbox cover, rear fender, radiator cover
- Body kit with red real carbon inlays
- Front fender Speed Demon “Monza”
- LSL riser
- Fehling Z-Bar handlebar with internal electronics

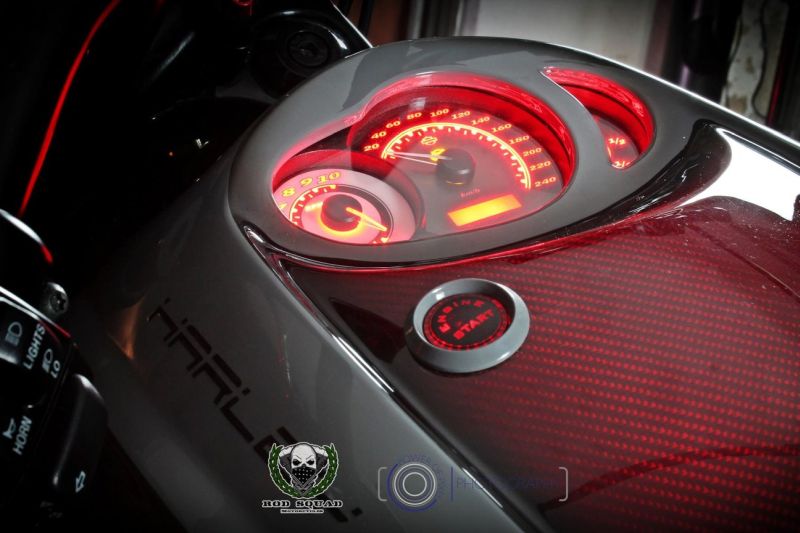

- Start button in the airbox cover
- side license plate holder
- Arnott Airride custom order
- Jekill & Hyde adjustable flap exhaust system
- Galfer Wave brake discs front and rear
- Speed Demon fork cover kit
- Wunderkind hemisphere grip set
- Dr.Mechanik front indicator kit

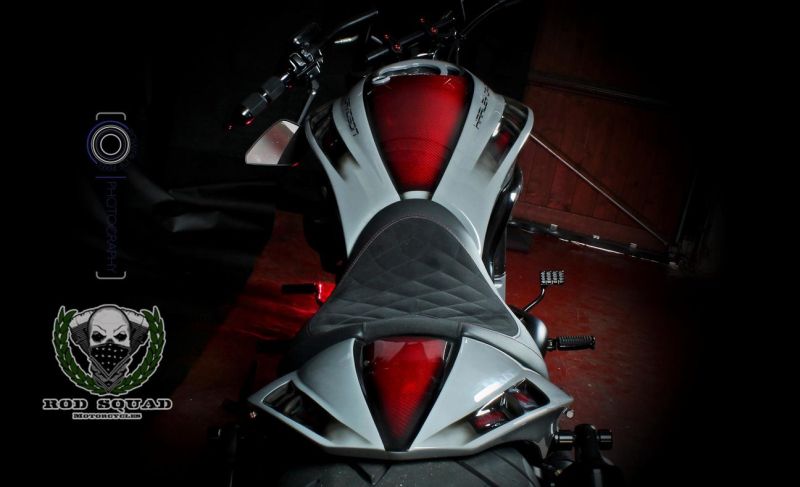

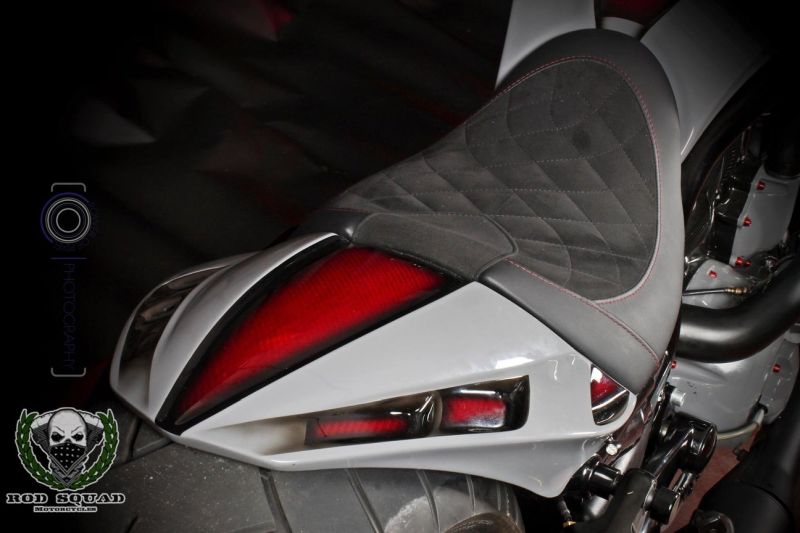

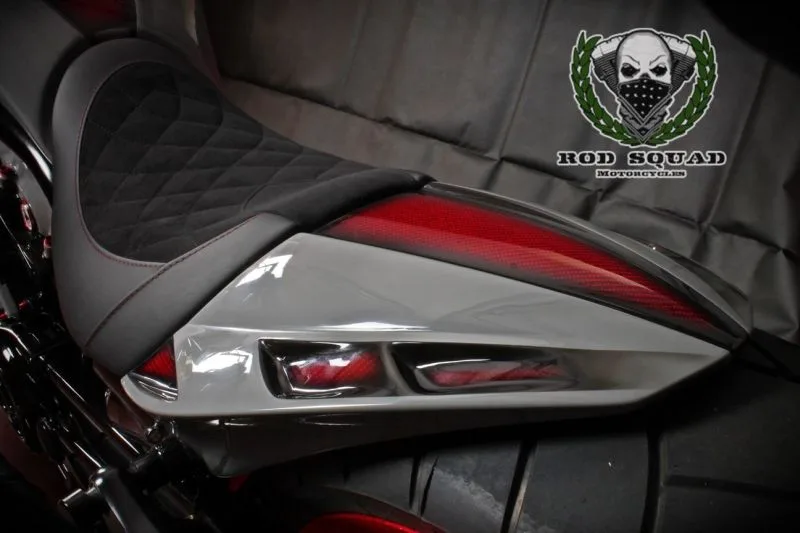

- Custom-made seat in leather / Alcantara with red stitching

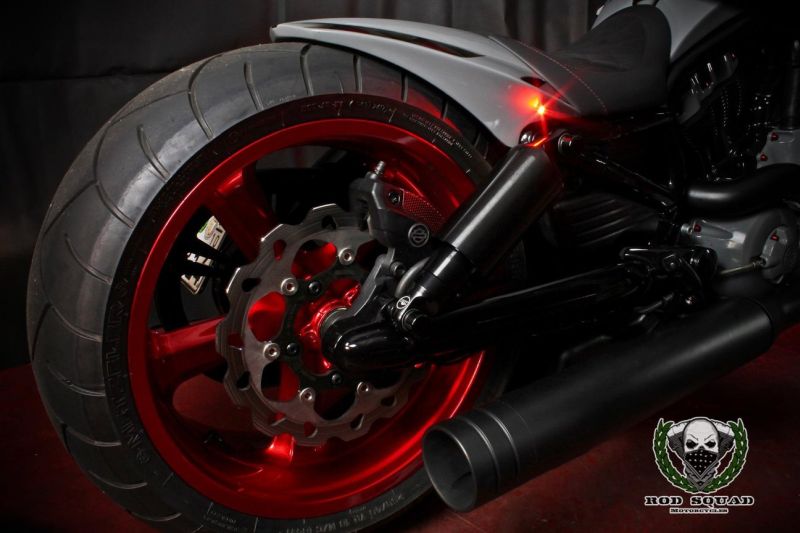

- Conversion to 260 Metzler rear tires
- Custom-made lamp holder for VRod lamp
- milled pully cover
- Kellermann Atto indicator / taillight / brake light combination rear
- milled and painted pully at the back
- Conversion to 28 teeth Pully front
- Columbia mirror 2
- red anodized ABM brake fluid reservoir
H-D V-Rod specs
Engine specs
- TYPE Liquid-cooled, Revolution, 60 V-Twin
- DISPLACEMENT 1247 cm3
- BORE X STROKE 4.1×0 in OR 104 mm
- COMPRESSION RATIO 11.5:1
- HORSEPOWER -/- KW(hp)/RPM
- TORQUE 85/6500 lb-ft/RPM OR 115/6500 Nm/RPM
- FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)
Transmission specs
- GEARBOX 6-Speed
- CLUTCH Wet Multi-disc
- PRIMARY DRIVE-FINAL DRIVE Chain
Chassis specs
- FRAME Steel
- FRONT SUSPENSION Telescopic fork
- REAR SUSPENSION Dual shock adjustable
- FRONT BRAKE 4-piston
- REAR BRAKE 4-piston floated caliper
Dimension specs
- OVERALL LENGTH 94.9 in OR 2410 mm
- OVERALL WIDTH-SEAT HEIGHT 27.8 in OR 706 mm
- WEELBASE 66.9 in OR 1699 mm
- GROUND CLEARANCE 4.1 in OR 104 mm
- WEIGHT 677 lbs OR 307 kg
- FUEL CAPACITY 5 gallons OR 18.9 L
Tyres specs
- FRONT 120/70ZR-19 60W
- REAR 240/40R-18 79V
