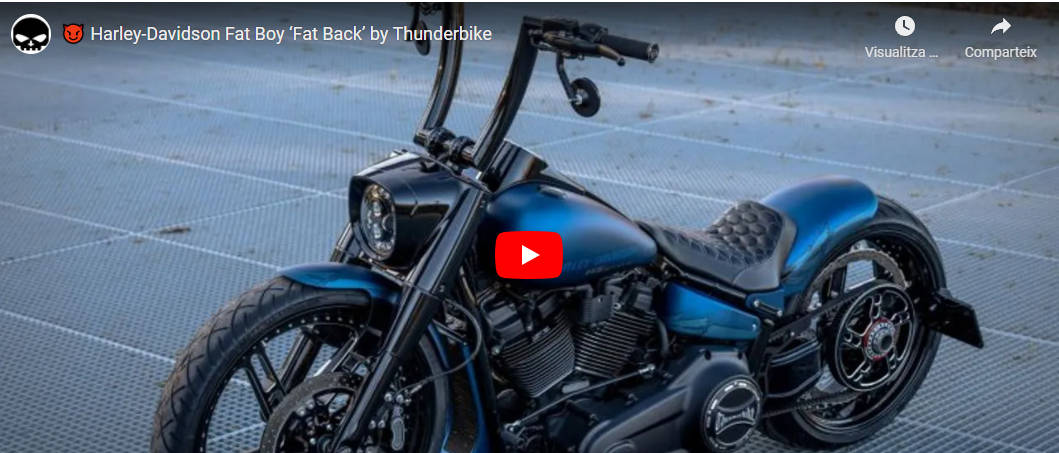

Harley-Davidson Fat Boy ‘Fat Back’ by Thunderbike

Harley-Davidson Fat Boy ‘Fat Back’ by Thunderbike

Harley-Davidson Fat Boy ‘Fat Back’ by Thunderbike

0

Thunderbike

[email protected]

Geolocation Hamminkeln

GERMANY

HARLEY-DAVIDSON FAT BOY

APE HANGER

With this limited anniversary edition of the Fat Boy to the 115th of the company has anything but limitation in mind!

You can recognize the 115th birthday by the paint in Legend Blue Denim and the logo in a somewhat snotty tattoo style. Master Kruse carried it on brilliantly on our newly added parts like the fenders, the spoiler and the cover.

Our popular Force style is again characterized by the single-sided swingarm, wheels in 21 and 23″ (orig. 18″), air ride and lowering at the front and rear, and high handlebars.

The exposed fat rear tire burns with the 131 cui kit from Screamin’ Eagle with round about 130 hp in the street. Thus, this fine bullet goes to a Dutch customer, a registration for German roads is still in work.

H-D Fat Boy parts

  • Thunderbike Single-Side Swingarm Kit 21” Alu
  • Thunderbike Big Speed wheel
  • Thunderbike Pulley Big Speed
  • Thunderbike Brake Disc Floated Big Speed 340mm
  • Thunderbike Rear Fender Steel 260 mm
  • Thunderbike Air Ride Suspension Kit
  • Thunderbike Seat Plate
  • Thunderbike Chin Fairing GP Style Long
  • Harley-Davidson Screamin’ Eagle Stage IV 131 ci Kit black/highlighted
  • Harley-Davidson Screamin’ Eagle Heavy Breather Elite Air Cleaner black
  • Thunderbike License Plate Frame Inside Plate
  • Thunderbike License Plate Lighting
  • Thunderbike Front Fender 23” Fiberglass
  • Thunderbike Tele Fork Lowering Kit
  • Thunderbike Toppers Base
  • Harley-Davidson Hand Control Lever Kit black
  • Thunderbike Mirror Joker
  • Thunderbike Front Axle Cover-Set
  • Thunderbike Axle Cover Swingarm left
  • Thunderbike Cover Tank to Seat, black
  • Thunderbike Derby Cover Torque Logo
  • Thunderbike Turn Signals Stripe LED with Housing
  • Thunderbike Ignition Coil Relocation Kit for Air-Ride switch, black
  • Thunderbike Tank Mount black
  • Thunderbike Hydraulic clutch Conversion Kit black
  • Küryakyn Kool Kaps Engine Kit gloss black
  • Metzeler Cruisetec Rear Tire 260/35VR21 83V
  • Metzeler ME888F Front Tire 130/60B23 M/C TL 65H
  • Dr. Jekill & Mr. Hyde Exhaust System
  • Kruse Design Special Custom Painting

H-D Fat Boy specs

Engine specs

TYPE Air-cooled, Screamin’ Eagle Twin Cam 110B
DISPLACEMENT 1801 cm3
BORE X STROKE 4.0×4.4 in OR 102 mm
COMPRESSION RATIO 9.2:1
HORSEPOWER -/- KW(hp)/RPM
TORQUE 108/4000 lb-ft/RPM OR 146/4000 Nm/RPM
FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)

Transmission specs

GEARBOX 6-Speed
CLUTCH Wet Multi-disc
PRIMARY DRIVE Gears
FINAL DRIVE Chain

Chassis specs

FRAME-FRONT SUSPENSION Telescopic fork
REAR SUSPENSION Dual shock adjustable
FRONT BRAKE 4-piston fixed
REAR BRAKE 2-piston floated caliper

Dimension specs

OVERALL LENGTH 93.9 in OR 2385 mm
OVERALL WIDTH-SEAT HEIGHT 26.4 in OR 671 mm
WEELBASE 64.2 in OR 1631 mm
GROUND CLEARANCE 4.9 in OR 124 mm
WEIGHT 734 lbs OR 333 kg
FUEL CAPACITY 5 gallons OR 18.9 L

Tyres specs

FRONT 140/75R17 67V
REAR 200/55R17 78V
