]]>Builder COMBAT MOTORS
Contact [email protected]
Country United States
Model X-132 Hellcat Combat
Style Conceptbike
2620 6th Ave South Birmingham, AL 35233
Combat parts:
- ENGINE POWER Torque: 160 Foot Pounds; Horsepower: 160 BHP
- UNITIZED CASE Combat Optimized Machined 6061 Aircraft-Grade Aluminum Case
- TRANSMISSION Combat Optimized 5-Speed with Land Speed Racer Gearing; Patented Output
Shaft Bearing Support System - BRAKES Front: Dual Beringer 4 Piston AEROTEC Radial Calipers; Dual Beringer
AERONAL Floating Ductile Iron Rotors; Rear: Single 2 Piston Brembo
Monobloc Caliper; Cross-Drilled Brembo Stainless Steel Disc - LIGHTING 5.75” Round LED Headlamp; Integrated High Beam, Low Beam, Running
Lights, LED Tail Lamp, Brake, Running Lights, Blinker System - FUEL CELL Confederate Proprietary Design; Deep-drawn Steel; 4.75 Gallon Capacity;Painted Combat Matte Green with personalized graphics
- INSTRUMENTATION Motogadget Precision Analogue Tachometer; Digital Speed, Status
- CHASSIS 3” 120 Wall Hard Steel Backbone; 3” 120 Wall Hard Steel Down Tube; Hand Tig
Welded Fabrication - SUSPENSION Front: Custom WP 48mm Fork; Adjustable Rebound and Compression; Rear:
Custom Race Tech Coil-Over-Shock; Adjustable Rebound and Compression - WHEELS BlackStone Tek Carbon Fiber; Front: 3.5” x 17”; Rear: 6” x 17”
- TIRES Front: Pirelli Diablo Rosso 120/70 ZR; Rear: Pirelli Diablo Rosso 190/55 ZR
- GEOMETRY Wheelbase: 66.5”; Rake: 29°; Trail: 3.9”
- TAILORED ERGONOMICS Controls: Mid-Rear; Handlebar: 70mm Rise, 55mm Sweep; Seating: Solo Combat
Reverse Hide Racing Saddle; Seat Height: 28”
La entrada X-132 Hellcat Combat by Combat motors aparece primero en DARK KUSTOM.
]]>La entrada Harley Davidson Street 500 tracker “The Admiral” by Smoked Garage aparece primero en DARK KUSTOM.
]]>
Builder SMOKED GARAGE
Contact [email protected]
Country Australia
Model Street 500
Style Tracker

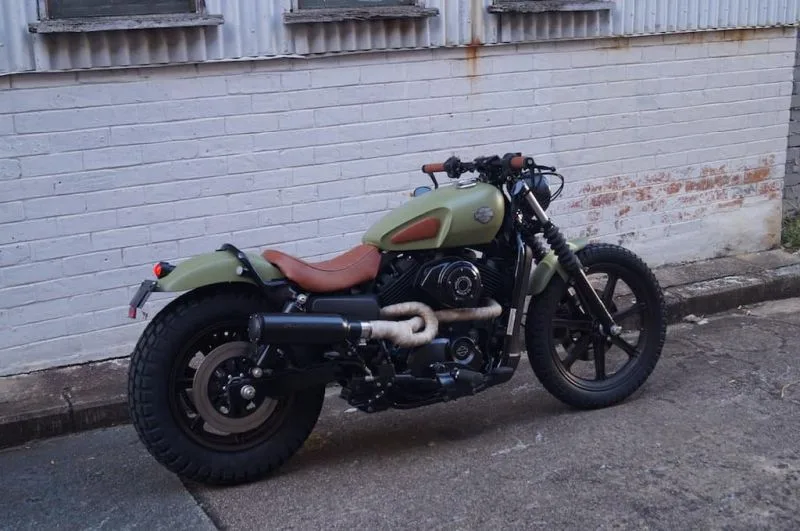

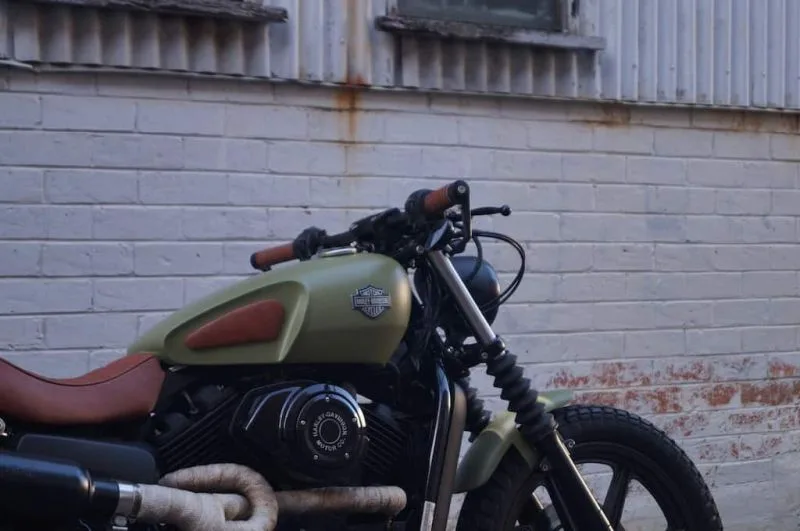

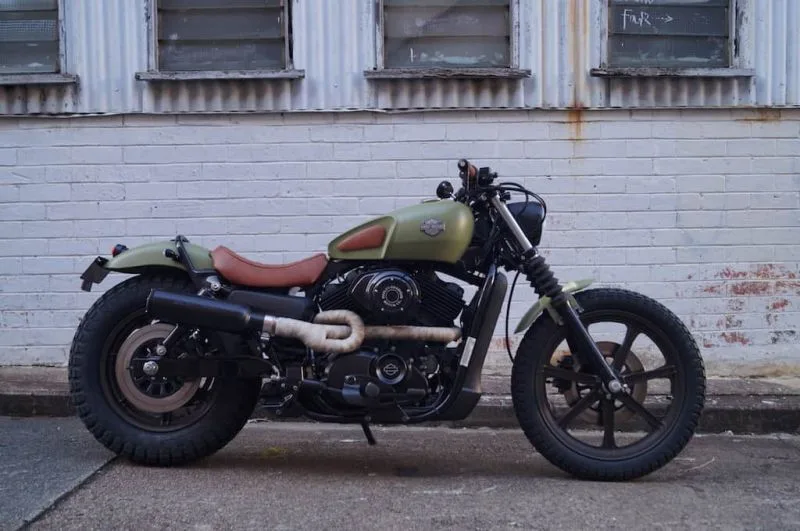

Look alive, Sergeant! This army themed bobber/tracker hybrid is locked and ready for duty – SIR!!
Built to tackle and tame the urban jungle, this unique custom took inspiration from the tough, rugged military bikes of decades gone by, with added modern flair. Part bobber, part tracker, all head turner.
It’s one thing to draw up a design on paper, it’s a whole other challenge actually making it a reality. A lot of fabrication and modification went into this build, with a few changes along the way. But that’s all part of the game, and why we do what we do!!
Street tracker parts
- Alloy wheels (19″ front/16″ rear) wrapped in AllState Dirtman tyres

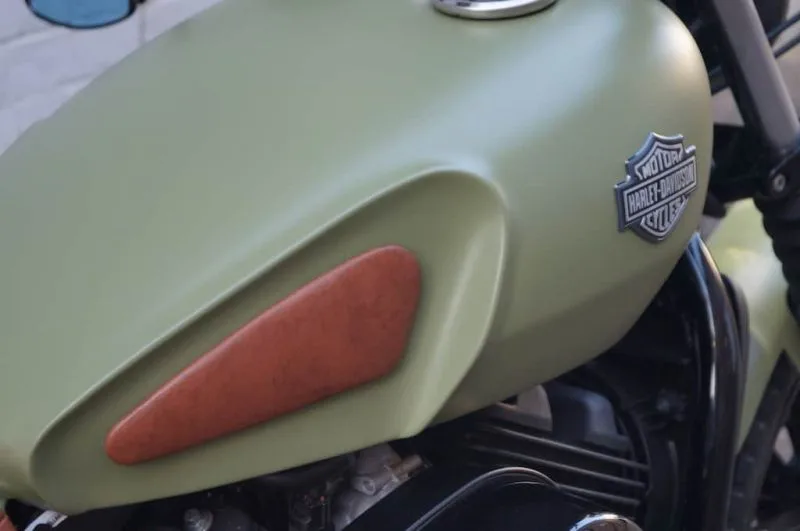

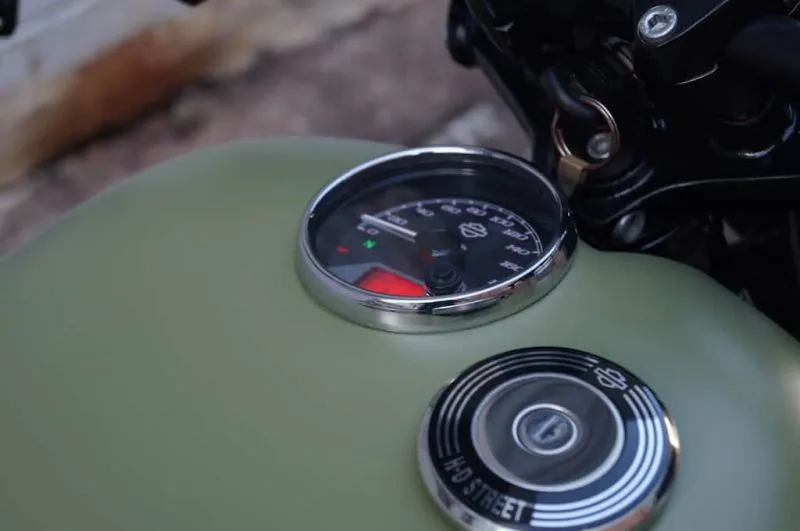

- Modified fuel tank – sunken gauge, scalloped sides
- Custom Army Green paintjob

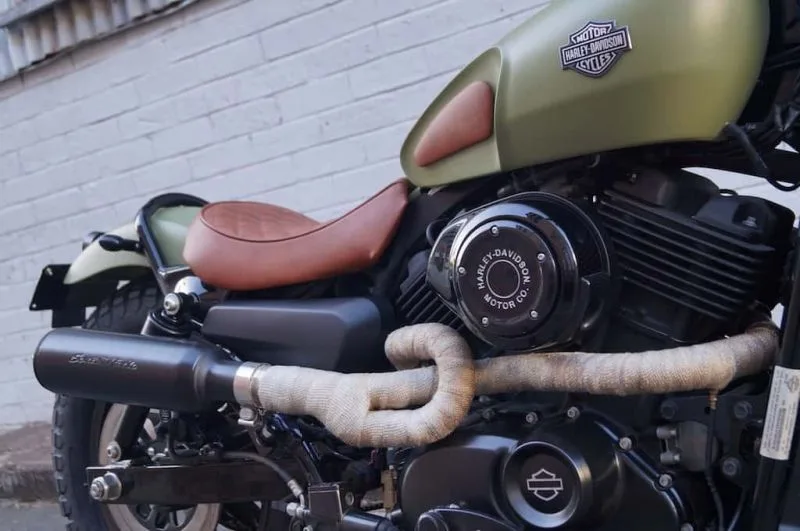

- Hand made custom exhaust, SuperTrapp muffler, heatwrapped

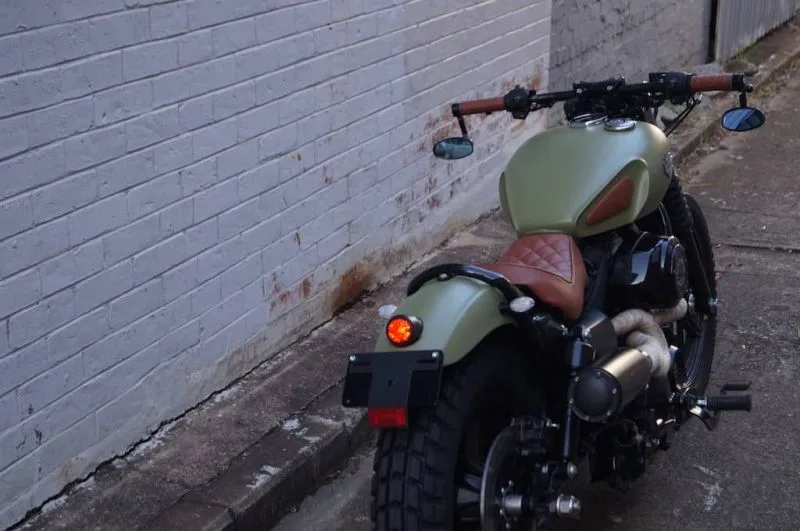

- Hand made custom seat with matching knee pads
- Modified subframe
- Slammed shorty rear shocks
- Custom front & rear fenders

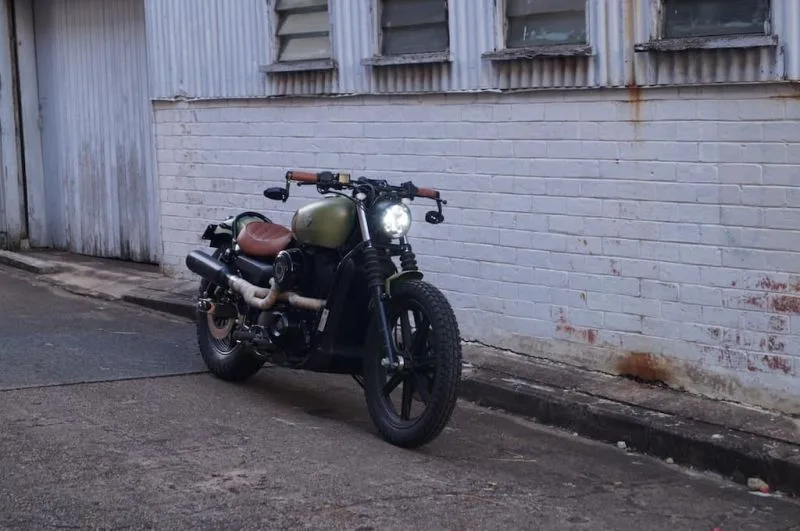

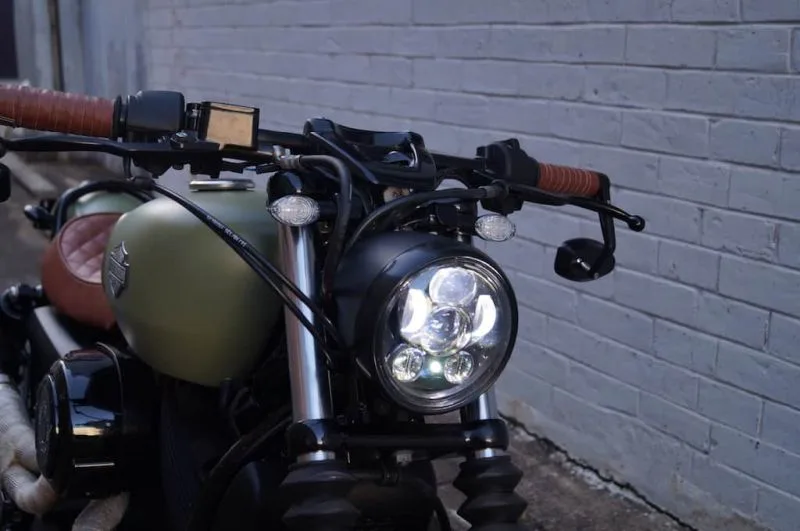

- HogLights 5.75″ LED headlight
- LED Indicators
- Vintage style taillight
- Drag bars, Biltwell grips, bar end mirrors
- Aftermarket Air cleaner/cover
✅ Street 500 specs
ENGINE
- ENGINE1 Liquid-cooled, Revolution X™ V-Twin
- BORE 2.72 in.
- STROKE 2.6 in.
- DISPLACEMENT 494 cc (30 cu in)
- COMPRESSION RATIO 10.5:1
- FUEL SYSTEM3 Electronic Sequential Port Fuel Injection (ESPFI)
- EXHAUST Black two into one
DIMENSIONS
- LENGTH 87.2 in.
- SEAT HEIGHT, LADEN7 25.7 in.
- SEAT HEIGHT, UNLADEN 28.3 in.
- GROUND CLEARANCE 5.7 in.
- RAKE (STEERING HEAD) (DEG) 32
- TRAIL 4.5 in.
- WHEELBASE 59.8 in.
- TIRES, FRONT SPECIFICATION 100/80-17
- TIRES, REAR SPECIFICATION 140/75 R15
- FUEL CAPACITY 3.5 gal.
- OIL CAPACITY (W/FILTER) 3.3 qt.
- WEIGHT, AS SHIPPED 492 lb.
- WEIGHT, IN RUNNING ORDER 514 lb.
PERFORMANCE
- ENGINE TORQUE TESTING METHOD J1349
- ENGINE TORQUE2 29.5 ft-lb
- ENGINE TORQUE (RPM) 3,750
- LEAN ANGLE, RIGHT (DEG.) 28.5
- LEAN ANGLE, LEFT (DEG.) 28.5
- FUEL ECONOMY TESTING METHOD Estimated City/Hwy
- FUEL ECONOMY5 64 mpg
DRIVETRAIN
- PRIMARY DRIVE Gear, 36/68 ratio
- GEAR RATIOS (OVERALL) 1ST 14.272
- GEAR RATIOS (OVERALL) 2ND 10.074
- GEAR RATIOS (OVERALL) 3RD 7.446
- GEAR RATIOS (OVERALL) 4TH 6.006
- GEAR RATIOS (OVERALL) 5TH 5.037
- GEAR RATIOS (OVERALL) 6TH 4.533
CHASSIS
- WHEELS, FRONT TYPE9 Black, 7-spoke Cast Aluminum
- WHEELS, REAR TYPE Black, 7-spoke Cast Aluminum
- BRAKES, CALIPER TYPE 2-piston floated front and rear
ELECTRIC
- LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
- GAUGES 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
La entrada Harley Davidson Street 500 tracker “The Admiral” by Smoked Garage aparece primero en DARK KUSTOM.
]]>La entrada Harley Davidson Dyna Fat Bob “Military’ by Thunderbike aparece primero en DARK KUSTOM.
]]>
- Fuel Tank Thunderbike Custom Alu
- Suspension Thunderbike Air Ride Suspension Kit
- Forward Control Kit Thunderbike Base Rubber
- Rear Fender Thunderbike Steel & Custom Seat
- Side Mount License Bracket Thunderbike short
- Exhaust System Thunderbike Dragonfly
- Air Cleaner H-D Heavy-Breather
- Handlebar Thunderbike Iron Side
- Triple Tree Kit Thunderbike Tube 49
- Turn Signals Kellermann Rhombus
- Wheels & Headlamp OEM Fat Boy
- Skull Cover H-D
THUNDERBIKE VIDEOS
La entrada Harley Davidson Dyna Fat Bob “Military’ by Thunderbike aparece primero en DARK KUSTOM.
]]>La entrada Yamaha Warrior Military Bike ‘Achtung Panzer’ by Burmeisters aparece primero en DARK KUSTOM.
]]>Burmeisters
La entrada Yamaha Warrior Military Bike ‘Achtung Panzer’ by Burmeisters aparece primero en DARK KUSTOM.
]]>La entrada Indian Scout 1130 ‘Scout army’ by SMC Design aparece primero en DARK KUSTOM.
]]>
Builder SMC DESIGN
Contact [email protected]
Country Austria
Model Indian Scout
Style Bobber
