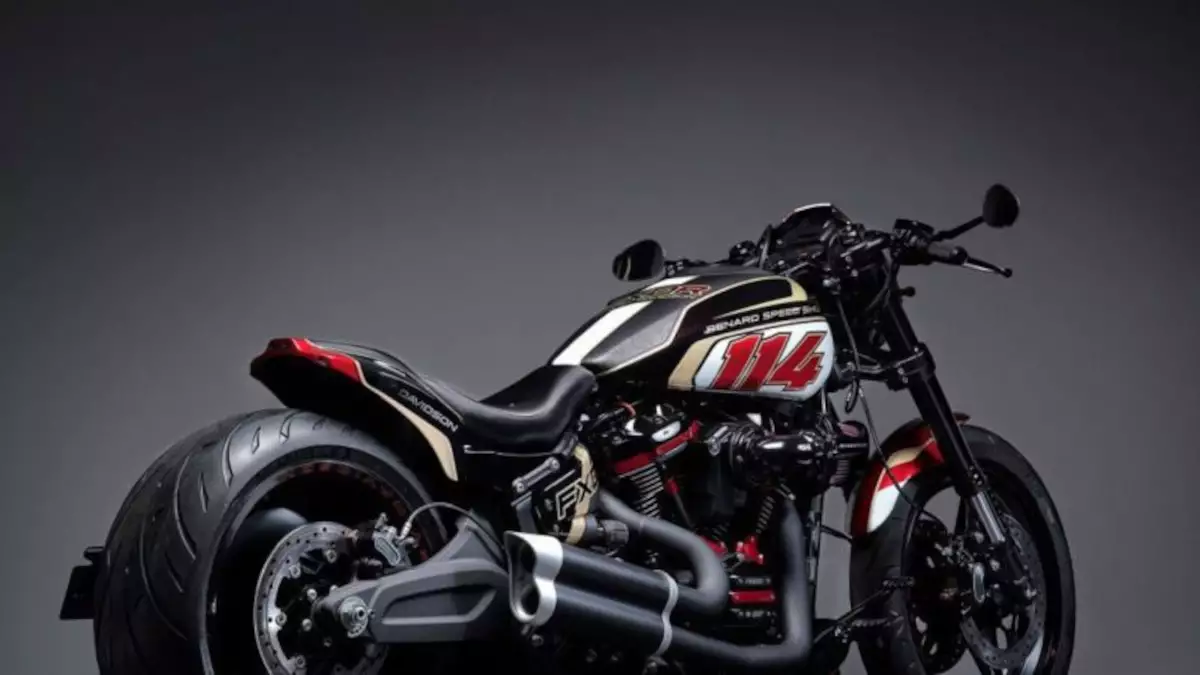

HD SOFTAIL FXDR 114

H-D FXDR specs

Part of the Softail category, the 2018 Harley-Davidson FXDR 114 has been designed using plenty of alloy and composite components to reduce the bike’s weight, including an all-new aluminum swingarm and subframe.

Engine Specs

Type Milwaukee-Eight 114
Displacement 1868 Cm3
Bore X Stroke 4.0X4.5 In Or 102 Mm
Compression Ratio 10.5:1
Horsepower -/- Kw(Hp)/Rpm
Torque 119/3500 Lb-Ft/Rpm Or 161/3500 Nm/Rpm
Fuel System Electronic Sequential Port Fuel Injection (Espfi)

Transmission Specs

Gearbox 6-Speed Cruise Drive
Clutch Wet Multi-Plate
Primary Drive –
Final Drive Chain

Chassis Specs

Frame Steel Tubular Frame
Front Suspension Single Cartridge 43 Mm Inverted With Aluminum Fork Triple Clamps; Triple Rate Spring
Rear Suspension Hidden, Free Piston, Coil-Over Monoshock; 43 Mm Stroke; Toolless Hydraulic Preload Adjustment
Front Brake Double Discs 300 Mm
Rear Brake Single Disc 292 Mm

Dimension Specs

Overall Length 95.1 In Or 2416 Mm
Overall Width 36.6 In Or 930 Mmseat Height28.5 In Or 724 Mm
Weelbase 68.4 In Or 1737 Mm
Ground Clearance 5.3 In Or 135 Mm
Weight 668 Lbs Or 303 Kg
Fuel Capacity 4.4 Gallons Or 16.7 L

Tyres Specs

Front 120/70Zr-19 60W
Rear 240/40R-18 79V
