Harley-Davidson Orange Breakout by Melk
8.4

Harley-Davidson Orange Breakout by Melk

Harley-Davidson Orange Breakout by Melk

0

Melk

[email protected]

Geolocation Ecquevilly

FRANCE

HARLEY-DAVIDSON BREAKOUT

CRUISER

H-D Breakout parts

Accessories

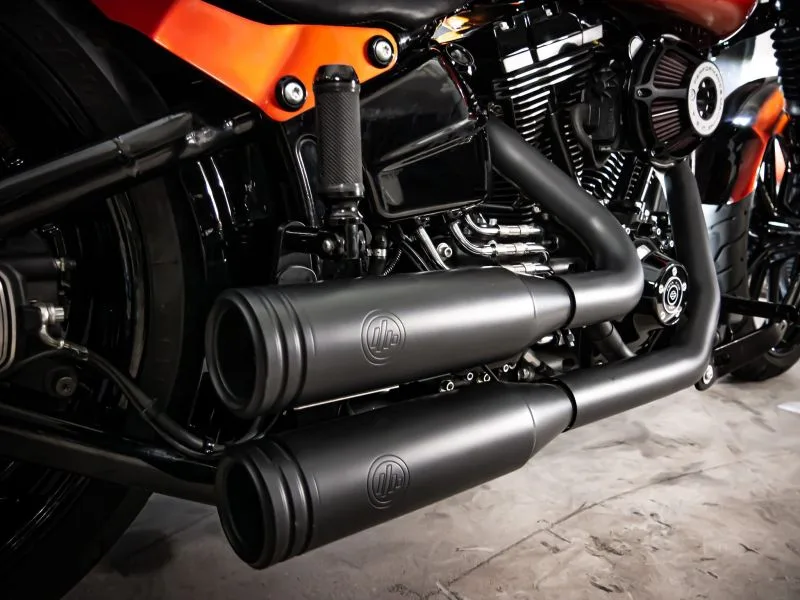

  • 3-position valve exhaust – KessTech
  • Rear mudguard (wheel washer type) – MELK Painting & Motorcycles

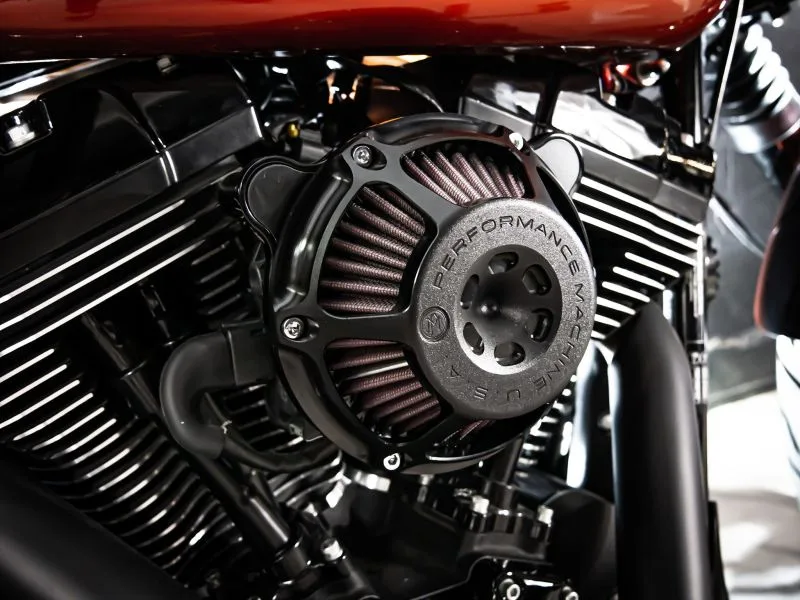

  • Air filter – Machine Performance
  • Clog – Thunderbike
  • Tank Console + Hoses – MELK Painting & Motorcycles
  • Cartography – Screaming Eagle
  • Tire 260 – Metzeler
  • Logos Reservoir – MELK Painting & Motorcycles

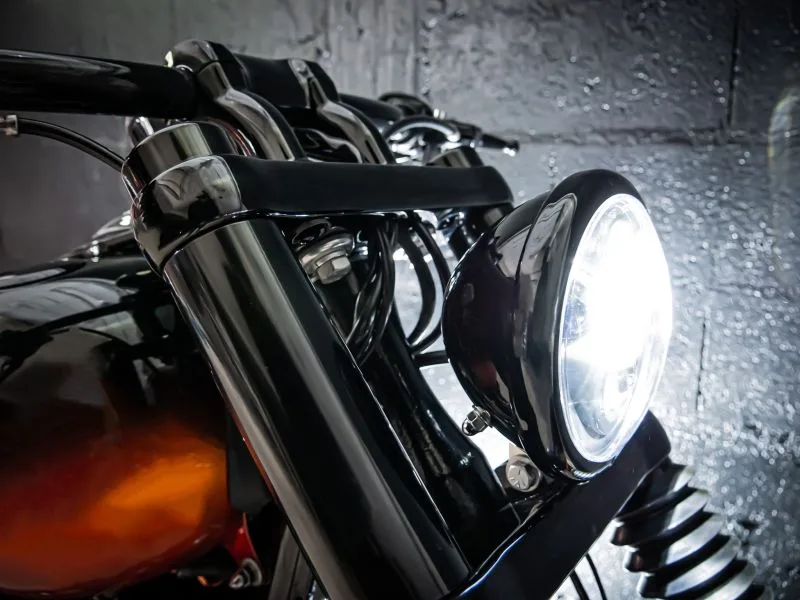

  • Front LED lights black background
  • Fork Top Tube
  • Fork lower gussets
  • Adjustable lowering kit
  • Mirrors Low position
  • Mini LED turn signals – Thunderbike

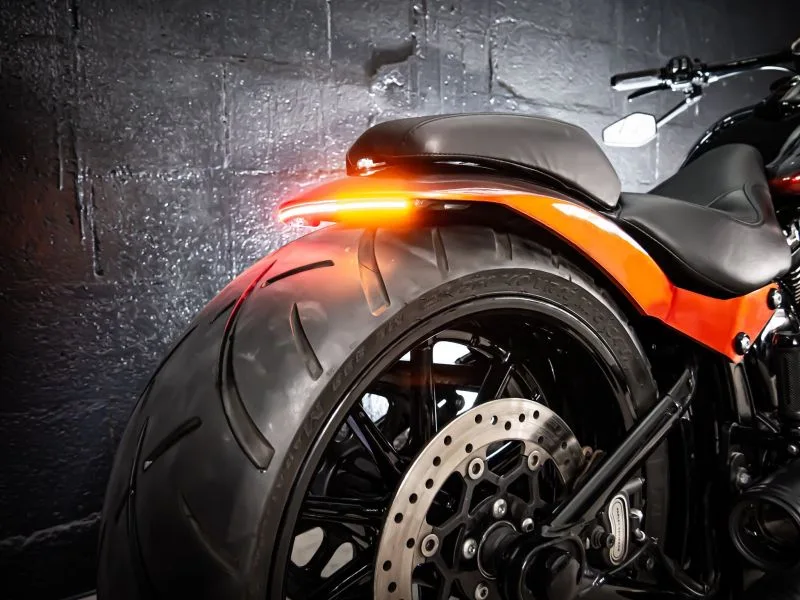

  • Ar LED strip (3 in 1 – Night light, stop and turn signals) – MELK

Painting & Motorcycles

  • Equalizer Av and Ar – Thunderbike
  • Machine performance grips
  • Machine performance selector
  • Front & Rear Foot Cleat – Performance Machine
  • Front & Rear wheel axle – HD
  • Brake Pedal Pad – HD
  • Remote license plate + LED license plate light – Thunderbike
  • Pop-up cap – HD
  • Black license plate

Aesthetic Preparation / Painting

  • The paint was made with 2 shades: Vivid Black HD Brillant and Candy Orange Brillant.
  • The gradient technique was used to bring finesse between two colors with strong contrasts.

Work completed

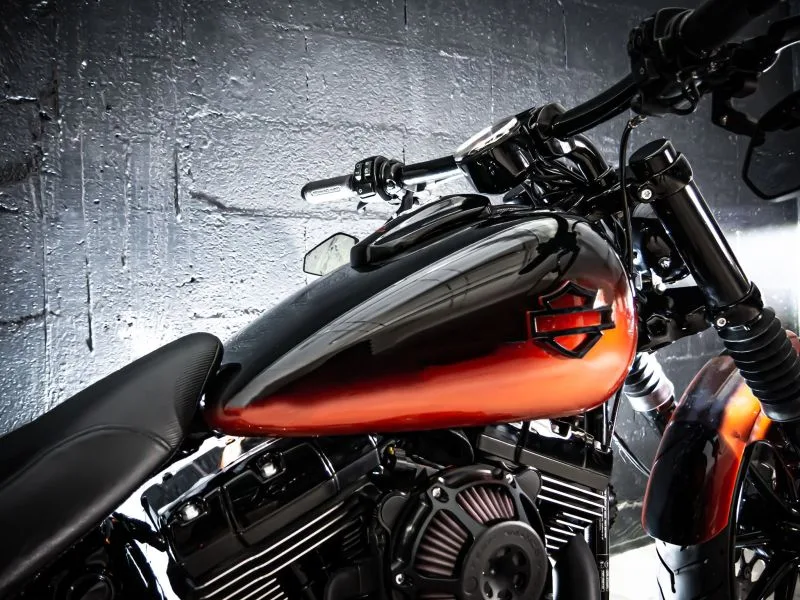

  • Custom decoration tank – Multi-tone gradient technique
  • Custom Bar & Shield logo creation – Vivid Black HD decoration – Multi-tone gradient technique
  • and Orange Candy contours
  • Front mudguard Cutting, lowering and decoration – Multi-tone gradient technique

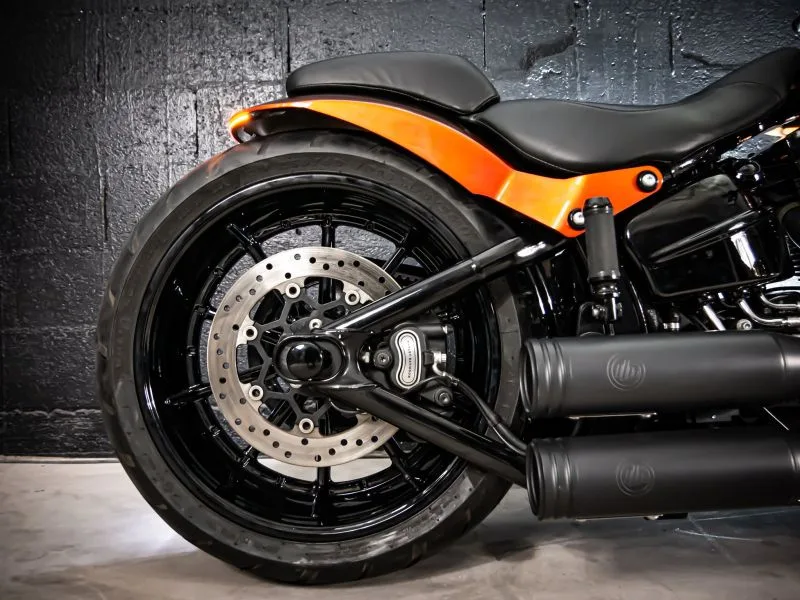

  • Mudguard Ar Decoration – Multi-tone gradient technique
  • Realization of an LED support under the rear mudguard
  • Front mudguard cut and lowered custom decoration – Multi-tone gradient technique
  • Smoothing of the Reservoir to remove the original rod

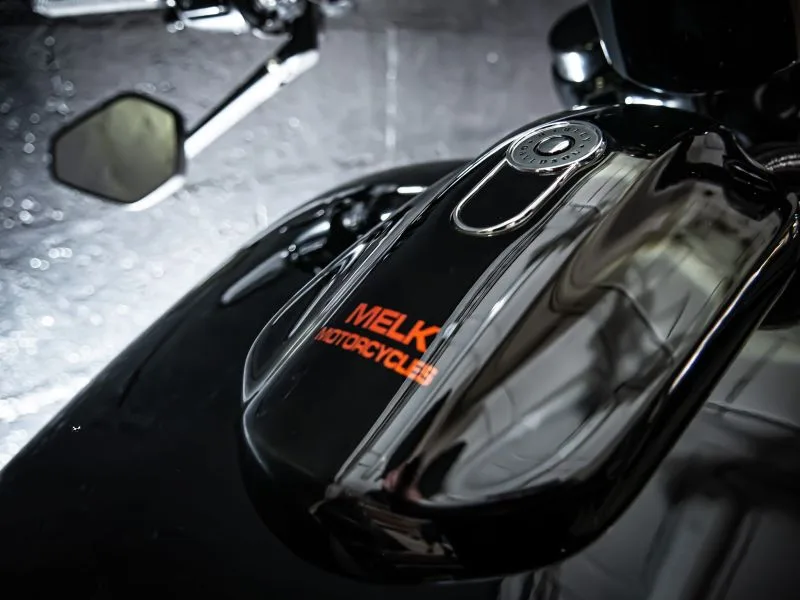

  • Modified tank console – MELK Painting & Motorcycles marking
  • Creation of two Black hoses for the passage of the cables of the tank

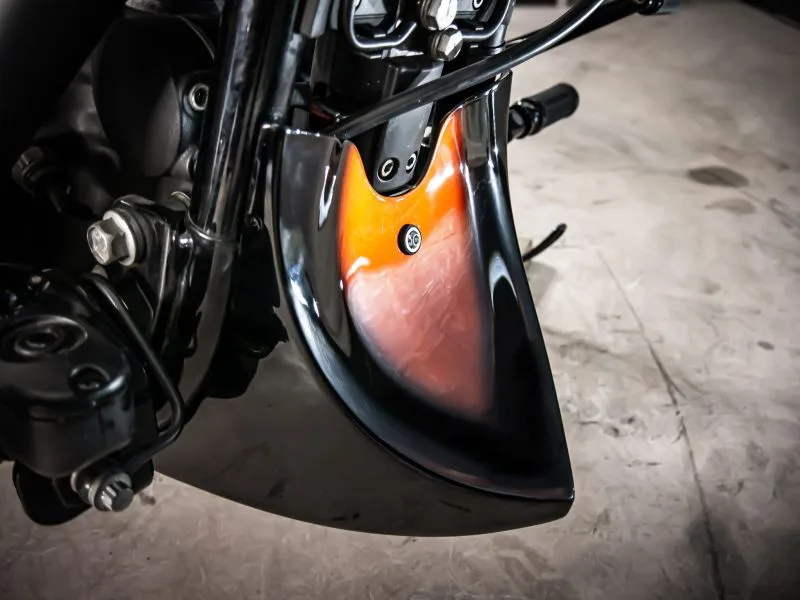

  • Clog Decoration – Multi-tone gradient technique
  • Front and Rear Rims – Vivid Black HDlack HD
  • Complete Fork – Vivid Black HD
  • Upper and Lower Triple Tree Clamp – Vivid Black HD
  • Entourage Phare Av – Vivid Black HD
  • Riser – Vivid Black HD

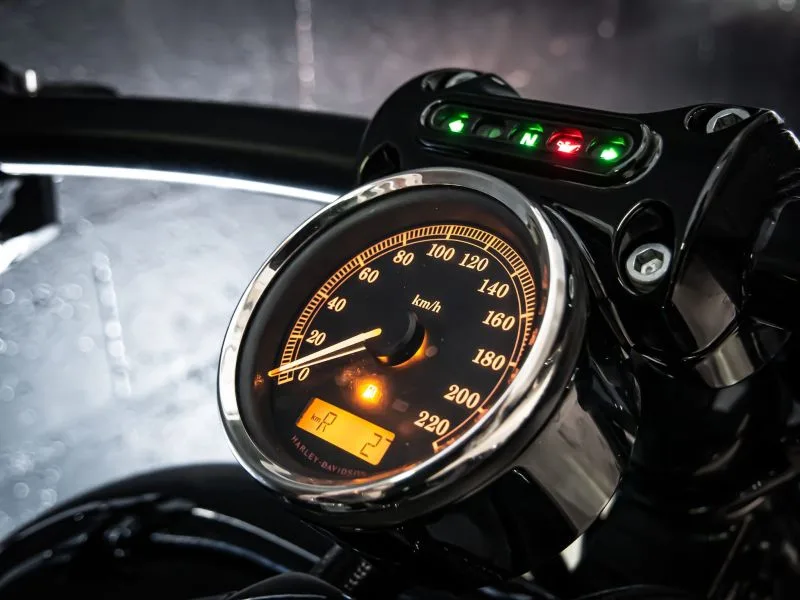

  • Speedometer support – Vivid Black HD
  • Brake and Clutch Levers – Vivid Black HD
  • Horn – Vivid Black HD
  • Top Rocker Covers – Vivid Black HD
  • Low Rocker Covers – Vivid Black HD Mate
  • Rocker Rod Bracket – Vivid Black HD
  • Rocker Rods – Vivid Black HD Mate
  • Primary Housing – Vivid Black HD
  • Derby Cover – Vivid Black HD
  • Time Cover – Vivid Black HD
  • Carter Gearbox – Vivid Black HD
  • Crankcase – Vivid Black HD
  • Kickstand and Brake Pedal – Vivid Black HD
  • Selectors – Vivid Black HD
  • Rear Mudflap – Vivid Black HD
  • Selector Returns – Vivid Black HD
  • Upper belt cover – Vivid Black HD
  • Lower belt cover – Vivid Black HD
  • Oil tank filler cap – Vivid Black HD

H-D Breakout specs

Engine Specs

  • Type Air-Cooled, Twin Cam 103B
  • Displacement 1690 Cm3
  • Bore X Stroke 3.9×4.4 In Or 99 Mm
  • Compression Ratio 9.6:1
  • Horse Power / Kw(Hp)/Rpm
  • Torque 97/3250 Lb-Ft/Rpm Or 132/3250 Nm/Rpm
  • Fuel System Electronic Sequential Port Fuel Injection (Espfi)

Transmission Specs

  • Gearbox 6-Speed, Manual
  • Clutch Wet Multi-Disc, Manual
  • Primary Drive Chain
  • Final Drive Belt

Chassis Specs

  • Frame Steel
  • Front Suspension Telescopic Fork
  • Rear Suspension Dual Shocks
  • Front Brake Disc, 4-Piston Caliper
  • Rear Brake Disc, 2-Piston Caliper

Dimension Specs

  • Overall Length 96.3 In Or 2446 Mm
  • Overall Width –
  • Seat Height 26 In Or 660 Mm
  • Weelbase 67.3 In Or 1709 Mm
  • Ground Clearance 4.7 In Or 119 Mm
  • Weight 679 Lbs Or 308 Kg
  • Fuel Capacity 5 Gallons Or 18.9 L

Tyres Specs

  • Front 130/60B21 63H
  • Rear 240/40R18 79V
