Builder DD DESIGNS

Contact [email protected]

Country United States

Model H-D V-Rod

Style Muscle

H-D V-Rod specs

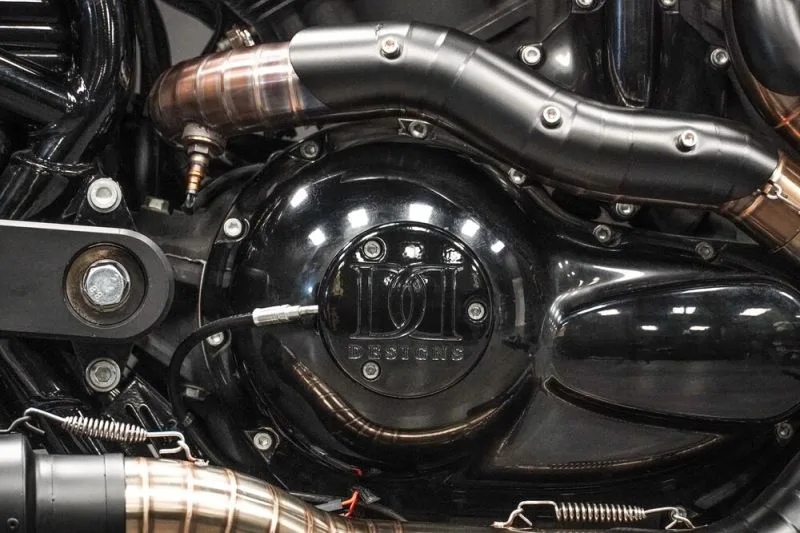

Engine specs

• TYPE Liquid-cooled, Revolution, 60 V-Twin
• DISPLACEMENT 1247 cm3
• BORE X STROKE 4.1×0 in OR 104 mm
• COMPRESSION RATIO 11.5:1
• HORSEPOWER -/- KW(hp)/RPM
• TORQUE 85/6500 lb-ft/RPM OR 115/6500 Nm/RPM
• FUEL SYSTEM Electronic Sequential Port Fuel Injection (ESPFI)

Transmission specs

• GEARBOX 6-Speed
• CLUTCH Wet Multi-disc
• PRIMARY DRIVE-FINAL DRIVE Chain

Chassis specs

• FRAME Steel
• FRONT SUSPENSION Telescopic fork
• REAR SUSPENSION Dual shock adjustable
• FRONT BRAKE 4-piston
• REAR BRAKE 4-piston floated caliper

Dimension specs

• OVERALL LENGTH 94.9 in OR 2410 mm
• OVERALL WIDTH-SEAT HEIGHT 27.8 in OR 706 mm
• WEELBASE 66.9 in OR 1699 mm
• GROUND CLEARANCE 4.1 in OR 104 mm
• WEIGHT 677 lbs OR 307 kg
• FUEL CAPACITY 5 gallons OR 18.9 L

Tyres specs

• FRONT 120/70ZR-19 60W
• REAR 240/40R-18 79V
