Builder SMOKED GARAGE
Contact shane@smokedgarage.com.au
Country Australia
Model Bolt XVS950
Style Bobber
Dark Magic

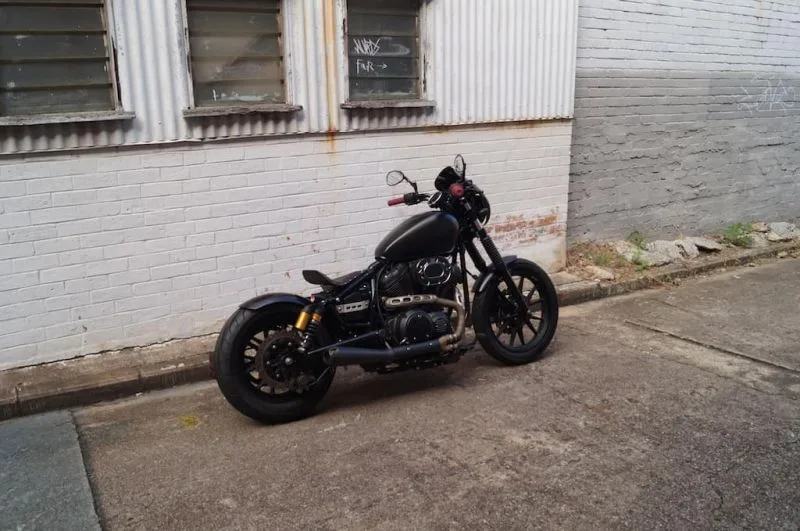

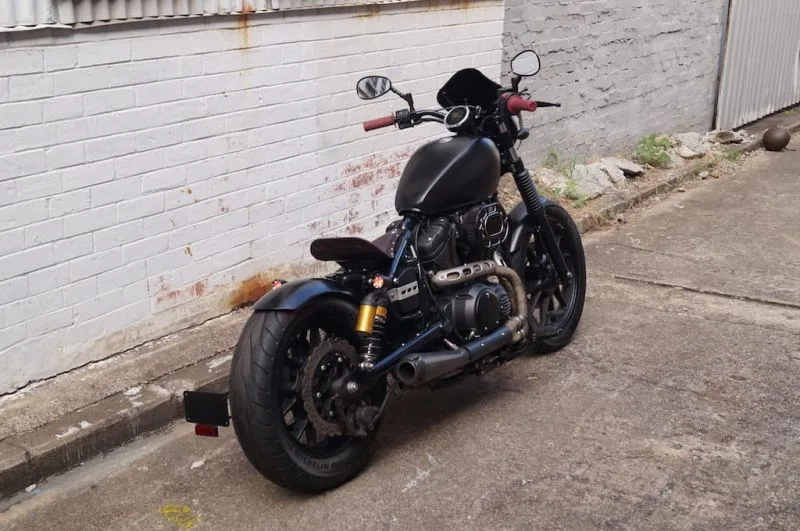

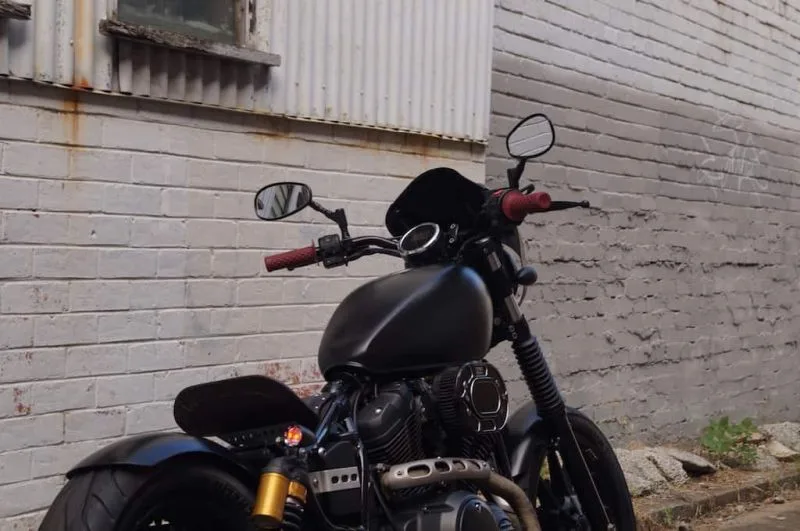

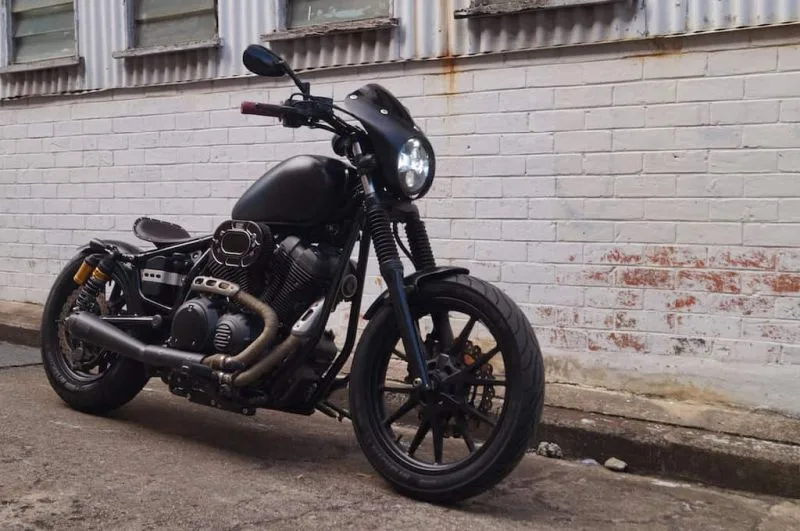

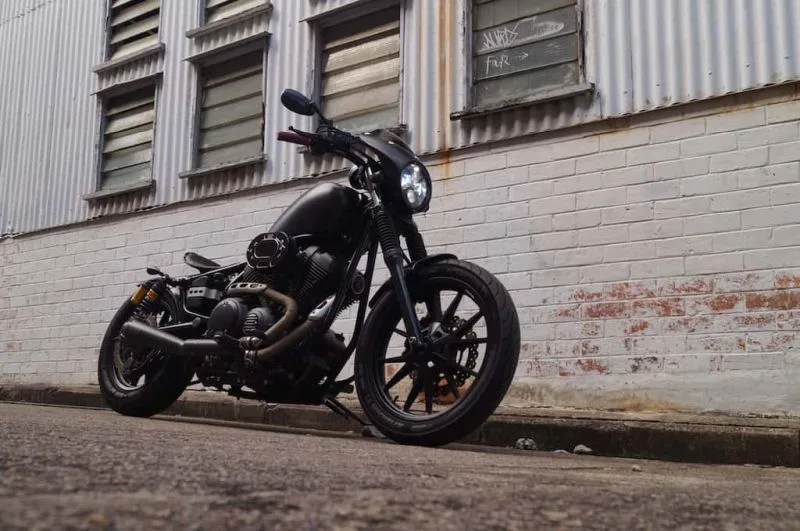

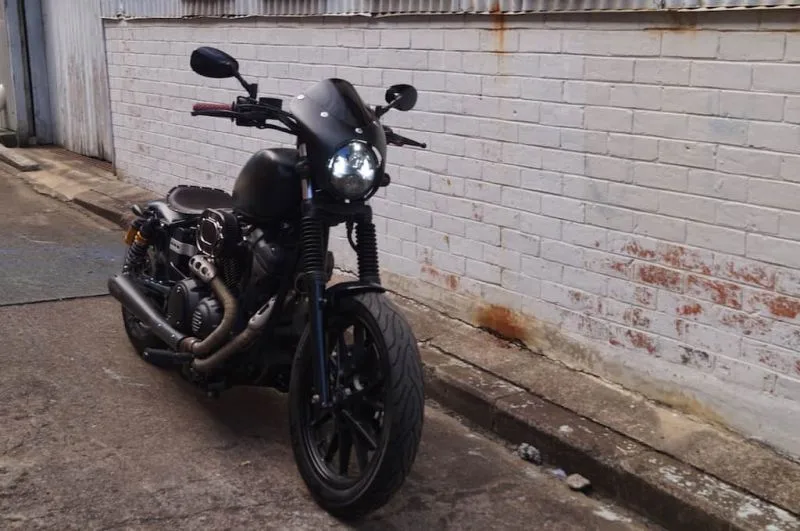

The Yamaha Bolt – the Japanese Sportster. As close to a Harley without being a Harley as you can get, really. Not as big as a 48 (950cc) but still plenty of pull to get you to where you wanna go. And they make for a pretty rad custom too.
As well as some serious cosmetic mods, this blacked out tarmac-tearer is also fitted with a TBR air filter & full exhaust system, as well as a Dynojet Power Commander – she flies, and sounds like an absolute beast. Check out the vid below to hear her growl..
Bolt Bobber parts
- Bobber Conversion
- Custom Front & Rear Fenders
- Piggy back rear shocks
- Custom hand made seat

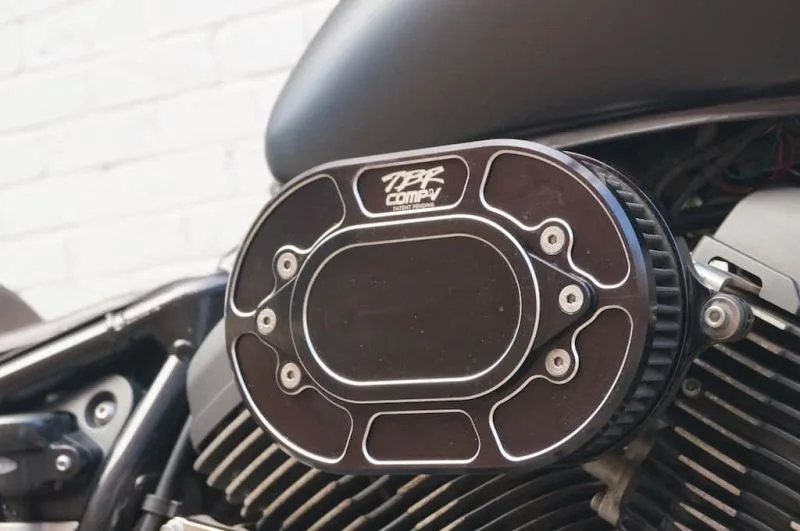

- TBR Air Filter

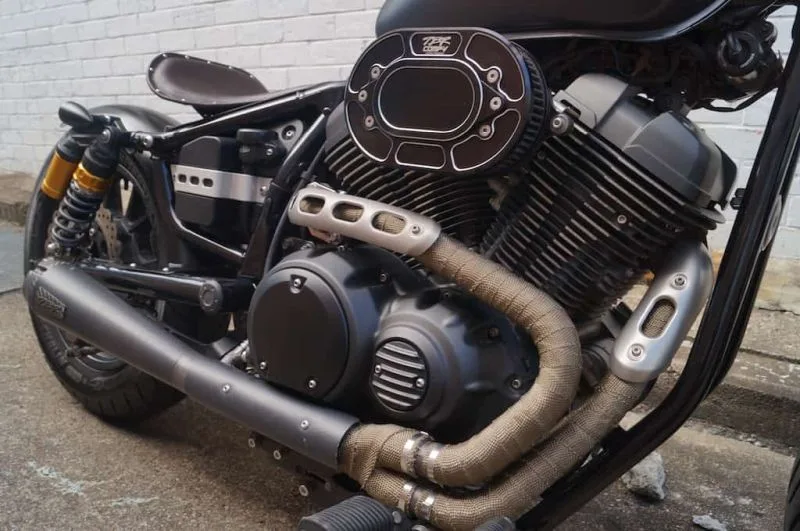

- TBR Exhaust, heat wrapped
- DynoJet Power Commander

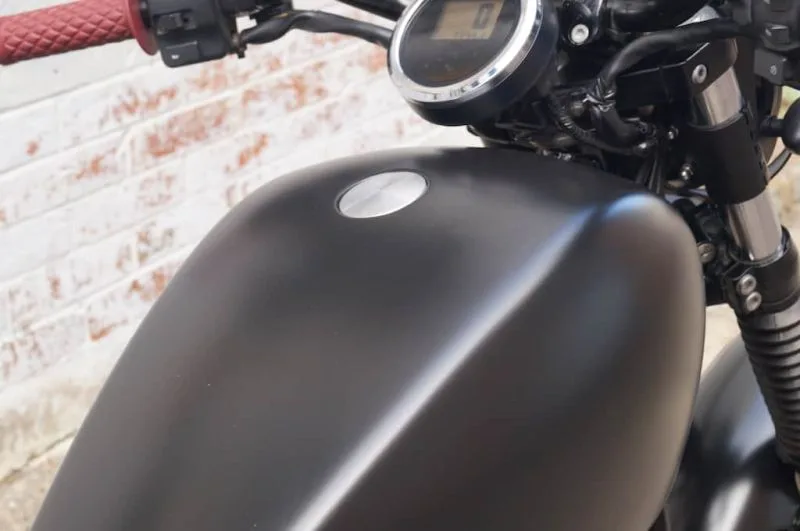

- Modified tank with weld-in pop up cap

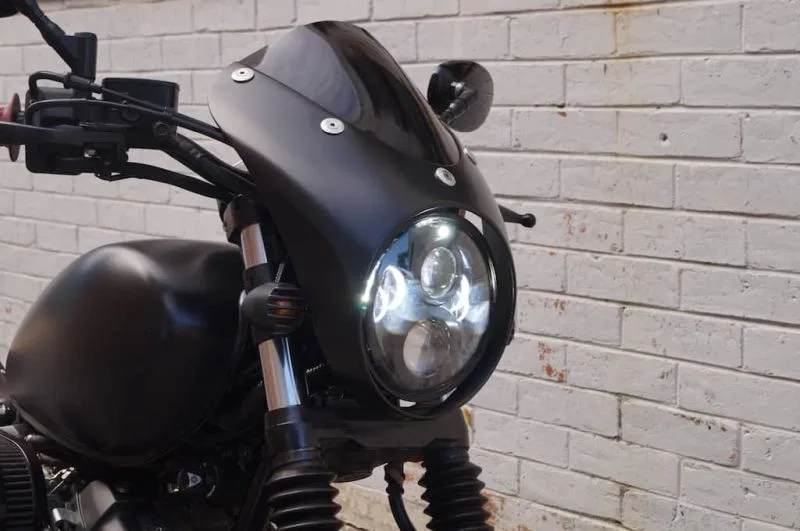

- Bikini Fairing
- LED Headlight by HogLights
- 3-in-1 LED tail/brake/indicator
- Bullet front indicators
- Biltwell Grips
- Fork Gaiters ear Bobber Conversion
Yamaha Bolt 950 specs
ENGINE
Engine Type58-cubic-inch (942cc) air-cooled SOHC V-twin; 4 valves
Bore x Stroke85.0mm x 83.0mm
Compression Ratio9.0:1
Fuel DeliveryFuel injection
IgnitionTCI: Transistor Controlled Ignition
Transmission5-speed; multiplate wet clutch
Final DriveBelt
CHASSIS
Suspension / Front Telescopic fork, 4.7-in travel
Suspension / RearDual piggyback shocks, 2.8-in travel
Brakes / FrontWave-type disc, 298mm
Brakes / RearWave-type disc, 298mm
Tires / Front100/90-19
Tires / Rear150/80-16
DIMENSIONS
L x W x H90.2 in x 37.2 in x 44.1 in
Seat Height27.2 in
Wheelbase61.8 in
Rake (Caster Angle)29.0°
Trail5.1 in
Ground Clearance5.1 in
Fuel Capacity3.4 gal
Fuel Economy**51 mpg
Wet Weight***542 lb
