The VTR Customs team proudly presents the BMW R 18 Conceptbike, aptly named “IRON ANNIE.”

This extraordinary creation marks a significant milestone for the renowned Swiss custom motorcycle builders, as it represents their most ambitious R 18 project to date.

“IRON ANNIE” draws its inspiration from the iconic Junkers 52 Airplane from the 1930s, a symbol of aviation’s golden era.

What makes this masterpiece truly exceptional is the meticulous craftsmanship invested in every detail. Every component of “IRON ANNIE” is expertly handcrafted by the talented artisan known as Cello.

Using a sheet alloy as his canvas, Cello has sculpted a motorcycle that pays homage to the industrial aesthetics of the 1930s while embracing modern engineering and design.

The result is a one-of-a-kind BMW R 18 Conceptbike that seamlessly fuses vintage aviation design with cutting-edge motorcycle technology.

“IRON ANNIE” is a testament to VTR Customs’ commitment to pushing the boundaries of customization and creating truly unique, museum-quality motorcycles that captivate the imagination of enthusiasts worldwide.

La entrada BMW R 18 Conceptbike ‘Iron Annie’ by VTR Customs aparece primero en DARK KUSTOM.

Builder VTR CUSTOMS

Contact [email protected]

Custom painting Freuler

Country Switzerland

Model BMW R 18

Style Bobber

La entrada BMW R18 Bobber ‘Eleonore’ customizing by VTR Customs aparece primero en DARK KUSTOM.

Builder LORD DRAKE CUSTOMS

Country United States · Spain

Model BMW R18

Style Bobber

This BMW R18 “BOBBER STEEL” customized in the Lord Drake Kustoms motorcycle modification workshop in Spain, has been the first R18 that we modified and it will not be the last because we are already working on the customization of two other motorcycles of the same model of the German brand.

The first thing was to remove all the components of this custom BMW R18 just out of the official BMW motorcycle dealer. Once naked, we studied the possibilities and basically the geometry of the chassis and the type of fuel tank makes it clear that this bike can be modified in many ways, but the best style that can be given is that of a Bobber bike.

The bobber style fenders for BMW R18 have been the first thing we have installed (both front and rear). Then we have installed a tracker type handlebar, with new Motogadget risers and indicators and mirrors on the grips.

We have also modified the original exhaust pipe and installed new tailpipes that give this magnificent custom bike the sound it deserves.

The next thing was to manufacture a license plate bracket with side arm for BMW R18 bobber, where we have installed some indicators and led pilot light 3:1 kellerman. Other details to highlight are a radiator cover and adjustable levers for BMW R18 from the Wunderlich brand.

We have manufactured the base and support of the bobber seat for BMW R18; accompanied by an upholstered seat finished in rhombuses or diamonds.

The non-painted finish (in pure metal) of the fuel tank and some parts such as engine covers that we have painted in matt black powder paint.

La entrada BMW R18 ‘Bobber Steel’ customized in the Lord Drake Kustoms aparece primero en DARK KUSTOM.

VTR CUSTOMS, located in Schmerikon, Switzerland, can be contacted via email at [email protected] or by phone at +4155 282 15 16

Custom painting Freuler

La entrada BMW R18 B ‘Track Bagger 33’ by VTR Customs aparece primero en DARK KUSTOM.

Builder UNIQUE CUSTOM CYCLES

Contact [email protected]

Country Sweden

Model BMW R 18

Style Cruise

Photos Jenny Jurnelius [email protected]

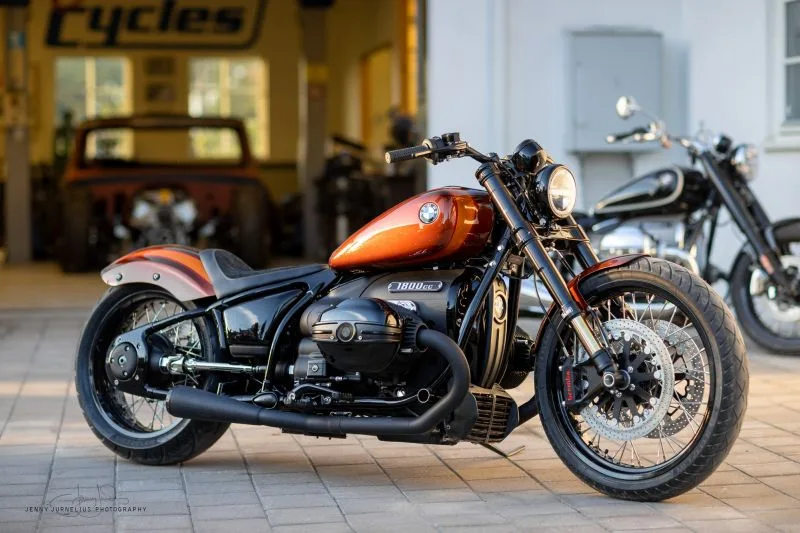

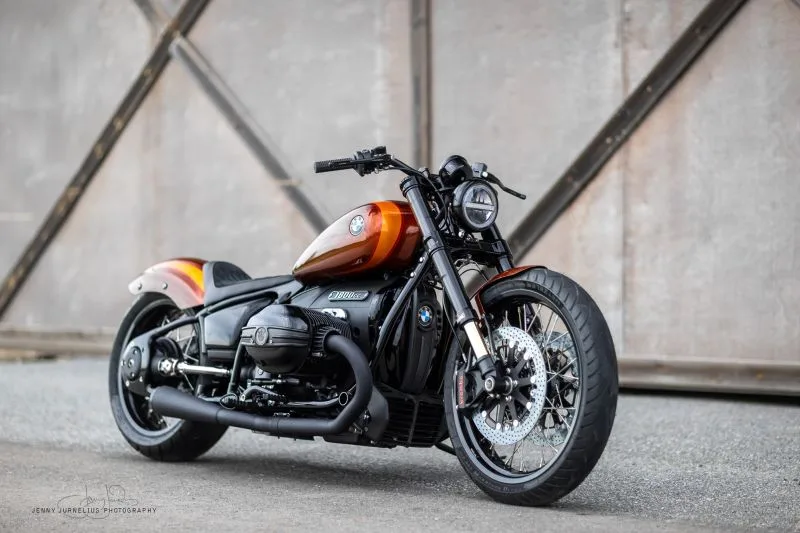

‘Nordic Style’ parts

Body

There are some parts rearranged just a tad, just so that everything looks a bit different and tighter. The oil cooler got a slightly downwards angle to make it less significant. The rear fender was cut and slimmed and the sub frame was reworked to fit the flow, as well as the rear suspension was changed to an Öhlins damper to get the lower ride height.

Rim dimensions

Instead of the original 16” rear wheel and 19” in front, UCC went for 18” rear and 21” front.

Suspension and brakes

The inverted Öhlins fork looks great, and the original 300mm-disc brakes got changed to 340mm ISR discs with Brembo calipers. Not because it is needed, but simply because of the stance. The rear brake is still a 300mm disc and the original 4-piston caliper.

Headlights and handlebars

“The head light is a 5 ¾” instead of the 7” that is original”, says Ronna, who also made the handle bars.

Exhaust

The exhaust system is UCCs own design and the saddle was custom made by Silver Machine in Holland.

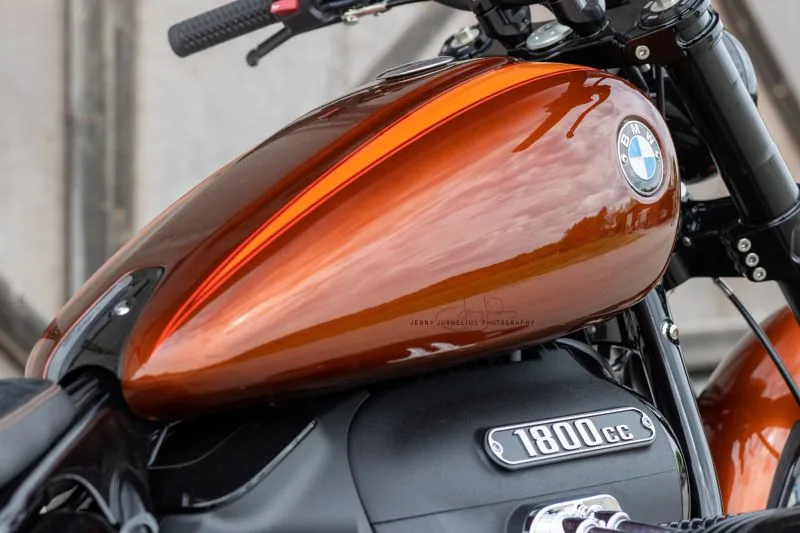

Paint

After painting the engine black, master painter Håkan Lindberg took care of the burnt orange you see on the tank.

La entrada BMW R 18 ‘Nordic Style’ by Unique Custom Cycles aparece primero en DARK KUSTOM.

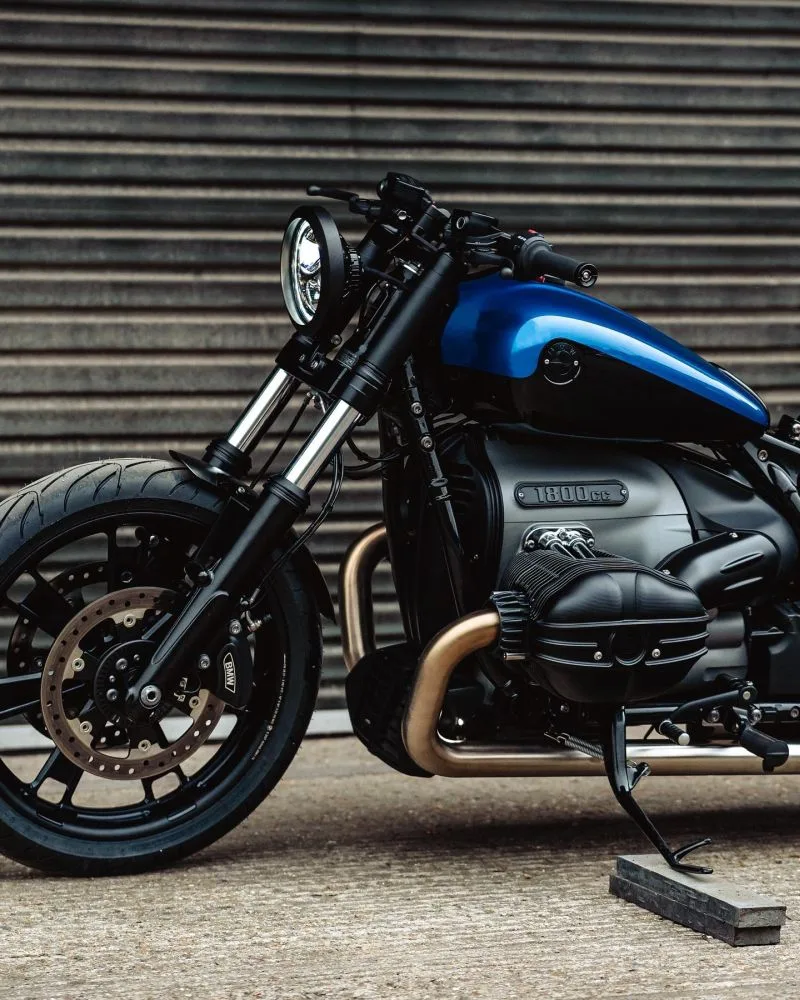

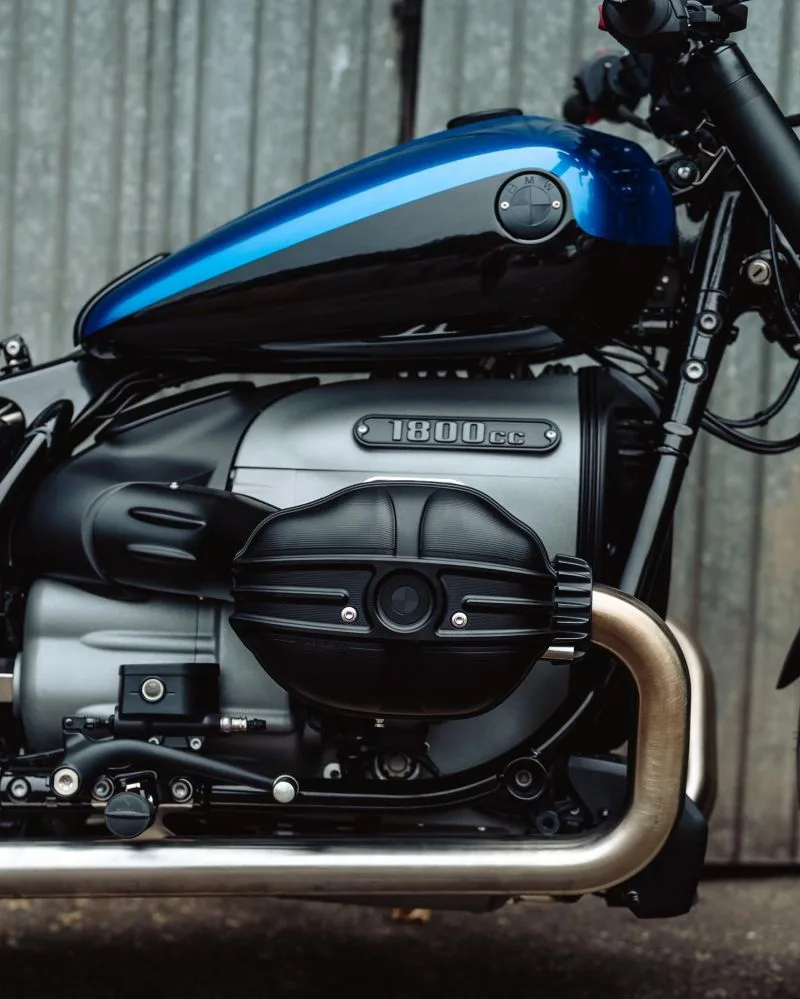

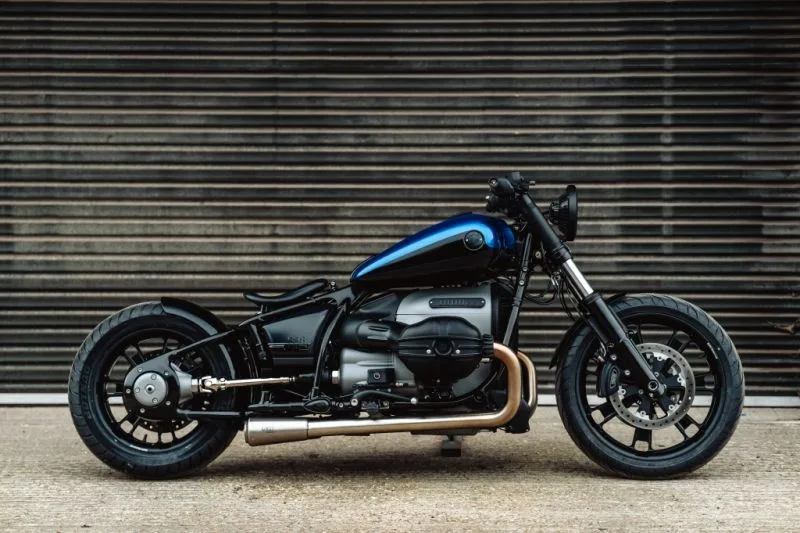

Builder PIER CITY CYCLES

Contact [email protected]

Country United Kingdom

Model BMW R 18

Style Bobber

BMW R 18 specs

Engine Specs

Type Air/Water-Cooled 2-Cylinder 4-Stroke Boxer
Displacement 1802 Cm3
Bore X Stroke 4.2X3.9 In Or 107 Mm
Compression Ratio 9.6:1
Horsepower 91/4750 Kw(Hp)/Rpm
Torque 117/3000 Lb-Ft/Rpm Or 159/3000 Nm/Rpm
Fuel System –

Transmission Specs

Gearbox Constant-Mesh 6-Speed
Clutch Hydraulically Activated Single-Disc Dry Clutch
Primary Drive –
Final Drive Shaft

Chassis Specs

Frame Double-Loop Steel Tube Frame
Front Suspension Telescopic Fork
Rear Suspension Cantilever
Front Brake Double Discs 300 Mm
Rear Brake Single Disc 300 Mm

Dimension Specs

Overall Length 96.1 In Or 2441 Mm
Overall Width 38 In Or 965 Mm
Seat Height 27.2 In Or 691 Mm
Weelbase –
Ground Clearance –
Weight 761 Lbs Or 345 Kg
Fuel Capacity 4.2 Gallons Or 15.9 L

Tyres Specs

Front 120/70 R 19
Rear 180/65 B 16

La entrada BMW Motorrad R 18 bobber build by Pier City Cycles aparece primero en DARK KUSTOM.
